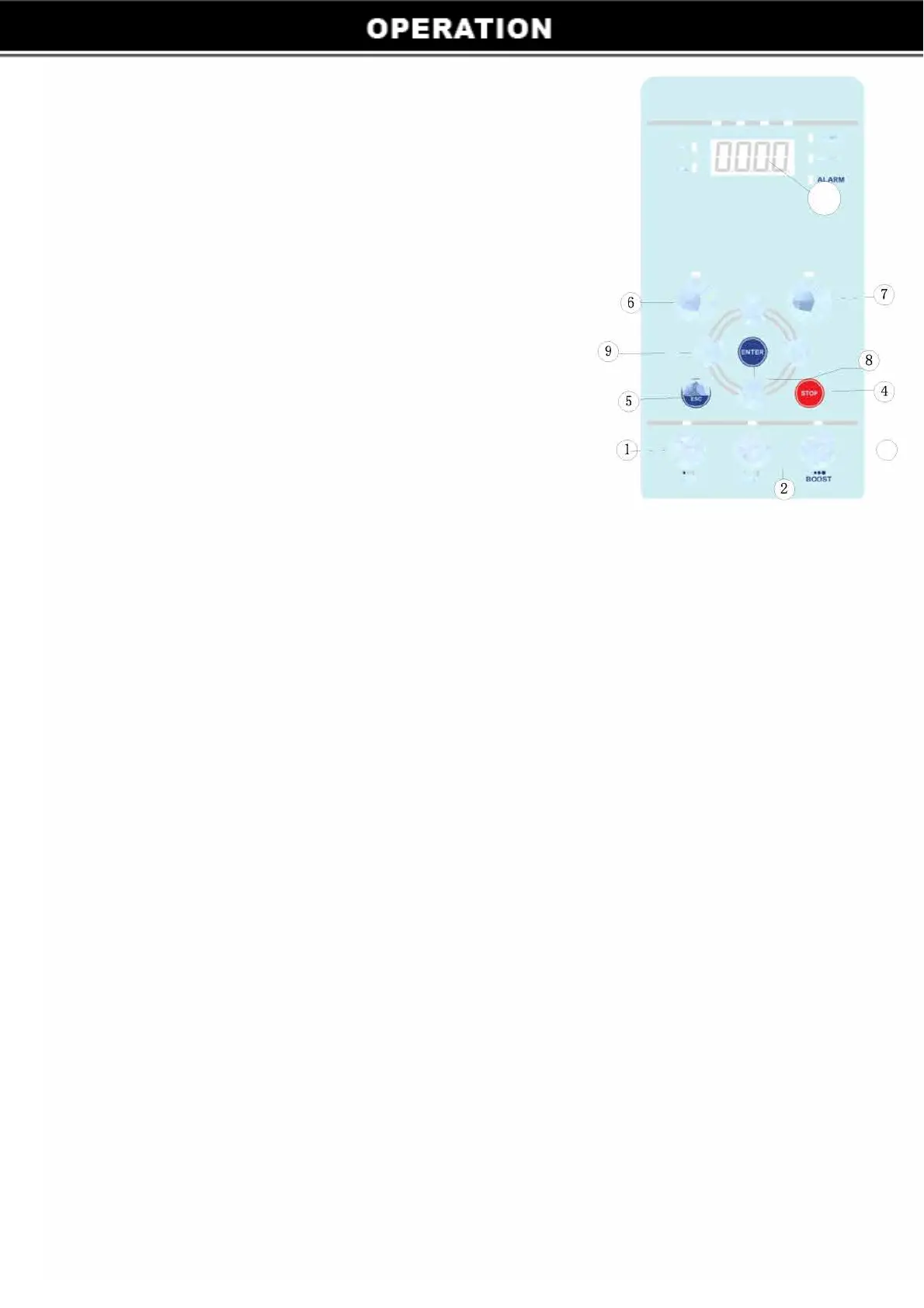

Introduction of LED Control Board
1 ECO: Press to select and run on default speed 1500PRM, can
adjust from 1000 to 2400RPM
2
CLEAN: Press to select and run on default speed 2400PRM,
can adjust from 2400 to 2850RPM
3
BOOST: Press to select and run on default speed 3250PRM,
can adjust from 2850 to 3450RPM
4
STOP: Press to stop the pump. The screen displays the
present time
5 MENU: Accesses the pump menu if the pump is stopped
6 MODE 1: To run the programmed 16 hours clean cycle.
7 MODE 2: To run the programmed 24 hours clean cycle.
8 ENTER: Save and exit the menu.
ARROW BUTTONS:
PM
SPD
HOUR
10
- 0
e-3
ECO
cLAH
UP ARROW: Move up one level in the menu or to increase a digit when changing a setting
DOWN ARROW: Move one level down in the menu or to decrease a digit when changing a setting.
LEFT ARROW: Moves the cursor left one digit when changing a setting
RIGHT ARROW: Moves the cursor right one digit when changing a setting
LED Screen: Composed of four digital tubes. Display current time when in standby.
Switch current speed and time back and forth when in running.
AM/PM: Designed for 12-hour system. If pump run on 0:00-11:59, AM light on; if pump run on 12:00 -
23:59, PM light on.
MODE l and MODE 2 have 4 stages, Sl/S2/S3/S4 is the speed for each stage. If the light is on, the pump
is run on first stage, if the light twinkles, the time for the stage is not arrive yet or the pump is not running.
If SPEED light is on, the screen will display the current RPM
If HOUR light twinkles, you are ready to set the running time for each stage.
If ALARM light is on, an alarm condition exists.
Press MODE 1: the light will be lit and one light of S 1/S2/S3/S4 will be on or twinkle. (Light twinkle
mea ns the current time is not during the set running period), and one of AM or PM light will be on.
Pr ess MODE 2: the light will be lit and the one light of S 1/S2/S3/S4 will be on or twinkle. (Light twinkle
me ans the current time is not during the set running period), and one of AM or PM light will on.
When the pump is in standby, switch MODE 1 and MODE2, the corresponding light will be lit, and the
p ump run accordingly.
