XtremepowerUS 99782 - MAINTENANCE; Mudguard and Board Assembly; Front Wheel and Rear Shock Assembly

MAINTENANCE MAINTENANCE
7

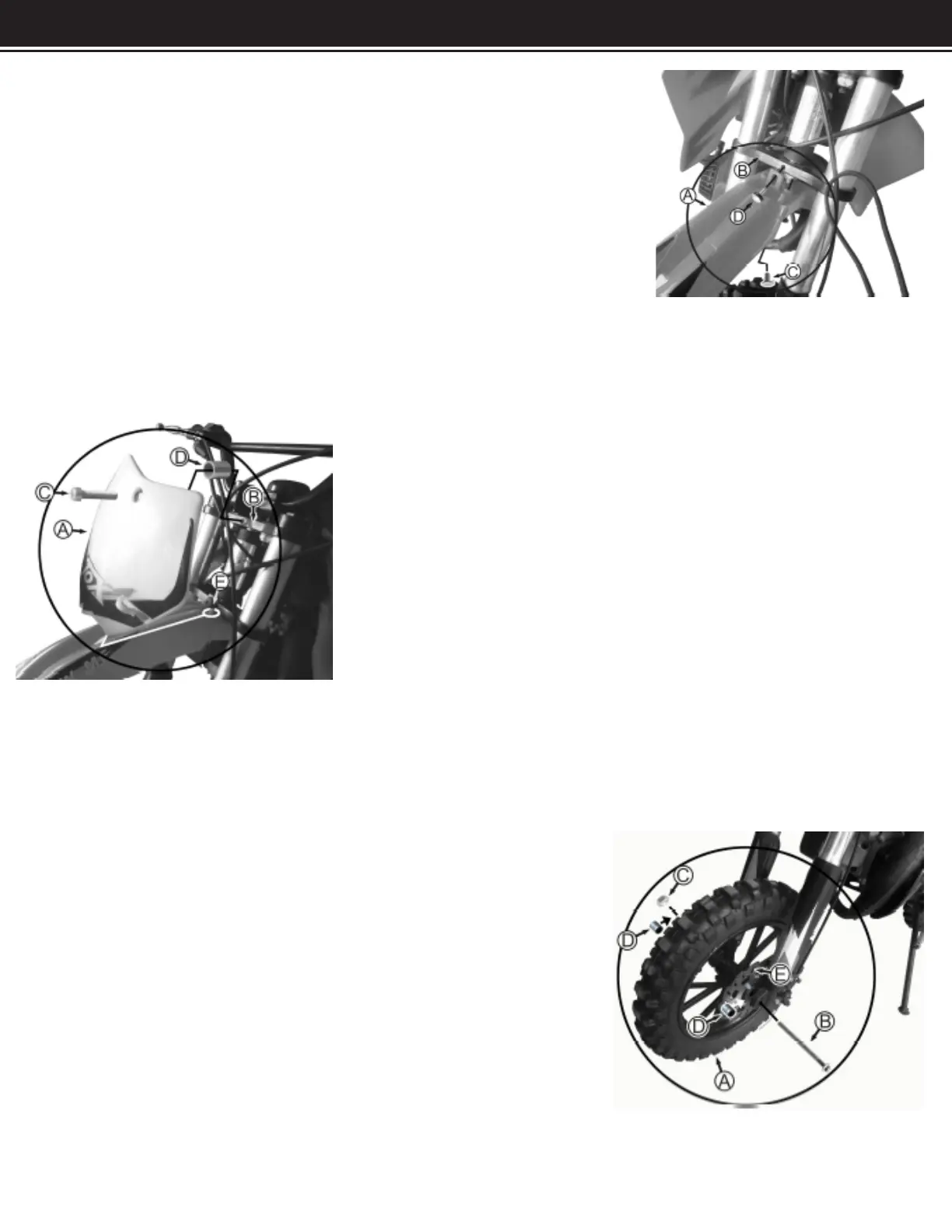

1. mount the bolt (D) through the mudguard xing bracket into the
splintage (B) and tighten it.
2. mount the bolt (C) bottom-up through the mudguard rear hole into the
splintage (B) and tighten it.
A. Mudguard
B. Down splintage
C. Bolt M6X16
D: Bolt M6 x16
1. Fix the number board (A) into the location pillar of mudguard (E)
2. Install the bolt (C), bush (D) into the upper splintage (B) and tighten
the bolt with 10mm socket spanner.
A. Number board
B.Upper splintage
C. Bolt M6X25
D. Bush 8X1.0X15
E. Location pillar
MUDGAURD ASSEMBLY
BOARD ASSEMBLY
1. put the wheel (A) on the right position to place the disc (E) between
the brake caliper pad.
2. mount the axle (B) through the left fork, bush (D), wheel, bush (D)
and right fork in sequence, and then x the nut (C) and tighten it.
A. Wheel
B. Wheel axle M12X160
C. Nut M12
D. Bush 16X1.2X13 2pcs
E. Brake disc
ASSEMBLY FRONT WHEEL AND REAR SHOCK ABSORBER
