XTZ SUB 12.17 - Power Indicator LED; Master Power Switch

14

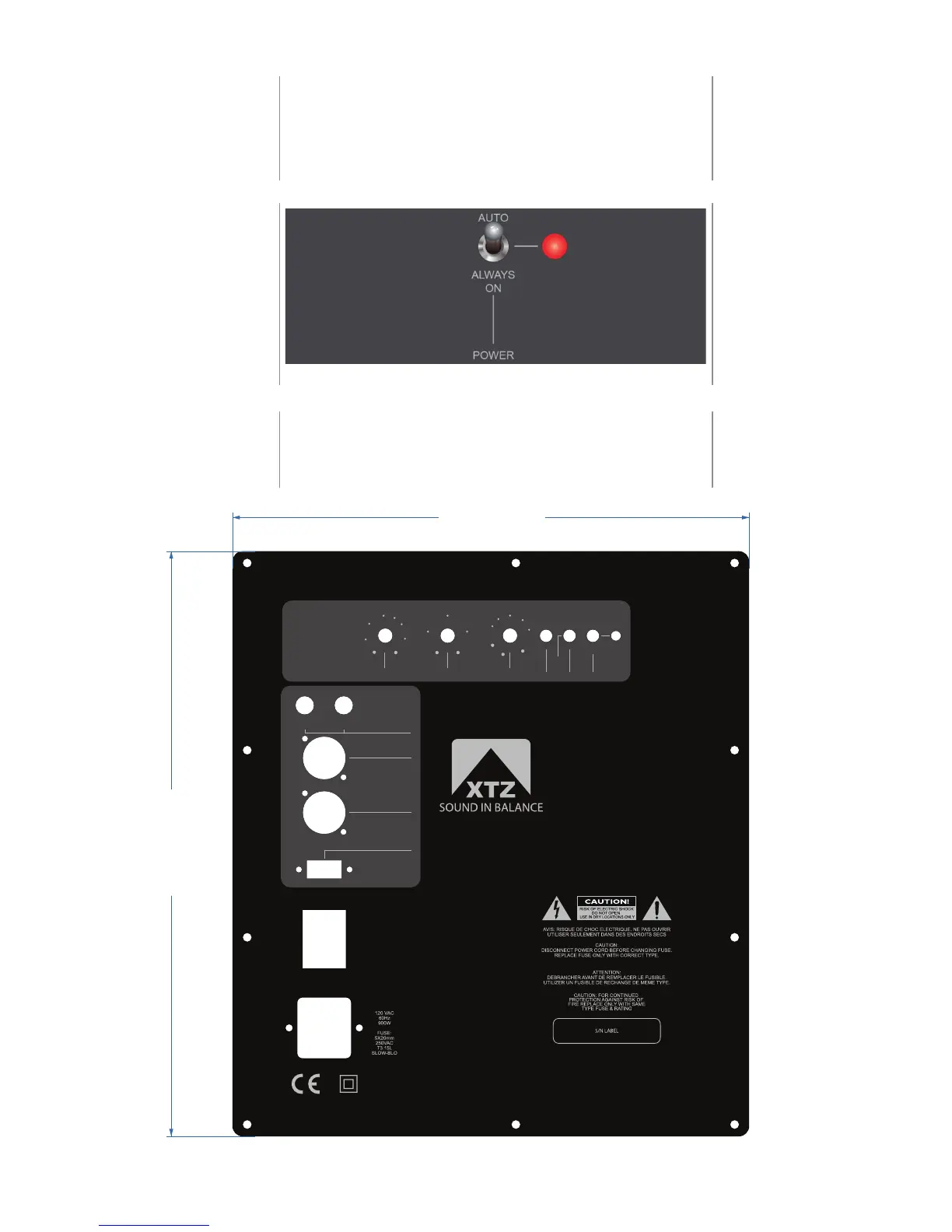

Power Indicator
LED
Function LED Color
ON GREEN The unit is turned on and working normal
OFF None LED rst turns red then off after shutdown is complete
STANDBY RED Waiting for signal to power on
MUTE/PROTECT RED During turn on and turn off temporary mute
Master Power
Switch
The master power switch is located on the lower half of the unit. This rocker style
switch is the main on/off for the unit. This switch should be set to position 1 (up)
for on, and 0 (down) for off. If the unit is to be left unused for an extended period
of time (e.g. when you are away on vacation), the master power switch should be
turned off, or the main power cord disconnected.
CROSSOVER
60
70
80
90
140
50
40
160 Hz
-90°
0° -180°
0
-3
-6
+3
+6
MAX
REF
ON
OFF
REF
MIN
EQ 2
EQ 1
AUTO
LOW PASS EQ
POWER
ALWAYS
ON
PHASE VOLUME
LFE(L) & LINE IN
XLR BALANCED
PASS THROUGH
PROGRAM PORT
CONTROLSINPUTS
RL
265 mm
300 mm
AC-
Inlet
POWER
SWITCH
