RECEIVER OUTPUT MODE
S MODE M MODE
L
R
L
R
T1
T2
T1
T2

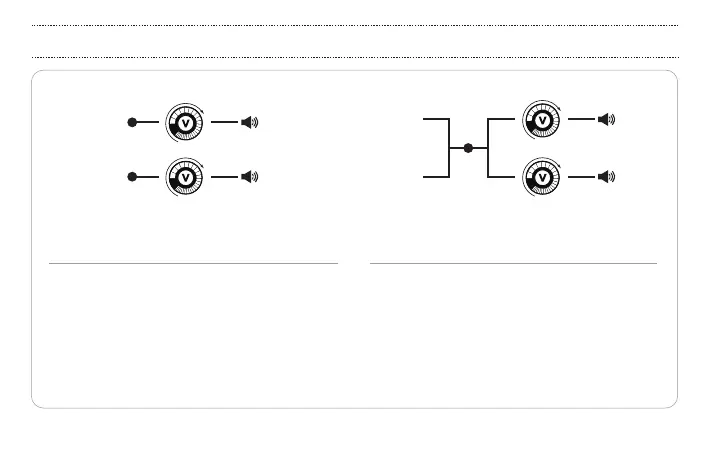

The S (stereo) mode combines two audio inputs by
panning them all the way to the left and right when
they are sent to the camera's mic input. The T1 signal
will be sent to the camera from the receiver's left output
channel. Audio source T2 will send audio on the right
channel. Adjusting the T1 and T2 output volumes will
change their respective output volumes (L/R) indepen-
dently. This method allows the signals to be balanced/-
mixed as desired during the editing/mixing stage.
M (mono) mode mixes the T1 and T2 audio signals and
sends the same audio signal to L and R output channel.
You can set the left and right output volumes separately,
but you can’t change the level blend once the video is
recorded. However, although the L and R signals are
identical, the audio can be panned so that one side is
louder and the other is a quieter (-6 dB, for example)
“safe” option.
