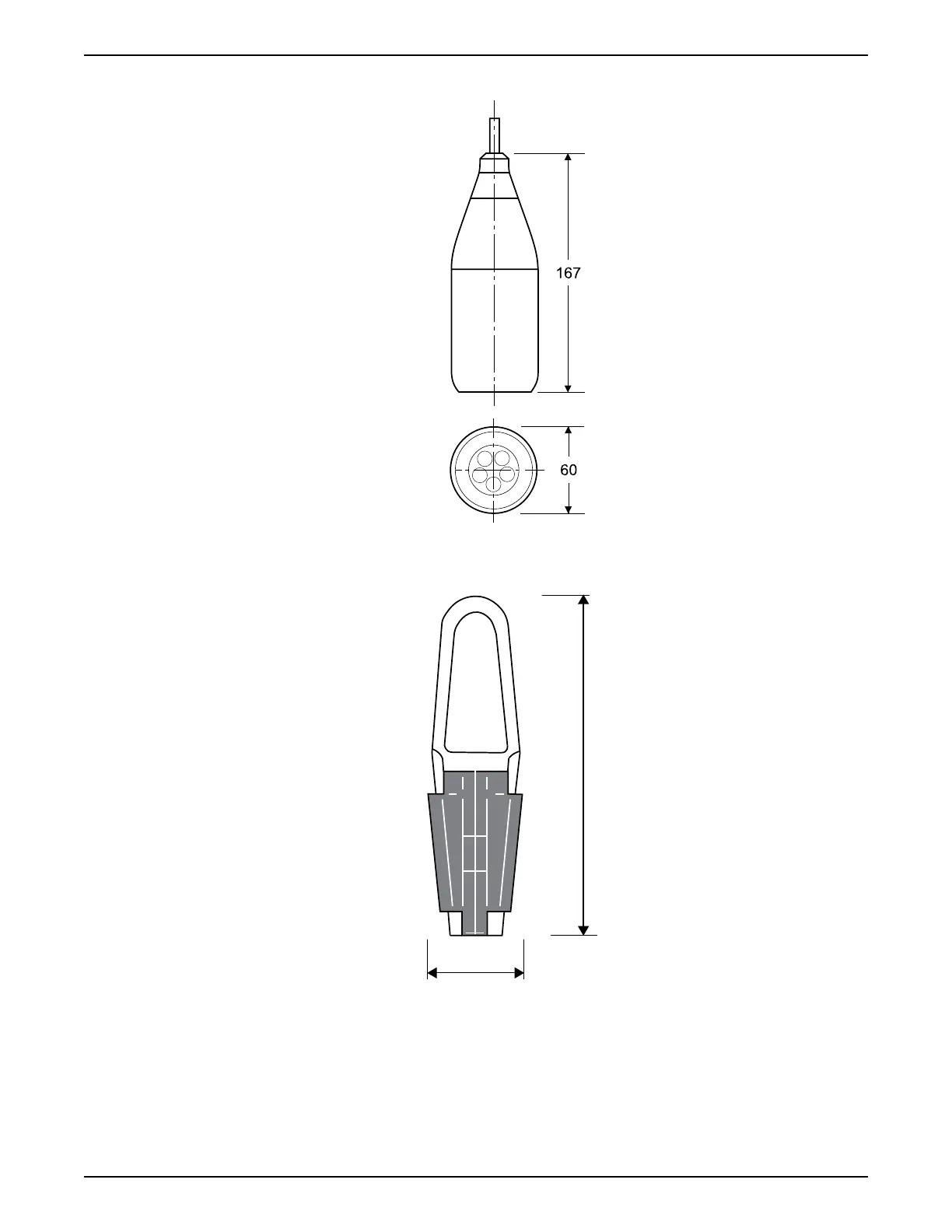

Sensor body dimensions
WS007036A
mm (6.57 in)
mm (2.36 in)
Cable fitting dimensions
WS007015A
60 mm
(2.36 in)
236 mm (9.29 in)
The image shows the dedicated cable fitting for the free-hanging sensor unit.
2 Product Description
6 LTU601 Installation and Operation Manual
