• Bowl lls when toilet not
in use
• Waste water re-appears in
bowl
• Bowl does not empty & dif-
cult to push handle down
• Bowl does not empty and
difcult to pull handle up
• Bowl does not empty al-
though handle is easy to
push & pull
• Water does not come in
and handle springs up if
pushed down
• Water does not come in
although handle is easy to
push and pull
• Flush water is slow to ap-
pear during pumping
• Shut Seacocks.
• Fit Vented Loops.
• Check bottom valve gasket (16)
and joker valve (33).
• Open outlet seacock.
• Fully shut ush control lever (23).
• Check joker valve (33), discharge
hose or outlet seacock for blockage.
• Remove pump and check for block-
age.
• Check piston o-ring (30), bottom
valve gasket (16) & joker valve
(33).
• Open inlet seacock.
• Fully open ush control lever (23)
• Open ush control lever (23)
• Check top valve gasket (21) and
piston o-ring (30)
• Check inlet hose connections are
airtight
• Shorten inlet hose from main sea-
cock
• Do not t a vented loop between in-
let seacock & pump
• Fit between pump & bowl
• Fit non-return valve (29295-1011)
next to inlet seacock
Trouble Shooting

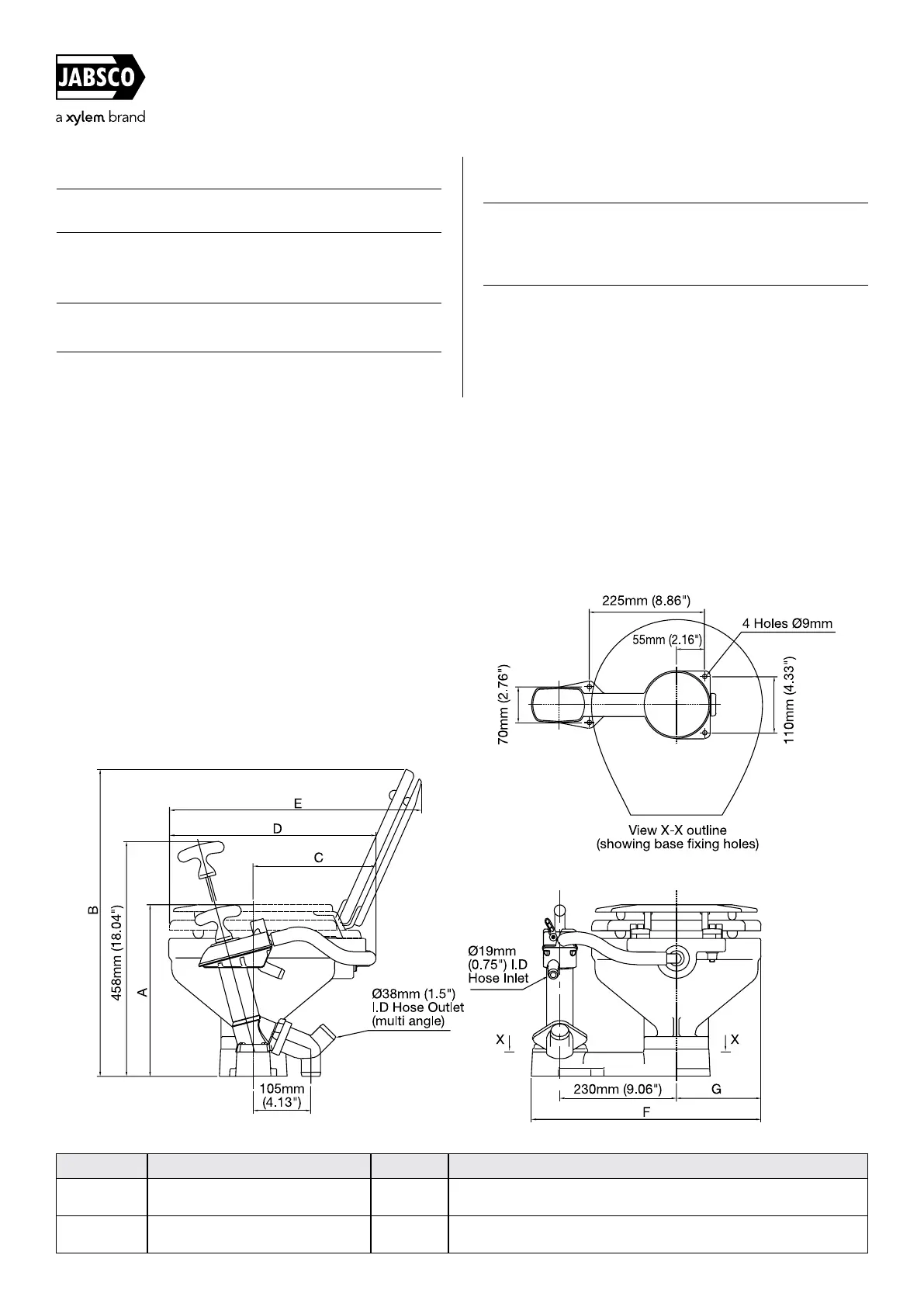

Dimensions and Weights
All dimensions in millimetres with inch equivalents in brackets.
Model No. Description Net Weight A B C D E F G
29090-5000 MANUAL TOILET COMPACT BOWL 9.5kg
(21lb)
330
(13)
618
(24.3)
247
(9.72)
425
(16.23)
485
(19.09)
455
(17.91)
168
(6.61)
mm
(ins)
29120-5000 MANUAL TOILET REGULAR BOWL 10.9kg
(24lb)
345
(13.58)
700
(27.56)
280
(11.02)
485
(19.09)
580
(22.83)
470
(18.50)
183
(7.20)
mm
(ins)
