Xylem JABSCO Twist'N'Lock COMPACT 29090-3000 User Manual

DOC632/12
Xylem Water Solutions UK Ltd
Bingley Road • Hoddesdon • Hertfordshire • EN11 0BU • UK
Telephone: +44 (0)1462 480380 Fax: +44 (0)1462 482422
mail@cleghorn.co.uk www.jabscoshop.com

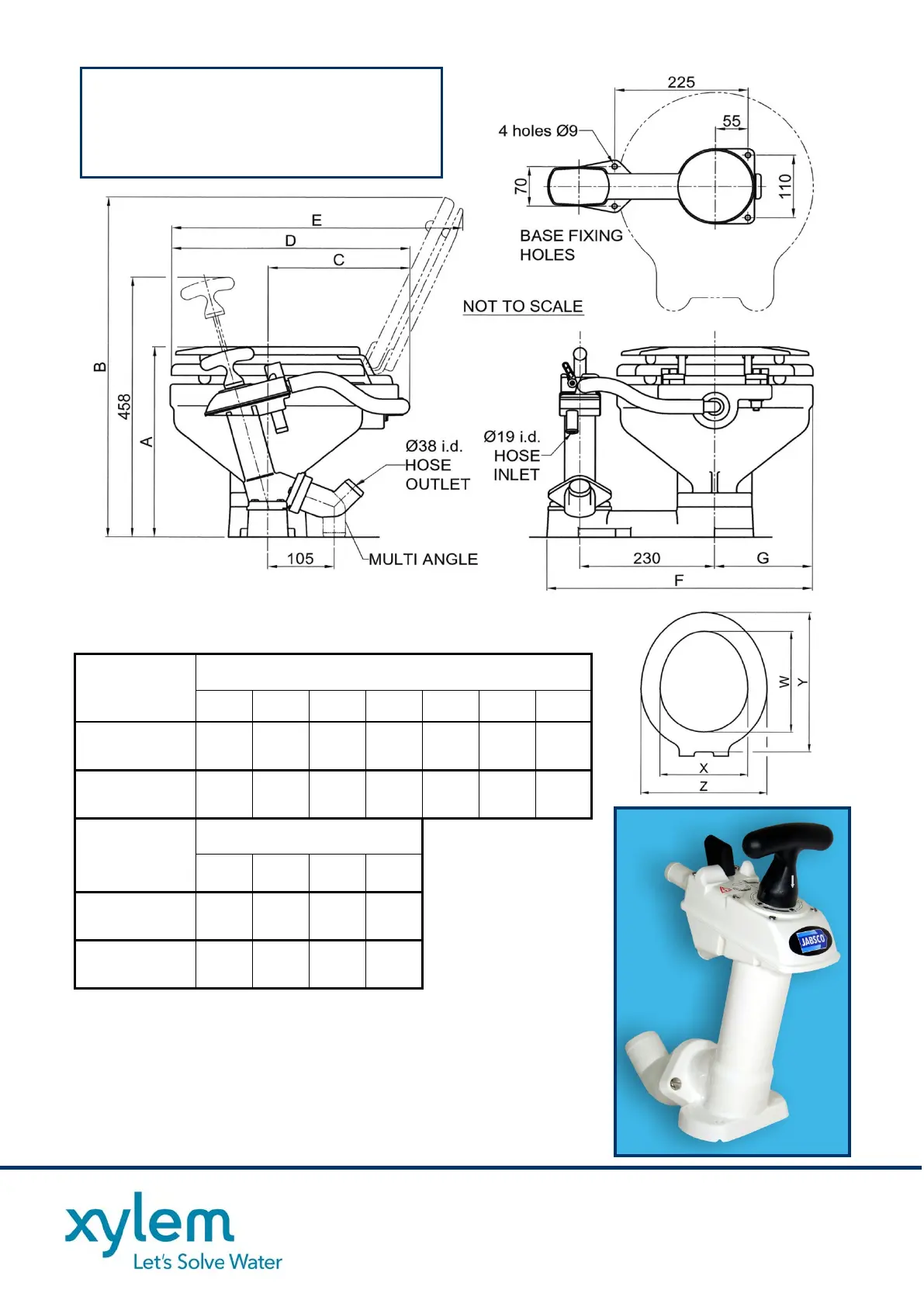

MODEL
TOILET
A B C D E F G
29090-3000
COMPACT
335 615 247 425 485 450 165
29120-3000
REGULAR
345 700 280 490 580 465 180
Approximate
dimensions in
mm
SEAT
schematic only
not to scale
W X Y Z
29090-3000
COMPACT
230 215 330 330
29120-3000
REGULAR
260 210 390 365
The Jabsco ‘Twist ‘n’ Lock’ design uses a remodelled piston in
the pump-out assembly. At the end of normal pumping out, at
the bottom of the pump stroke, the user simply turns the
handle through 90º and that locks the piston down onto the
base outlet valve, keeping it securely shut. Turning the handle
to the normal operating position opens the lock again.
COMPACT BOWL
29090-3000 Twist ‘N’ Lock Manual Toilet
REGULAR BOWL
29120-3000
Twist ‘N’ Lock Manual Toilet
29040-3000 Pump assembly
