Xylem McDonnell & Miller Uni-Match WF2 Series User Manual

6
PS-802-24
LWCO
HNB
UNI-MATCH
WATER FEEDER
WF2-U-24
Factory
Jumper
Bar
NHCWB
WNH
• Connect wire from terminal 'N' of water feeder
to terminal 'N' on LWCO.
• Connect wire from terminal 'H' of water feeder
to terminal 'H' on LWCO.
• Connect wire from terminal 'W' of water feeder
to terminal 'W' on LWCO.

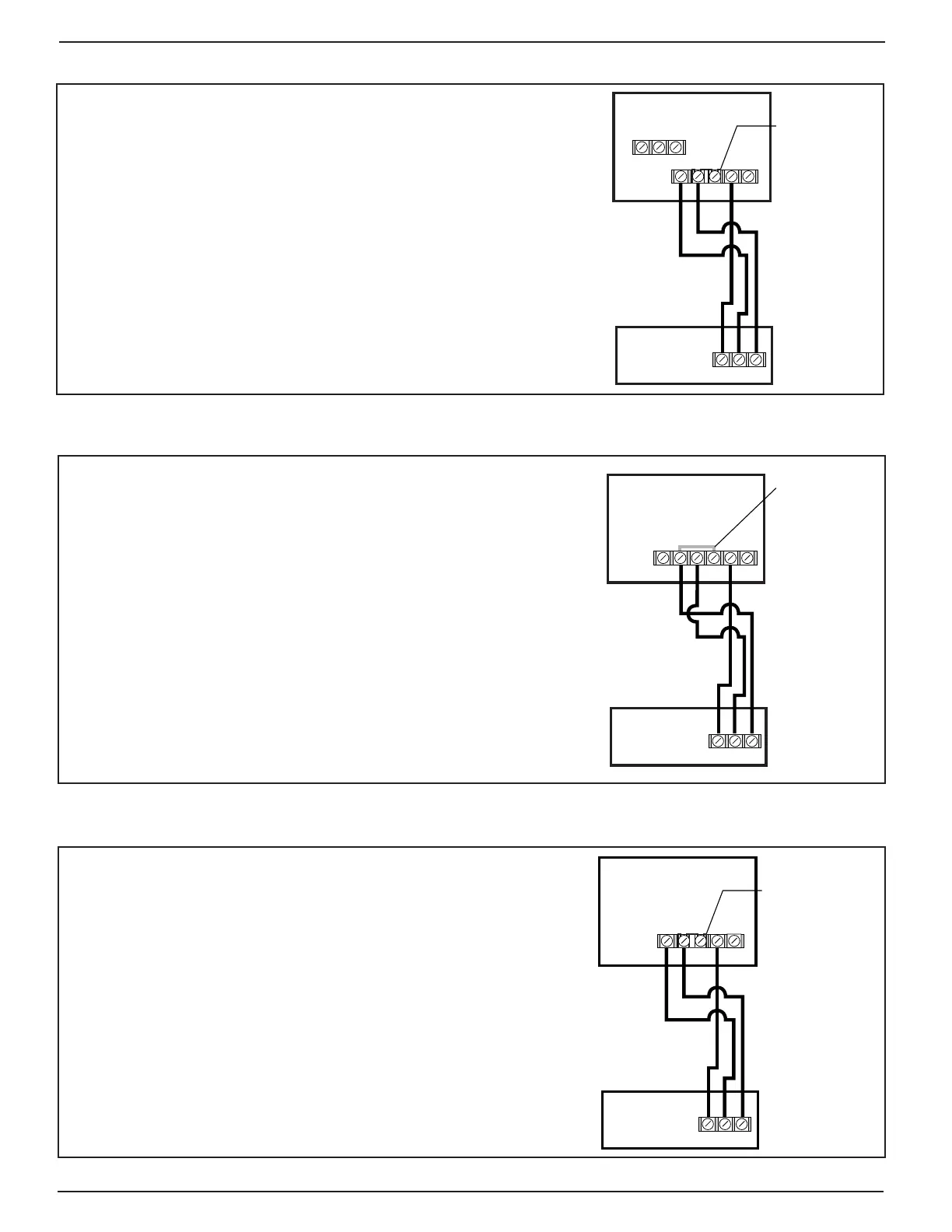

Diagram 1 WF2-U-24 / PS-802-LWCO
WNH
PS-801-120
LWCO
UNI-MATCH
WATER FEEDER
WF2-U-120
Field or
Factory
Jumper Wire
P 12345
• Connect wire from terminal 'N' of water feeder
to terminal '2' on LWCO.
• Connect wire from terminal 'H' of water feeder
to terminal '1' on LWCO.
• Connect wire from terminal 'W' of water feeder
to terminal '4' on LWCO.
Diagram 2 WF2-U-120 / PS-801-LWCO with numbered terminals
PS-801-120
LWCO
UNI-MATCH
WATER FEEDER
WF2-U-120
NHCWB
WNH
Factory
Jumper
Bar
• Connect wire from terminal 'N' of water feeder
to terminal 'N' on LWCO.
• Connect wire from terminal 'H' of water feeder
to terminal 'H' on LWCO.
• Connect wire from terminal 'W' of water feeder
to terminal 'W' on LWCO.
Diagram 3 WF2-U-120 / PS-801-LWCO with lettered terminals
