Xytronic LF-853D User Manual

6

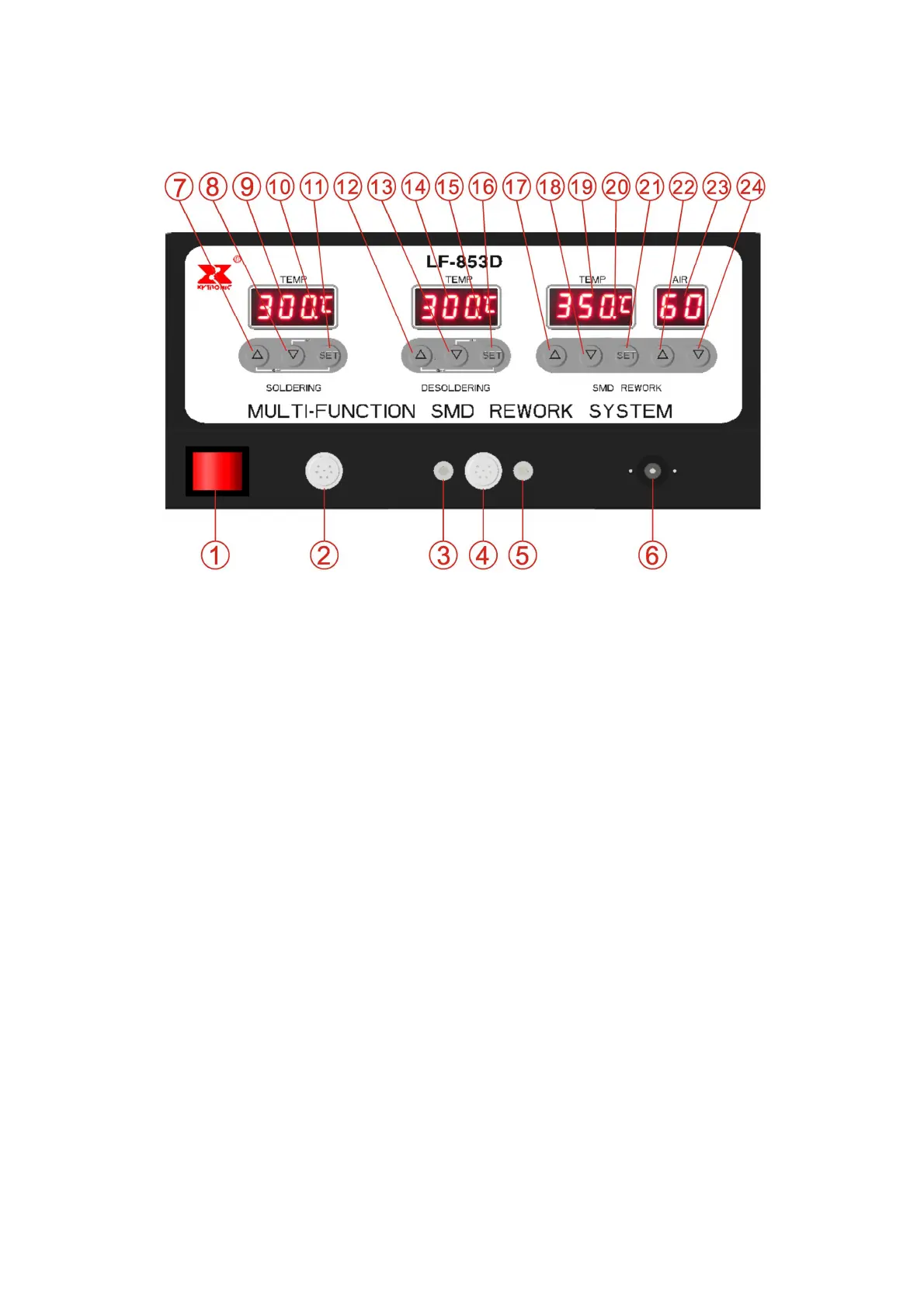

BRIEF INTRODUCTION OF PANEL FUNCTIONS:
Front panel
○
1 Main power switch
○
2 SIA /TWZ socket
○
3 HAP: Hot air fitting
○
4 DIA: Desolder/HAP wand socket
○
5 VAC: Desoldering vacuum
○
6 Hot air pencil inlet
Soldering Function Part
○
7 “▲”: Temperature increasing (UP)
○
8 “▼”: Temperature decreasing (Down)
○
9 Temp Display
○
10 Heat indicating light
○
11 “SET”: Function key
Desoldering Function Part
○
12 “▲”: Temperature increasing (UP)
○
13 “▼”: Temperature decreasing(Down)
○
14 Temp Display
○
15 Heat indicating light
○
16 “SET”: Function key
Hot Air Function Part
○
17 “▲”: Temperature increasing (UP)
○
18 “▼”: Temperature decreasing(Down)
○
19 Temp Display
○
20 Heat indicating light
○
21 “SET”: Function key
○
22 “▲”: Hot air blow (UP)
○
23 Air blow display
○
24 “▼”: Hot air blow (DOWN)

Xytronic LF-853D Specifications

General

Brand	Xytronic
Model	LF-853D
Category	Soldering Gun
Language	English
