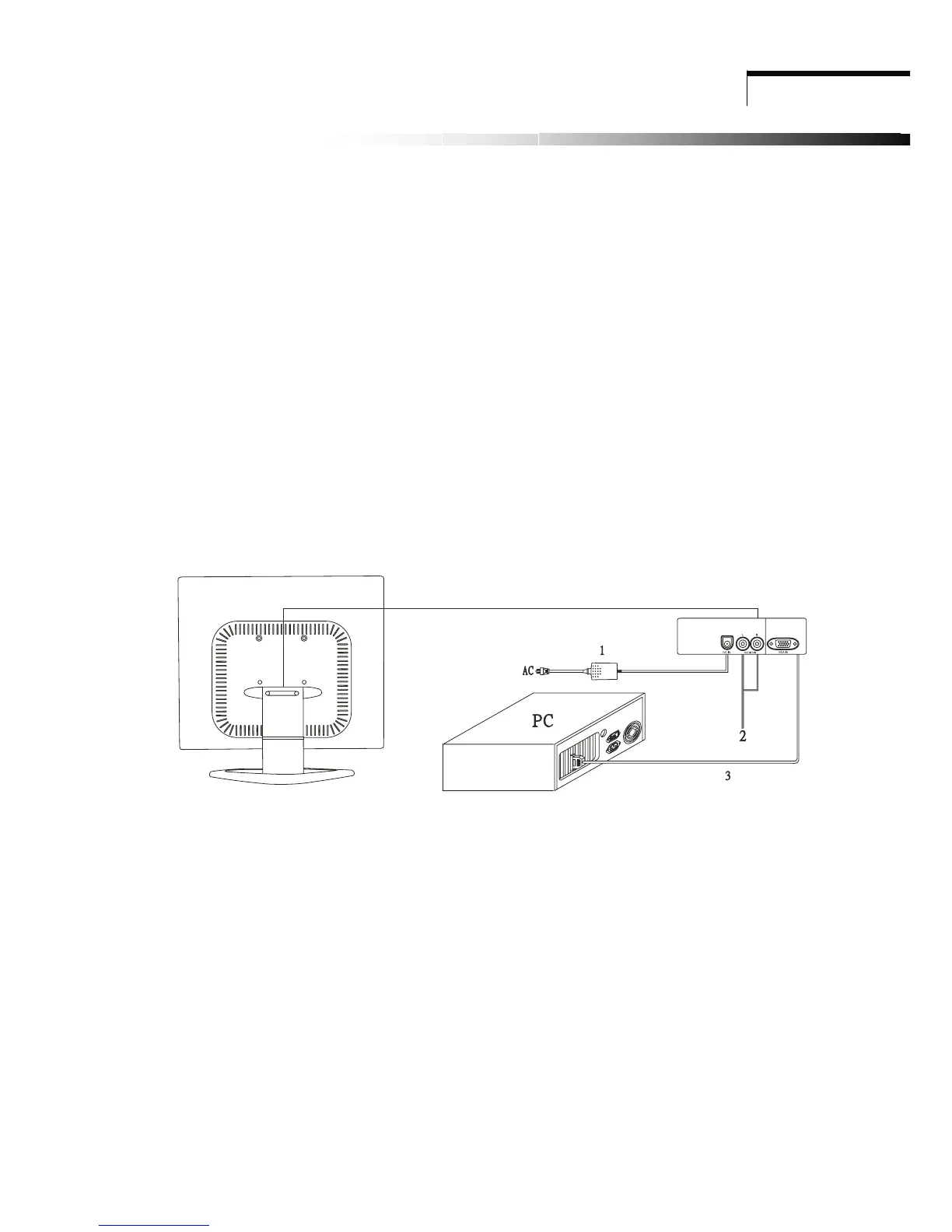

Connecting the monitor to the computer and the power supply
2
Installation
Chapter 2
Installation
1 Turn off your computer and unplug its power cable.
2 Connect the power cable for your monitor to the DC adapter and connect the adapter to
the DC power jack on the back of your monitor.
NOTE : You must use the supplied power adapter.
3 Connect the AUDIO IN jack to RCA audio in for DVD or VTR.
5 Plug the computer and monitor power cables into a nearby outlet.
6 Turn your computer and monitor on, if your monitor display an image, you have
successfully installed the monitor. If the monitor does not display an image, check all the
connections and report steps 1-5 above.
computer.
2.1 Connect your monitor to the computer
4 Connect the D-Sub 15Pin signal cable to the video port on the back of your
