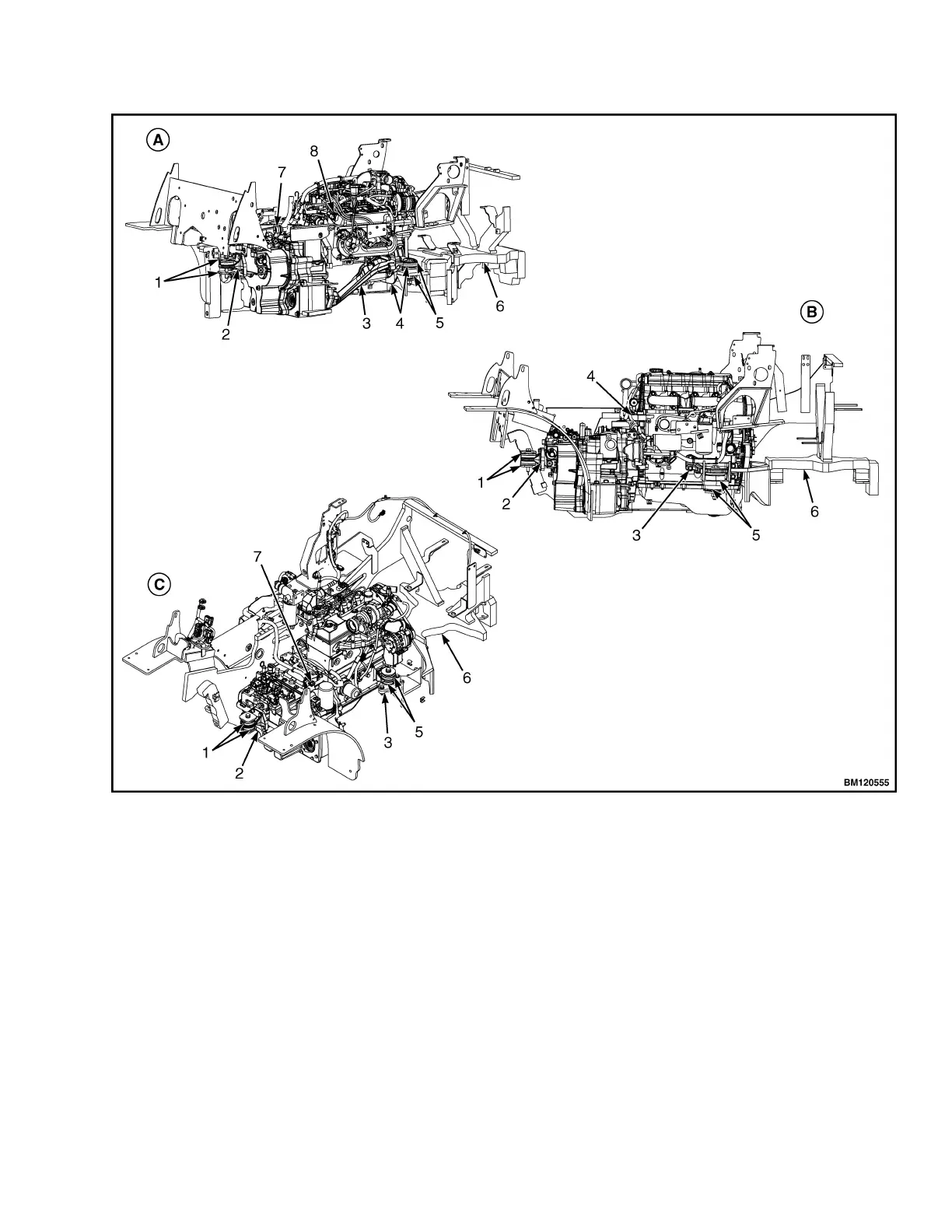

NOTE: PART OF FRAME NOT SHOWN FOR CLARITY.
A. GM 4.3L ENGINE
B. CUMMINS 4.5L DIESEL ENGINE
C. CUMMINS QSB 3.3L DIESEL ENGINE
1. TRANSMISSION ISOLATOR ASSEMBLY
2. TRANSMISSION MOUNTING BRACKET
3. ENGINE MOUNTING BRACKET
4. ENGINE CROSSMEMBER
5. ENGINE ISOLATOR ASSEMBLY
6. FRAME
7. ENGINE HARNESS CONNECTOR
8. LEFT CHASSIS WIRING HARNESS CONNEC-
TOR
Figure 23. Engine and Transmission Mounting Arrangement for GM4.3L Engines, Cummins 4.5L Diesel
Engines, and Cummins QSB 3.3L Diesel Engines
0100 YRM 1243 Engine Replacement
29
