SERVICE INFORMATION
7
SRM-2620ES, SRM-2620TES
T262XS, C262S
T262TXS, C262TS
Ignition
Air Gap Gauge
#.014 = .35mm
P/N 91004
PET-304
1.35
0.4
1.65
1.5
Made in Germany
T27x200
4 0 1 0 5 5 7 8 6 9 7 4 5
0
1
2
3
4
5
6
7
1-6 Special tools
12345
678910
11 12 13 14 15
16 17 19 20 22 2523
2418
21

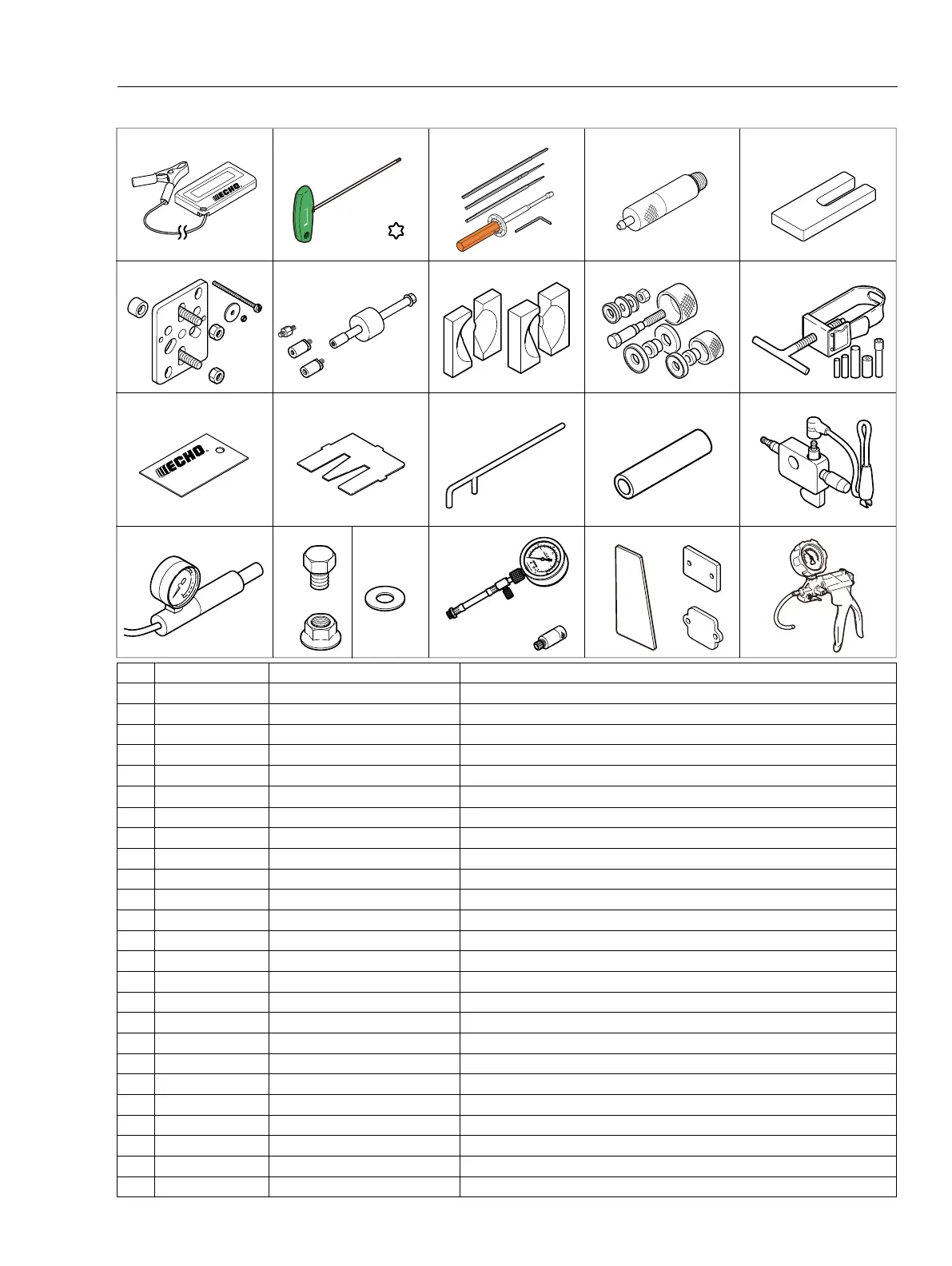

Key Part Number Description Reference
1 G310-000050 Tachometer PET-304 Measuring engine speed to adjust carburettor
2 X602-000340 Torx wrench (T27) Removing and installing bolt
3 Y089-000094 Carburettor adjustment tool Adjusting carburettor
4
A131-000160 Pressure connector Checking crankcase and cylinder leakages
5
897719-02830 Piston holder Making piston steady to remove and install piston/ring
6
Y089-000111 Puller Removing magneto rotor
7 P021-044870 PTO shaft puller Removing PTO shaft
8 897701-02830 Bearing wedge Removing ball bearings on cankshaft
9 897701-14732 Bearing tool Removing and installing ball bearings on crankcase
10 897702-30131 Piston pin tool Removing and installing piston pin (Use 8mm dia. adapter)
11 91004 Module air gap gauge Adjusting pole shoe air gaps
12 897563-19830 Metering lever gauge Measuring metering lever height on carburettor
13 897712-04630 2-pin wrench Removing and installing pawl carrier
14 897726-09130 Oil seal tool Installing crankcase oil seals
15 897800-79931 Spark tester Checking ignition system
16 897803-30133 Pressure tester Testing carburettor and crankcase leakages
17 900100-08008 Bolt Removing magneto rotor (fl ywheel), crankshaft from crankcase
18 V265-000200 Flange nut Removing magneto rotor (fl ywheel)
19 363018-00310 Washer Installing crankcase oil seal (starter side)
20 91037 Compression gauge Measuring cylinder compression
21 P021-051690 Adapter Measuring cylinder compression (Use with 91037)
22 91041 Pressure rubber plug Plugging exhaust port to test crankcase / cylinder leakages
23 897826-16131 Pressure rubber plug Plugging intake port to test crankcase / cylinder leakages
24 897827-16131 Pressure plate Plugging intake port to test crankcase / cylinder leakages
25 91149 Pressure / vacuum tester Testing crankcase / cylinder leakages
