2. Installation
CAUTION
- This unit rises up to a full height of 1850mm. Be sure to have enough space around the unit when
installing.
- Be sure to turn each air regulator all the way to the left (counterclockwise) BEFORE connecting
hoses.
- Keep yourself away from the lift when operating it. Do not touch any part of the unit other than the
control switches.
- Do not put your hand or any other parts of your body between a drum and the inductor plate when
installing a drum. An unexpected body injury may be caused.
2.1 Lift installation
1） Install the lift in your work site. Make sure the environment satisfies the following conditions:
- A flat surface indoor (area where exhaust from the pump does not affect peripheral equipment)
- Enough space for up/down movement of the lift (full height of the lift: 1850mm)
- Enough space to perform maintenance
2） When using caster wheels:
Make sure the front caster wheel locks are both locked during pump operation (including lift operation). Keep the
caster wheels locked whenever machine is not being moved.
3） When anchoring the unit to the floor:
Remove all the caster wheels from the lift base. Using M12 anchor bolts, secure the unit to the floor that satisfies
the installation requirements above.

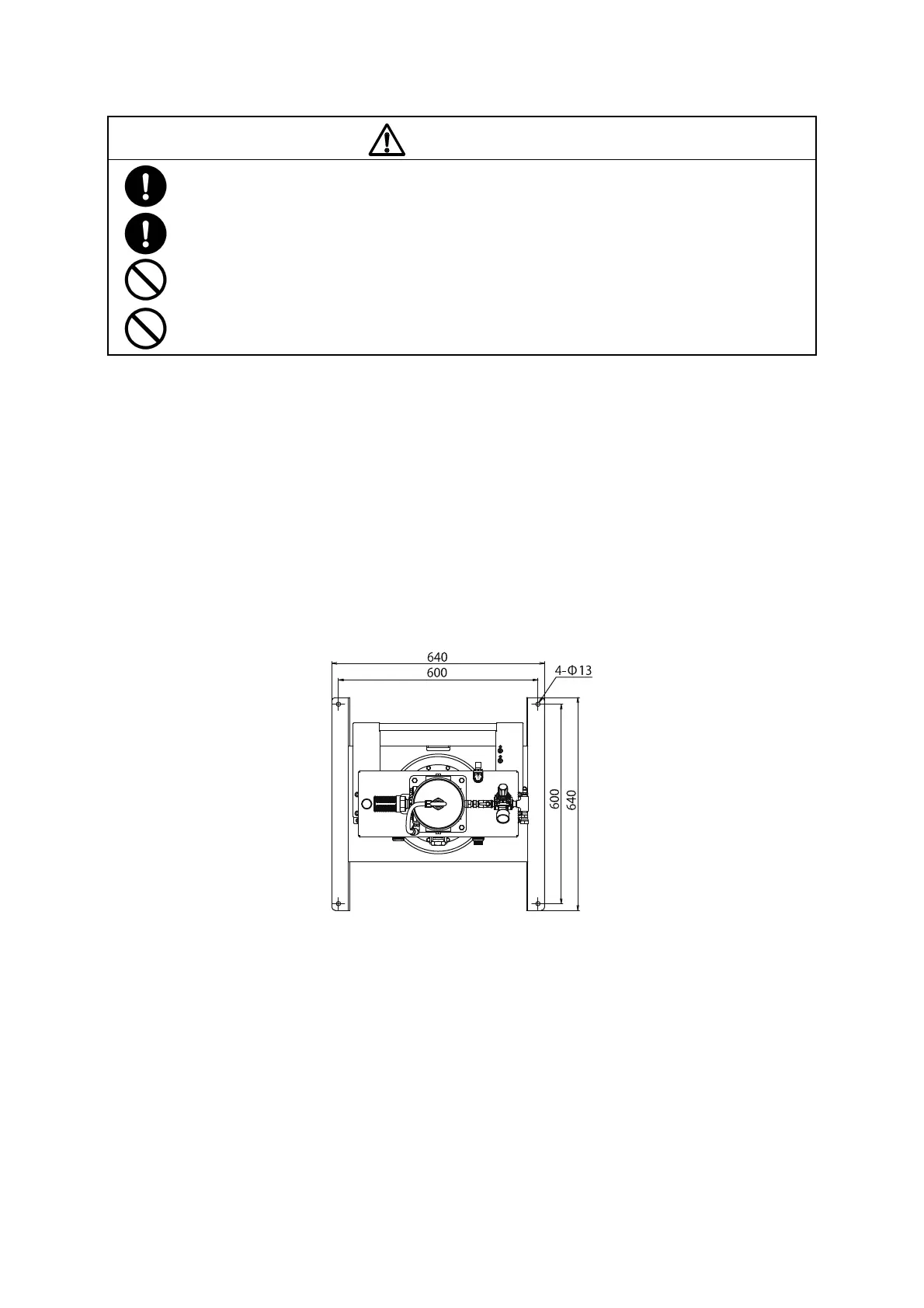

Fig. 3 Mounting dimensions for floor anchoring
