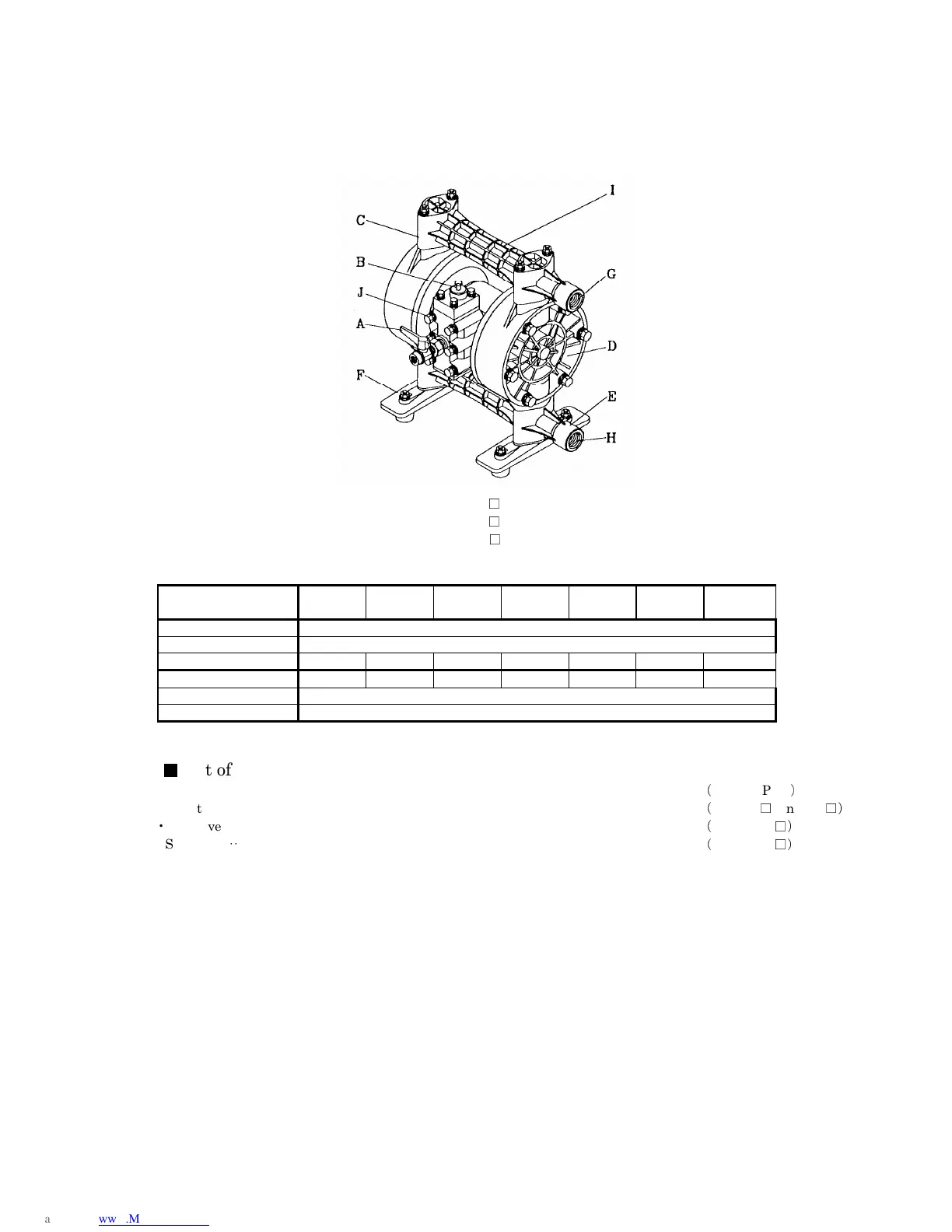

A: Air Valve F: Pump Base
B: Reset Button
G: Discharge Port
C: Out Manifold H: Intake Port
D: Out Chamber I: Lift Point
E: In Manifold
J: Ground Connection Point
NDP-20BP
NDP-25BP
NDP-25BV
•Polypropylene type ([ ]: Polyvinylidene fluoride type)
Type BPC BPN BPE
[BVE]
BPV
[BVV]
BPT
[BVT]
BPH BPS
[BVS]
Switching Portion ADC12
Fluid contact Portion
PPG [PVDF]
Diaphragm CR NBR EPDM FPM PTFE TPEE TPO
Ball/O Ring CR/NBR
NBR EPDM FPM PTFE PTFE EPDM
Valve Seat PPG [PVDF]
Center Disk PPG (SUS303) [PVDF(SUS303)]
List of accessories
List of accessoriesList of accessories
List of accessories
•Operation Manual·························1 •Bushing·································· 1
only NDP-20
•Maintenance Manual·····················1 •Accessory Tool·························· 2
only BP
and BV
•Air Valve·····································1 •Suction Tube···························· 1
only B-BA
•Silencer ······································1 •Bung adopter Assembly ············· 1
only B-BA
