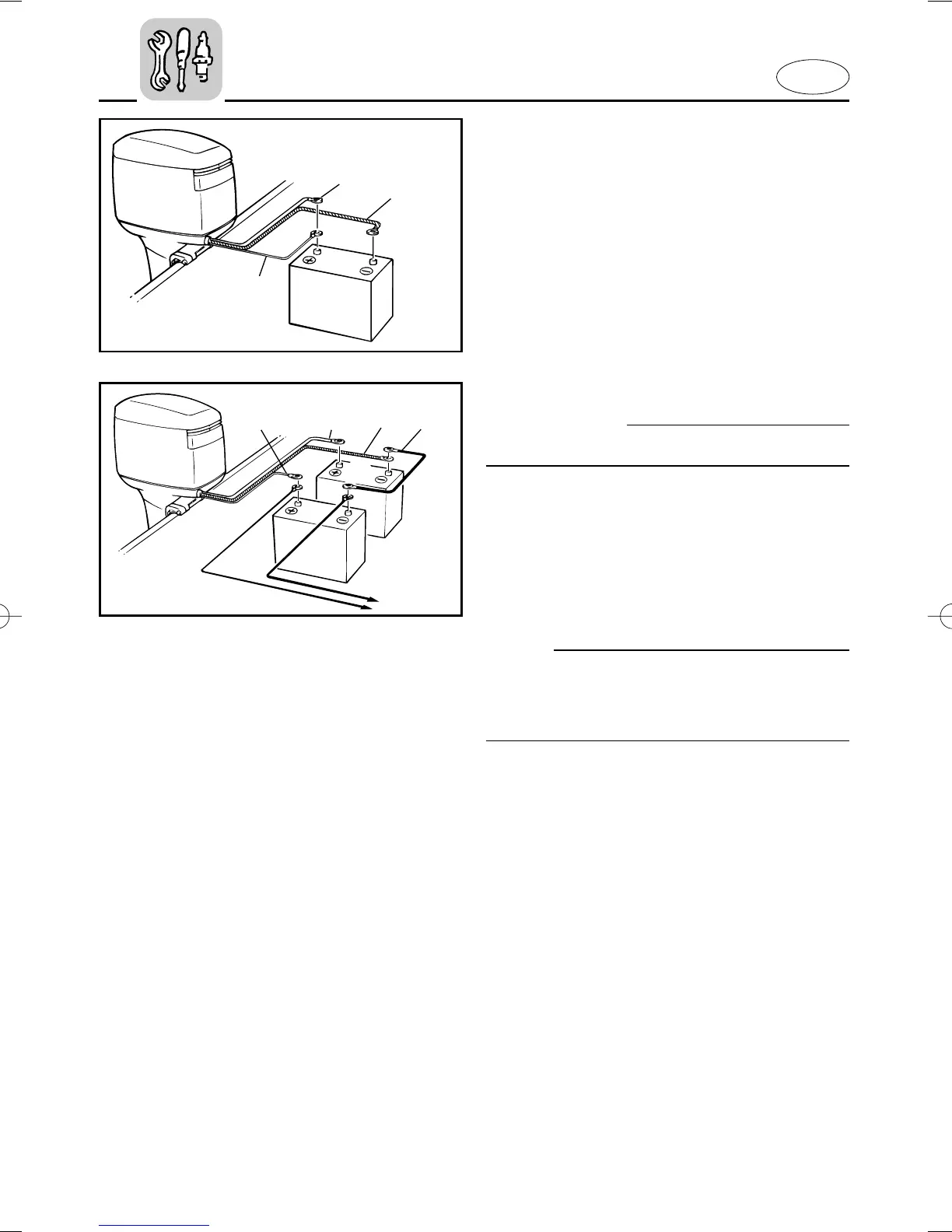

Disconnecting the Battery
Disconnect the BLACK lead from the NEG-
ATIVE (-) terminal first. Then disconnect
the RED lead from the POSITIVE (+) termi-
nal.
1 Large red lead for starting battery
2 Small red lead for accessory battery charg-
ing
3 Large black lead
4 Battery
8 Using an accessory battery
Use a connecting cable between the (-)
terminals of the starting battery and
accessory battery. See the illustrations of
the wiring connections. This cable must
be made from wire equivalent to the start-
ing battery cable 3.
w
Use of smaller wire could lead to a fire.
1 Battery for starting
2 Battery for accessories
3 Large red lead for starting battery
4 Small red lead for accessory battery charg-
ing
5 Large black lead
6 Negative connecting cable
NOTE:
If a battery selector switch is desired, con-
sult your YAMAHA dealer about correct
wiring.
