Outboard Rigging Guide - 2001

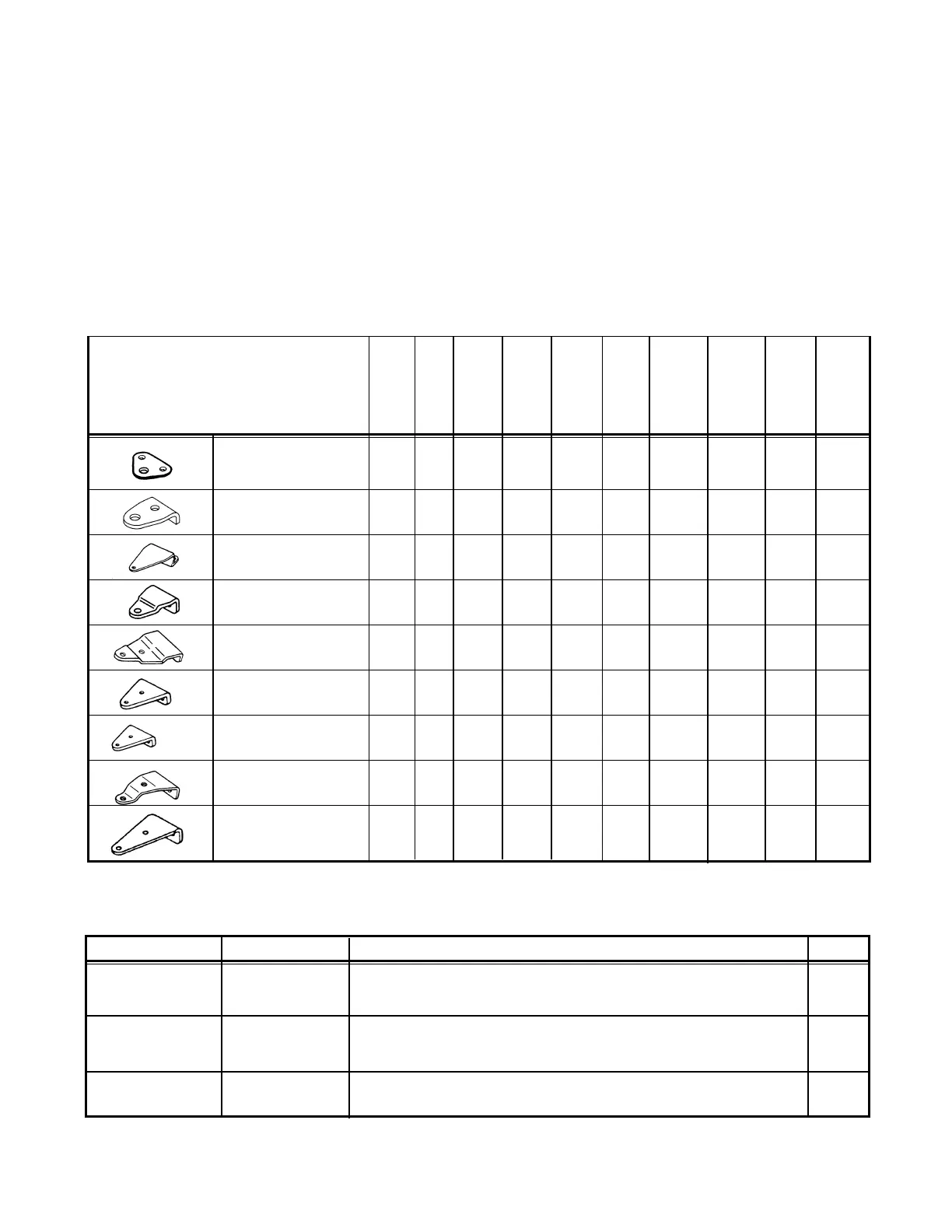

• = Standard Equipment o = Optional Equipment x = 25HP (ER Model)
Additional Parts Required
40E
F40(4)
9.9 F30 C50 C60
F/ 15 F40(3) T50 70HP C90 F80
PART NUMBER T9.9 F15 25HP F25 30HP C40 F50 C70 90HP F100
6G8-48511-20-00
•
63V-48511-01-00 •
689-48511-01-00 o •
65W-48511-00-00
•
6J8-48511-51-4D x o
63D-48511-00-4D •
6H3-48511-51-4D
•
688-48511-11-4D •
67F-61351-00-00 •
PART NUMBER DESCRIPTION REMARKS QTY
97075-08035-00 Bolt These items must be ordered for 9.9~F15 applications on the steering 1
92995-08600-00 Washer hook. 1
90185-05000-00 Nut 1
97075-10040-00 Bolt These items must be ordered for 25hp and 30/40 applications on the 1
92990-10600-00 Washer steering hook. 1
90185-10-51-00 Nut 1
90185-10051-00 Nut These items must be ordered for 30hp-90hp and C75 applications on 2
90116-10175-00 Stud the steering hook. 2
NOTE:The steering hook is permanently attached on 115hp models and larger.
STEERING HOOKS
A steering hook is necessary in order to guide any
boat from the helm. Some Yamaha outboard
motors come with a steering hook as standard
equipment, or are designed to accommodate a
hook for later adaptation to remote steering. This
is the case with the 25hp and 40hp (manual)
motors. Different steering hook designs are used
on Yamaha outboard motors.
NOTE:The steering hook is permanently
attached on 115hp models and larger.
