OUTBOARD MOTOR DIMENSIONS

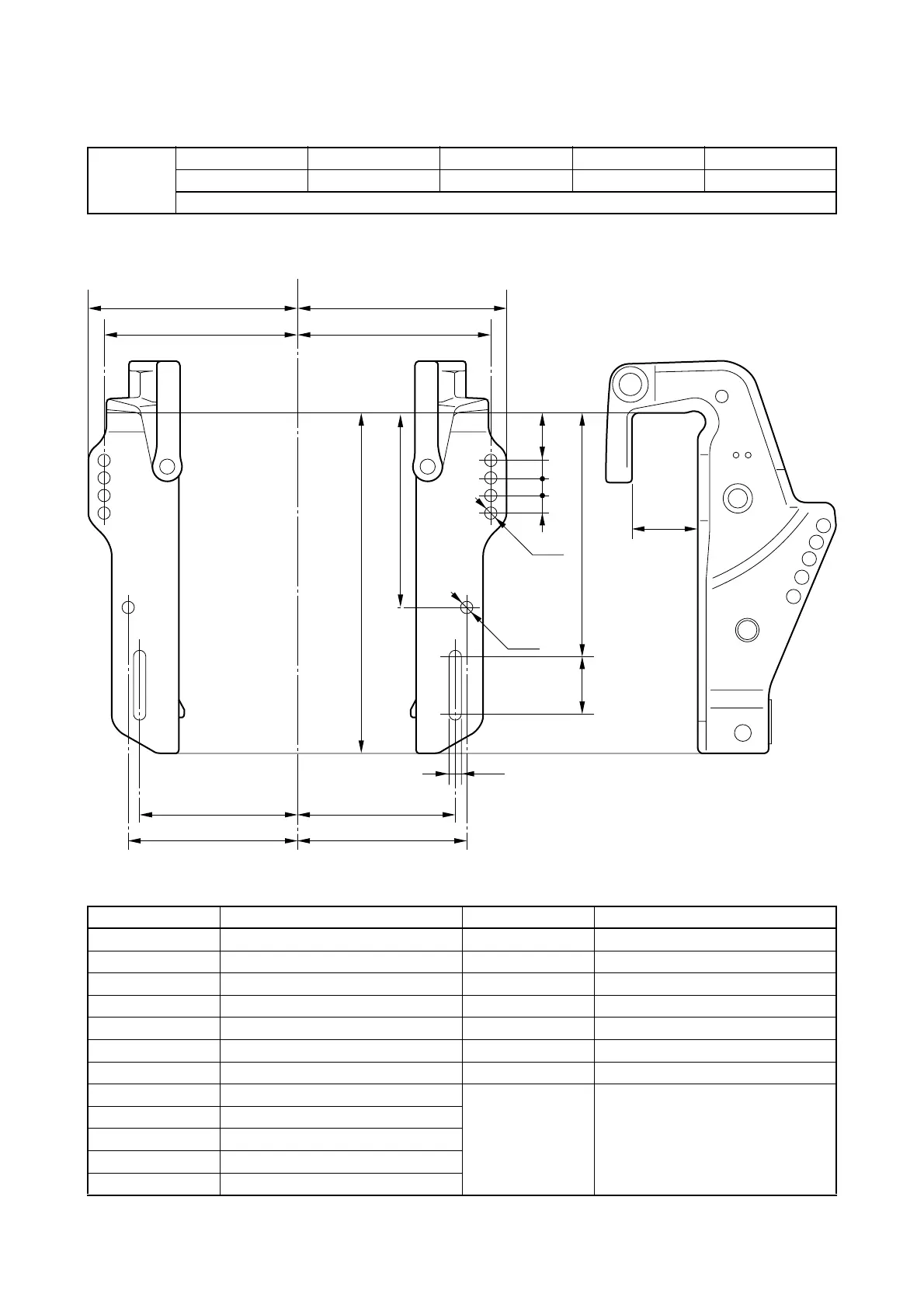

CLAMP BRACKET DIMENSIONS
Model
40V 40Y 50H (50) E60H F50D
FT50C
PTT & Hydro-tilt
Symbol mm (in.) Symbol mm (in.)
B1 126 (5.0) C1 —
B2 254 (10.0) C2 —
B3 163.5 (6.4) C3 69 (2.7)
B4 50.8 (2.0) D1 13 (0.51)
B5 180 (7.1) D2 60.5 (2.4)
B6 355 (14.0) D3 13 (0.51)
B7 138 (5.4) D4 —
B8 203 (8.0)
B9 18.5 (0.73)
B10 —
B11 —
B12 —
