CLUTCH AND PRIMARY DRIVEN GEAR

EC490000

CLUTCH AND PRIMARY DRIVEN GEAR

EC498000

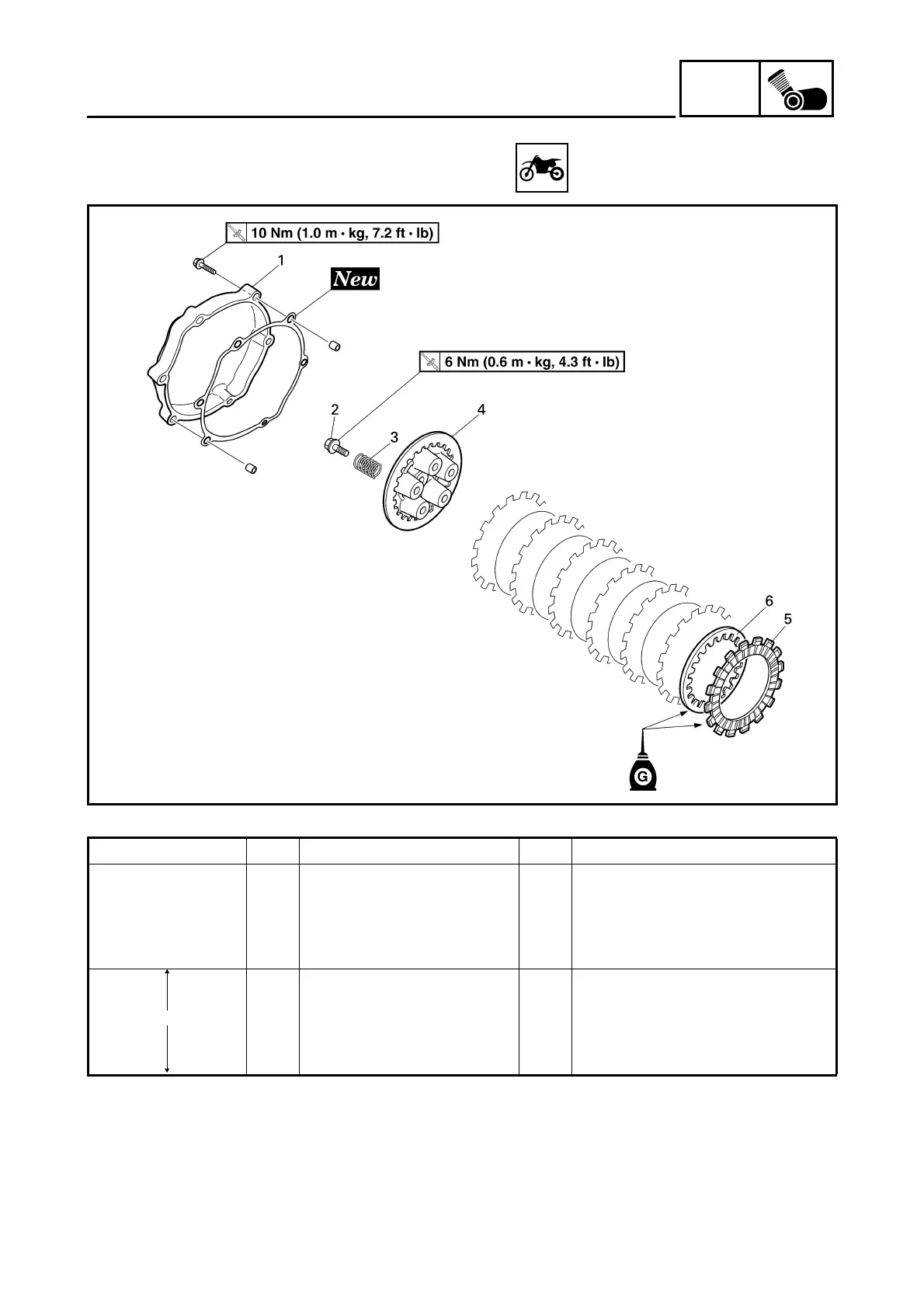

CLUTCH PLATE AND FRICTION PLATE

5PA40720

Extent of removal:

Clutch plate and friction plate removal

Extent of removal Order Part name Q’ty Remarks

CLUTCH PLATE AND FRIC-

TION PLATE REMOVAL

Preparation for removal Drain the transmission oil. Refer to “TRANSMISSION OIL

REPLACEMENT” section in the CHAP-

TER 3.

Clutch cable Disconnect at engine side.

1 Clutch cover 1

2 Bolt (clutch spring) 5

3 Clutch spring 5

4 Pressure plate 1

5 Friction plate 7

6 Clutch plate 6
