3. While an assistant supports the
upper tower section in the middle,
unscrew the top outside knob on one
side.
4. Unscrew both lower outside knobs
from the same side and remove the
support. Repeat the procedure to
remove the tall tower support on the
other side.
5. Put a screw knob through one end
of a short tower storage support,
and install it to the outside of the
upper tower section. Screw the knob
through, leaving it slightly loose.
6. As your assistant lowers the upper
tower section, align the short tower
section support with the rear-most
tower support mount. Screw a knob
through the mount and then through
the hole in the short support, leaving
it slightly loose.
7. Install the short tower storage sup-
port onto the other side of the tower
by first attaching the top knob and
then the bottom knob.
8. Once all outside knobs are installed,
tighten them securely. Then install
and tighten all inboard knobs (three
each side).

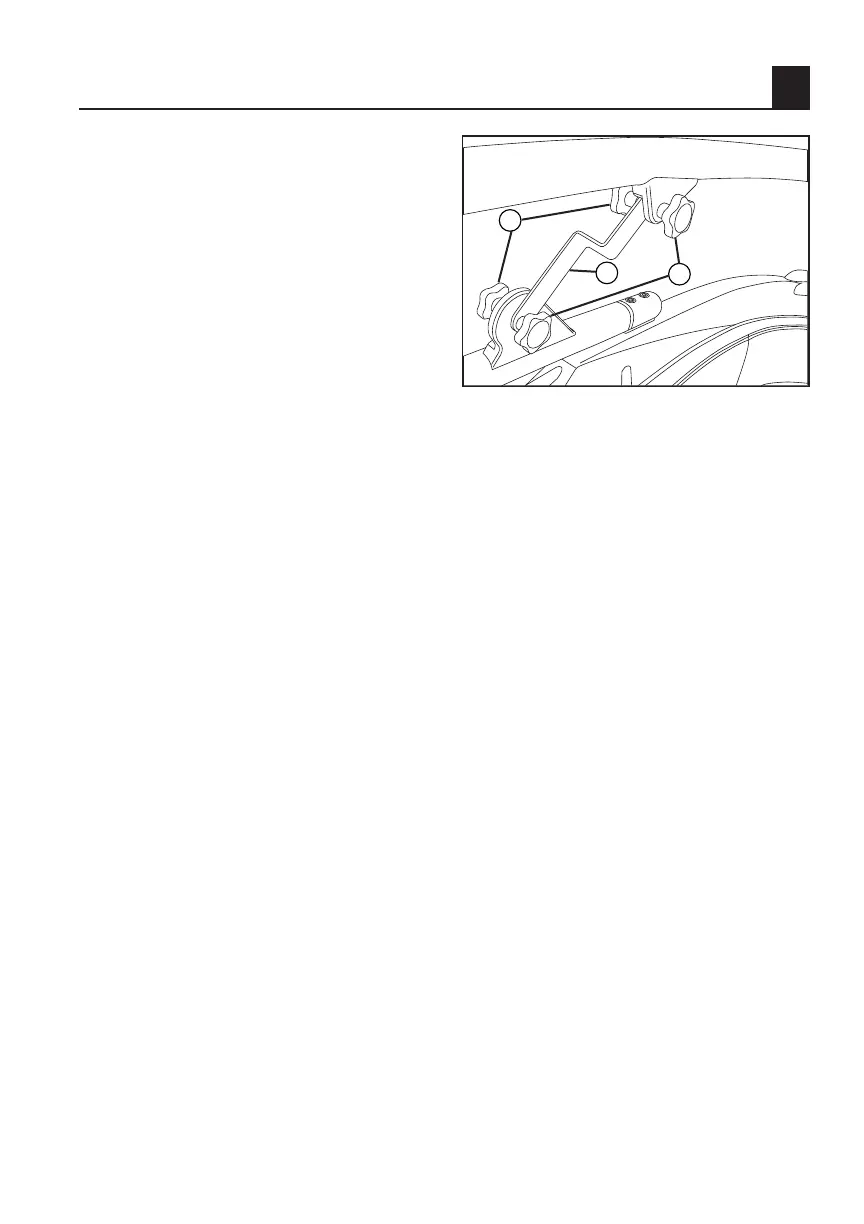

1OutsideKnobs(withscrews)
InboardKnobs
3 Short Tower Shortage Support
9. Carefully store the tall tower sup-
ports in a storage compartment in
the boat.
Raising
1. Have the two tower supports ready.
Remove the top and bottom inboard
screws from each side.
2. While an assistant supports the
upper tower section in the middle,
unscrew the outside knobs from
the top and bottom mounts on both
sides.
3. Lift the upper tower section up slight-
ly above its normal height. Hold one
of the tall tower supports in place
on the outside of the mounts on one
side of the boat. Screw in the two
bottom inboard knobs through the
support and into the bottom mounts
in both front and rear mounting
holes, leaving them slightly loose.
