Yamaha 25 - Tilt Lock Mechanism; Tilt Support Bar; Cowling Lock Lever(S) (Turn Type)

Components
26
to provide more clearance when operating in
shallow water.
EMU30530

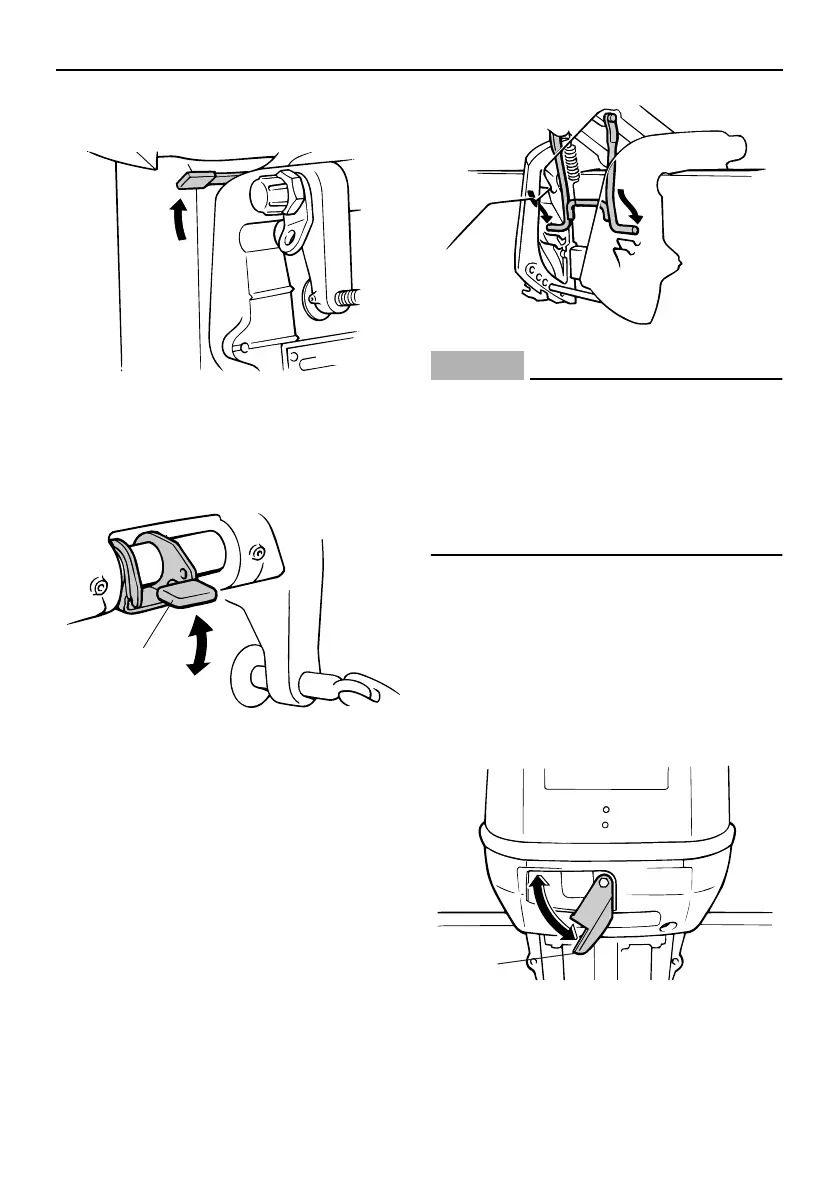

Tilt lock mechanism
The tilt lock mechanism is used to prevent
the outboard motor from lifting out of the wa-
ter when in reverse gear.
To lock it, set the tilt lock lever in the lock po-
sition. To release, push the tilt lock lever in
the release position.
EMU26332
Tilt support bar
The tilt support bar keeps the outboard motor
in the tilted up position.
NOTICE
ECM01660
Do not use the tilt support bar when
trailering the boat. The outboard motor
could shake loose from the tilt support
and fall. If the motor cannot be trailered in
the normal running position, use an addi-
tional support device to secure it in the
tilt position.
EMU26373
Cowling lock lever(s) (turn type)
To remove the engine top cowling, turn the
cowling lock lever(s) and lift off the cowling.
When installing the cowling, check to be sure
it fits properly in the rubber seal. Then lock
the cowling again by returning the cowling
lock lever(s) to the lock position.
1. Tilt lock lever
ZMU04111
1
ZMU03695
1. Cowling lock lever(s)
ZMU03699
ZMU03701
1
