4-22
GB

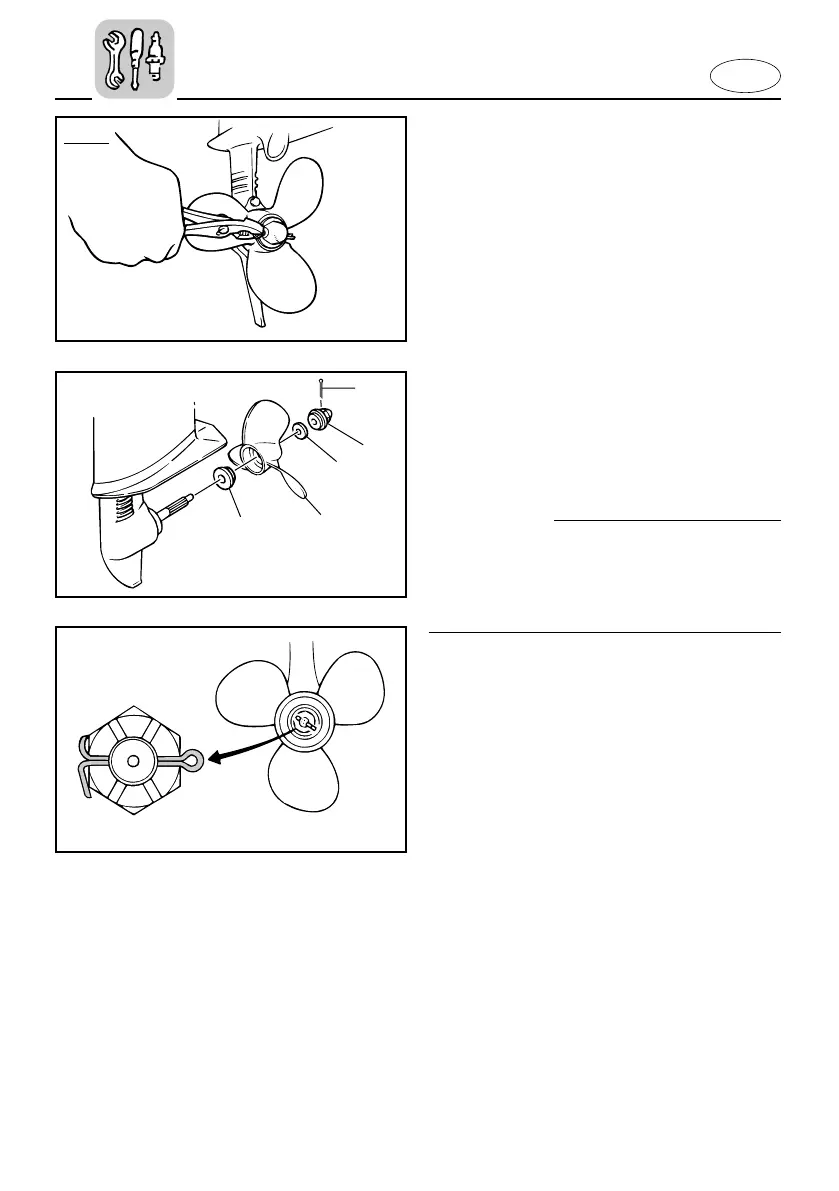

[How to remove propeller]
1) Using the pliers provided, straighten
the cotter-pin and pull it out.
2) Remove the propeller nut.
3) Remove the propeller.
[How to install propeller]
1) Apply Marine grease D (corrosion-
resistant grease) to the propeller-
shaft.
2) Slide the propeller over the propeller-
shaft.
3) Align the propeller nut with the pro-
peller-shaft hole. Insert a new cotter
pin in the hole and bend the cotter pin
ends.
cC
Be sure to use a new cotter pin and bend
the ends over securely. Otherwise, the
propeller could come off during operation
and be lost.
1 Thrust washer
2 Propeller
3 Washer
4 Propeller nut
5 Cotter pin
q
w
e
r
t
602044
602053
3/4/5
6A1-9-7LA0-4C 3/7/02 12:18 PM Page 154
