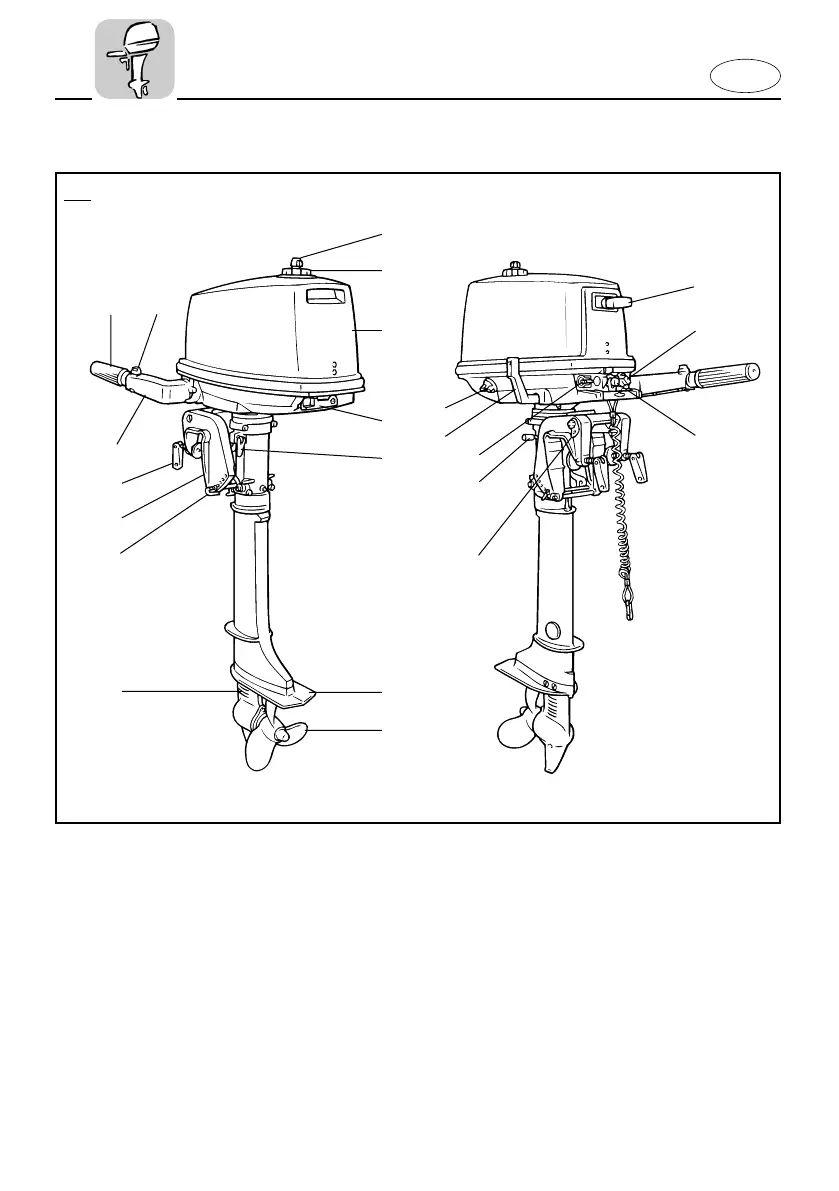

MAIN COMPONENTS
1 Air vent screw
2 Fuel tank cap
3 Top cowling
4 Cowling lock lever
5 Steering friction adjusting lever
6 Anti-cavitation plate
7 Propeller
8 Cooling water inlet
9 Trim angle adjusting-rod
0 Clamp bracket
q Transom clamp handle
w Tiller handle
e Throttle control grip
r Throttle friction adjusting knob
t Recoil starter handle
y Choke knob
u Engine stop button/
Engine stop lanyard switch
i Rope attachment
o Tilt support lever
p Fuel connector
a Gear shift lever
s Fuel cock lever
