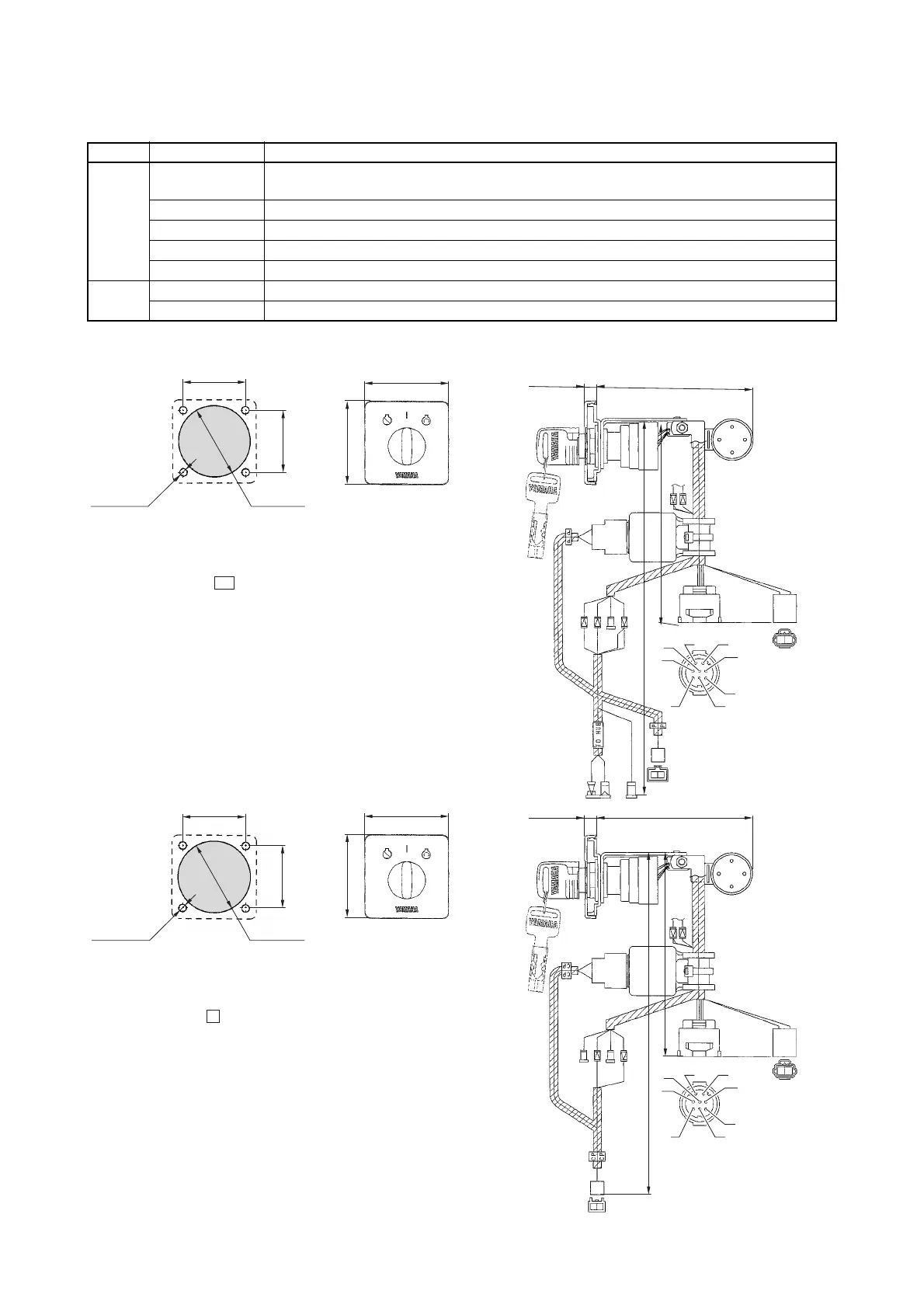

REMOTE SWITCH TYPES AND APPLICATIONS
QUAD IG SWITCH
Ref. No. Part No. Description
1
6X6-82570-M2
For Digital Network System (6Y9), Main station helm, Assembly for P, CP, CS and S as
below*
*6X6-82570-R2 For P engine
*6X6-82570-S2 For CP engine
*6X6-82570-T2 For CS engine
*6X6-82570-U2 For S engine
2
6X6-82570-J0 For Digital Network System (6Y9), 2nd station helm, P/CP engine
6X6-82570-K0 For Digital Network System (6Y9), 2nd station helm, CS/S engine
1
63 (2.48)
63 (2.48)
47 (1.85)
47 (1.85)
5.6 (0.22) 54 (2.13)
P/ CS SW PANEL
EX: P SW panel
(*1) CS SW panel has CS mark.
63 (2.48)
63 (2.48)
47 (1.85)
5.6 (0.22) 54 (2.13)
47 (1.85)
CP/ S SW PANEL
EX: CP SW panel
(*1) S SW panel has S mark.
mm (in.)
mm (in.)
116.5 (4.59)9 (0.35)
140 (5.51)
665 (26.2)
(*1)
(*1)
RY
Br
BY
P
W
L
B Y R
G
R
116.5 (4.59)
9 (0.35)
140 (5.51)
595 (23.4)
R G
Br
BY
P
W
L
G
R
YR
(*1)
(*1)
BW
BW
