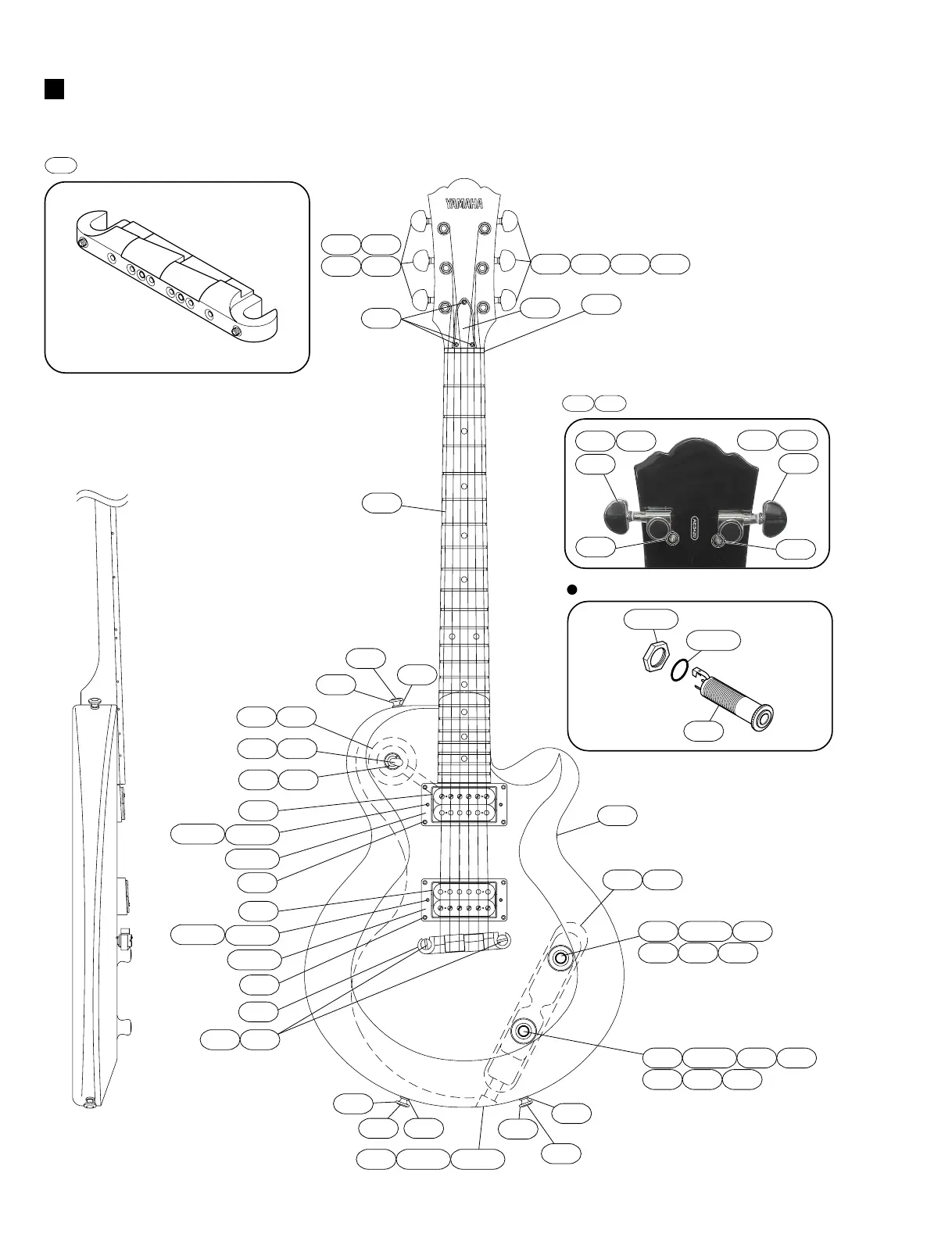

Yamaha AES420 - Overall Guitar Assembly; Tailpiece Assembly; Tuning Machine Assembly; Jack Installation

AES420
2
E08
E15
E16
E21
D01
E20
F05F04
F07F06
E17
E18
E16
E17 E18
E16
E17
E18
E19
MASTER VOLUME: 15A 500KΩ
F01
E22 E23
F11
The nut in service parts is formed with some
string grooves. However, you need to make
fine adjustments of the grooves to fit on the
string to be used when replacing the nut.
E01 E03 E04 E05
E06
E02 E03
E04 E05
E19a
F08 F09 F10
G01a
G01b
G01c
F11bF11a
E19
MASTER TONE: 05A 250KΩ
F03F02E19a
F08 F09 F10
E07
G01
G05
G06a
G06b
G06c
G06
G10
E09
E11E10
E01
E04
E05
E03
E02
E04
E03
E05
Tailpiece Assembly: Wrap Around Chrome (QC825700)
OVERALL ASSEMBLY
E09
Jack Installation
F11
F11b
F11a
E01 E02
Tuning Machine Assembly
