AES620
4
FRONT
PICKUP
FRONT
VOLUME
REAR
PICKUP
REAR
VOLUME
OUTPUT
MASTER
TONE
PICKUP
SWITCH
(3 position Toggle)
GP20-12
15A
500KΩ
15A
500KΩ
05A
250KΩ
0.022uF

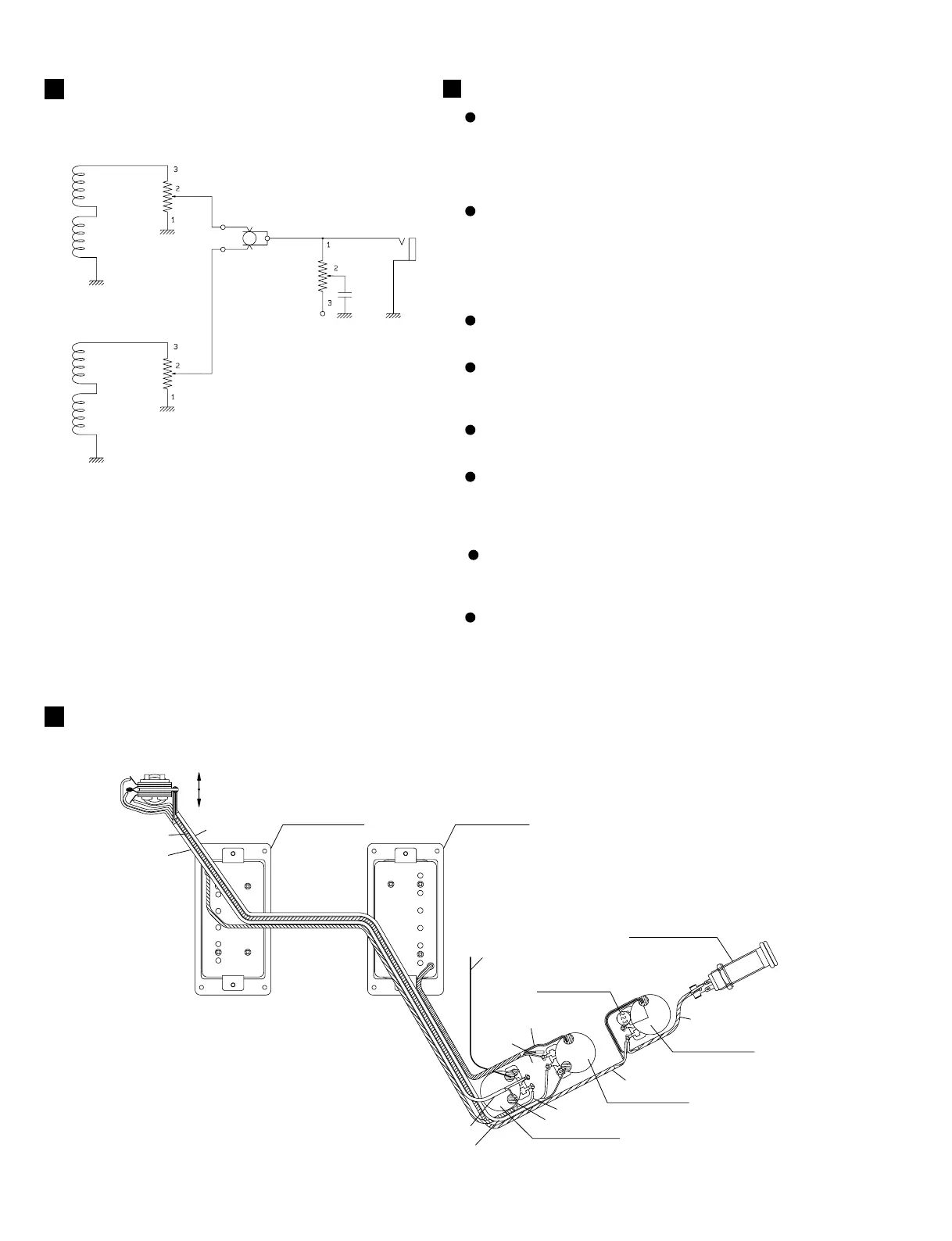

SPECIFICATIONS
WIRING
CIRCUIT DIAGRAM
STANDARD SPECIFICATIONS
Scale Length.............................. 628.0mm
Body-Neck Construction ......... Set Neck
Length........................................ 995.8mm
Width .........................................343.6mm
Net Weight ................................ 3.7kg
COLOR
Body
TDR ..........................................Translucent Dark Red
RLB ..........................................Royal Blue
FB.............................................Faded Burst
Neck
BL .............................................Black
BODY
Material......................................Nato+Maple
Body Depth ............................... 48mm
FINGERBOARD
Material......................................Rosewood
Fingerboard Width................... 0-F 43.0mm, 12-F 52.5mm
No. of Frets................................22
NECK
Material......................................Nato
Neck Thickness ........................ 1-F 21.9mm, 12-F 23.9mm
PARTS
Hardware ...................................Chrome Plated
Nut.............................................. Graphite
Bridge ........................................Ping Well: TP6-05Y (Chrome)
Strings........................................ D’Addario: XL-120
CONTROLS
Volume .......................................15A 500KΩ x 2
Tone ...........................................05A 250KΩ x 1
Pickup Switch............................ 3 position Toggle Switch
PICKUPS
Front/Rear ................................Humbucking
Magnet
Front/Rear ..............................Alnico V
PICKUP SWITCH
(3 position Toggle)
FRONT PICKUP
REAR PICKUP
FRONT PICKUP
FRONT + REAR
REAR PICKUP
Shield Wire (RE)
Shield Wire (GY)
Shield Wire (GR)
to bridge ground
WH + Bare Wire
GR + Bare Wire
BL + GR
RE
RE
Shield Wire (RE)
Shield Wire (GY)
Shield Wire (RE)
Shield Wire (GR)
FRONT VOLUME
(15A 500KΩ)
REAR VOLUME
(15A 500KΩ)
MASTER TONE
(05A 250KΩ)
CONDENSER
(0.022uF)
STRAIGHT JACK
