Yamaha BB NE2 - Wiring Diagram; Specifications

BB NE2
8
FRONT PICKUP REAR PICKUP
M2
M1
M2M2
M1M1
M2
M1
BR
BL
BL
BL
BL
BL
BL
RE
GY WH
VOLUME
A 5KΩ
FREQUENCY
A 50KΩ
EQUALIZER
TREBLE
W 50KΩ
EQUALIZER
MID
W 50KΩ
EQUALIZER
BASS
W 50KΩ
BALANCER
B 20KΩ
Box for Dry Cell
MID-CUT
SWITCH
BE
RE
BL
RE
WH
WH
OUTPUT JACK
to bridge ground
Start
End
Start
End
Signal (WH)
Ground
M2 M1
Start
End
Start
End
Signal (WH)
Ground
M2 M1

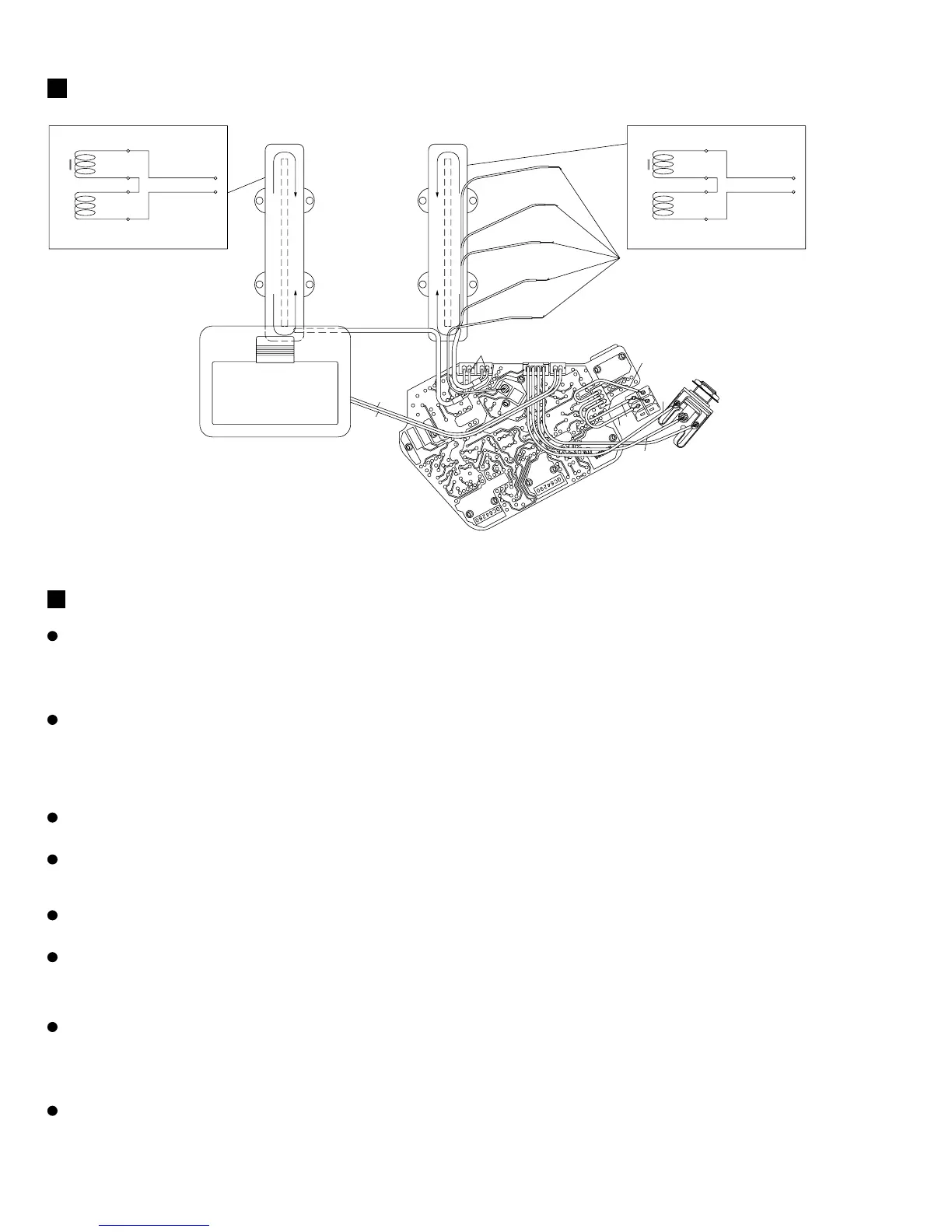

WIRING
SPECIFICATIONS
STANDARD SPECIFICA TIONS
Scale Length..............................864.0mm
Body-Neck Construction .........Through Neck
Length........................................ 1156.5mm
Width ......................................... 324.5mm
Net Weight ................................ 4.3kg
COLOR
Body
WH ...........................................White
BL .............................................Black
Neck
WH ...........................................White
BL .............................................Black
BODY
Material...................................... Maple + Alder
Body Depth ...............................51mm
FINGERBOARD
Material...................................... Ebony
Fingerboard Width................... 0-F 43.0 mm, 12-F 64.7 mm
No. of Frets................................ 24
NECK
Material...................................... Maple/Mahogany
Neck Thickness ........................ 1-F 20.3 mm, 12-F 23.7 mm
PARTS
Hardware ...................................Gold Plated
Nut.............................................. Bone
Bridge ........................................BPZ-8: Gold
Strings........................................ H4050
CONTROLS
Volume ....................................... A 5KΩ x 1
Balance ...................................... B 20KΩ x 1
Equalizer.................................... W 50KΩ x 3 (BASS, MID, TREBLE)
Frequency ................................. A 50KΩ x 1
MID-CUT Switch ...................... Toggle Switch (ON-OFF)
PICKUPS
Front/Rear ................................ Stacked Type
Magnet
Front/Rear .............................. Alnico 5
