PERIODIC MAINTENANCE AND ADJUSTMENT
6-34
6
2. Lift the wheel up between the fork
legs.
Make sure that there is enough space
between the brake pads before insert-
ing the brake disc and that the retainer
in the speedometer gear unit fits over
the slot on the fork leg.
3. Insert the wheel axle, and then in-
stall the washer and the axle nut.
4. Tighten the axle nut to the speci-
fied torque.
When tightening the axle nut, hold the
wheel axle with a wrench to keep it from
turning.
5. Take the motorcycle off the center-
stand.
6. While applying the front brake,
push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
7. Place the motorcycle on the cen-
terstand.
8. Install the rubber cap.
9. Connect the speedometer cable.

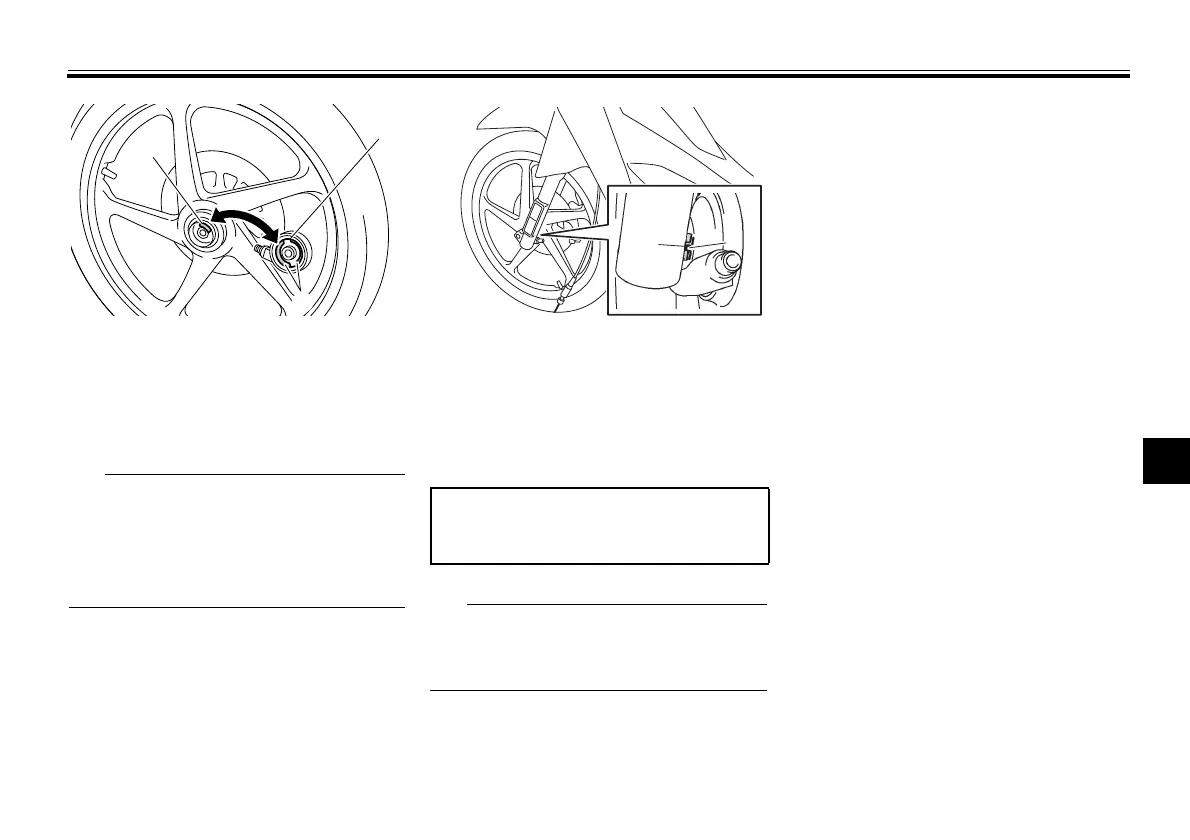

1. Projection
2. Speedometer gear unit
3. Slot
1. Retainer
2. Slot
Tightening torque:
Axle nut:
39 Nm (3.9 m·kgf, 28 ft·lbf)
