PERIODIC MAINTENANCE AND ADJUSTMENT
6-24
6
If the specified clutch lever free play
cannot be obtained as described
above, proceed as follows.

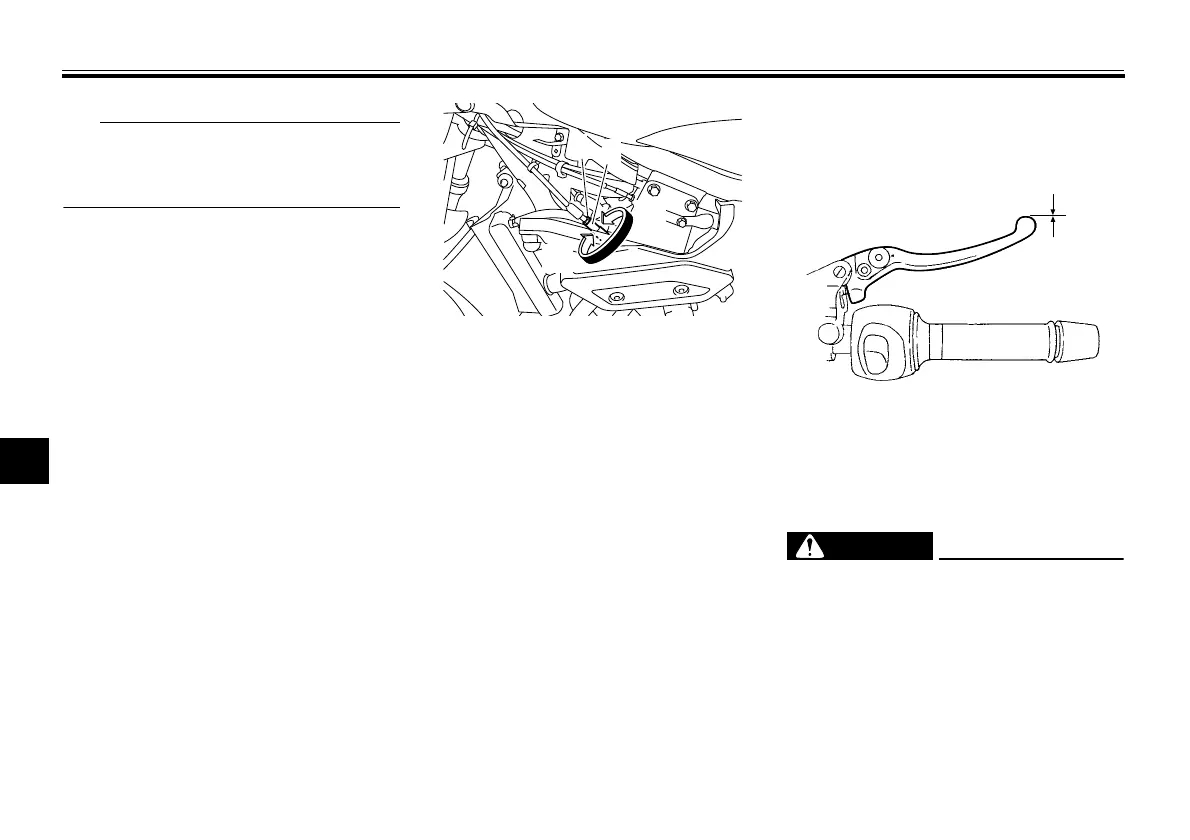

1. Fully turn the adjusting bolt at the
clutch lever in direction (a) to loos-
en the clutch cable.
2. Remove cowling B. (See page
6-8.)
3. Loosen the locknut further down
the clutch cable.
4. To increase the clutch lever free
play, turn the clutch lever free play
adjusting nut in direction (a). To
decrease the clutch lever free play,
turn the adjusting nut in direction
(b).
5. Tighten the locknut.
6. Install the cowling.
EAU37913
Checking the brake lever free
play
There should be no free play at the
brake lever end. If there is free play,
have a Yamaha dealer inspect the
brake system.
EWA14211
A soft or spongy feeling in the brake
lever can indicate the presence of air
in the hydraulic system. If there is air
in the hydraulic system, have a
Yamaha dealer bleed the system be-
fore operating the vehicle. Air in the
hydraulic system will diminish the
1. Locknut
2. Clutch lever free play adjusting nut
1. No brake lever free play
U36CE3E0.book Page 24 Wednesday, May 30, 2012 11:51 AM
