PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
6
EAU00692
Adjusting the clutch lever free
play
The clutch lever free play should mea-
sure 5–10 mm as shown. Periodically
check the clutch lever free play and, if
necessary, adjust it as follows.
1. Loosen the locknut at the clutch le-
ver.
2. To increase the clutch lever free
play, turn the adjusting bolt in di-
rection
a
. To decrease the clutch
lever free play, turn the adjusting
bolt in direction
b
.
3. Tighten the locknut.
NOTE:
@
If the specified free play cannot be ob-
tained as described above or if the
clutch does not operate correctly, have
a Yamaha dealer check the internal
clutch mechanism.
@
EAU00696
Adjusting the brake lever free
play
The brake lever free play should mea-
sure 5–8 mm as shown. Periodically
check the brake lever free play and, if
necessary, adjust it as follows.

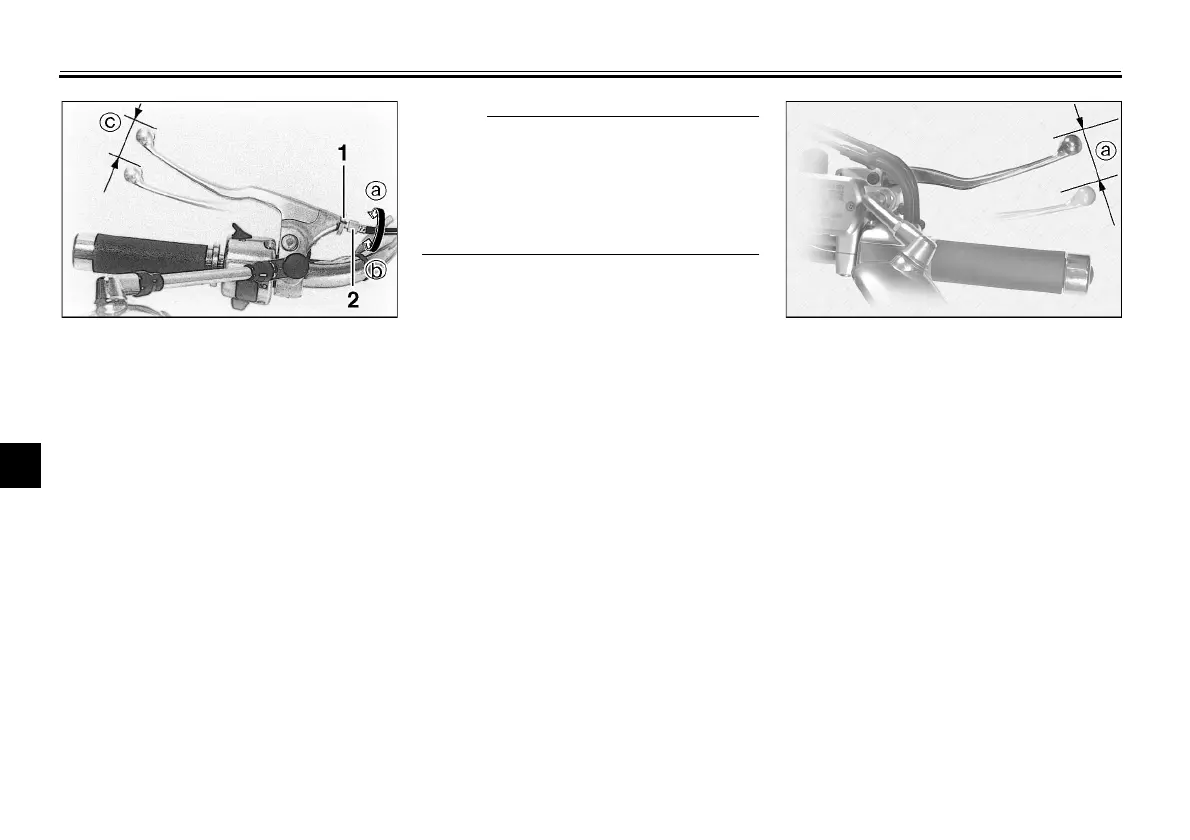

1. Locknut
2. Clutch lever free play adjusting bolt
c. Clutch lever free play
a. Brake lever free play
E_5pb.book Page 17 Friday, June 15, 2001 4:46 PM

Yamaha DragStar XVS1100 Specifications

General

Displacement	1063cc
Bore x Stroke	95.0 mm x 75.0 mm
Compression Ratio	8.3:1
Ignition System	TCI
Transmission	5-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Rear Tire	170/80-15
Seat Height	710 mm
Engine Type	Air-cooled, SOHC, V-twin
Rear Suspension	Swingarm
Front Brake	Dual disc
Rear Brake	Single disc
Front Tire	130/90-16
Fuel Capacity	17 liters
