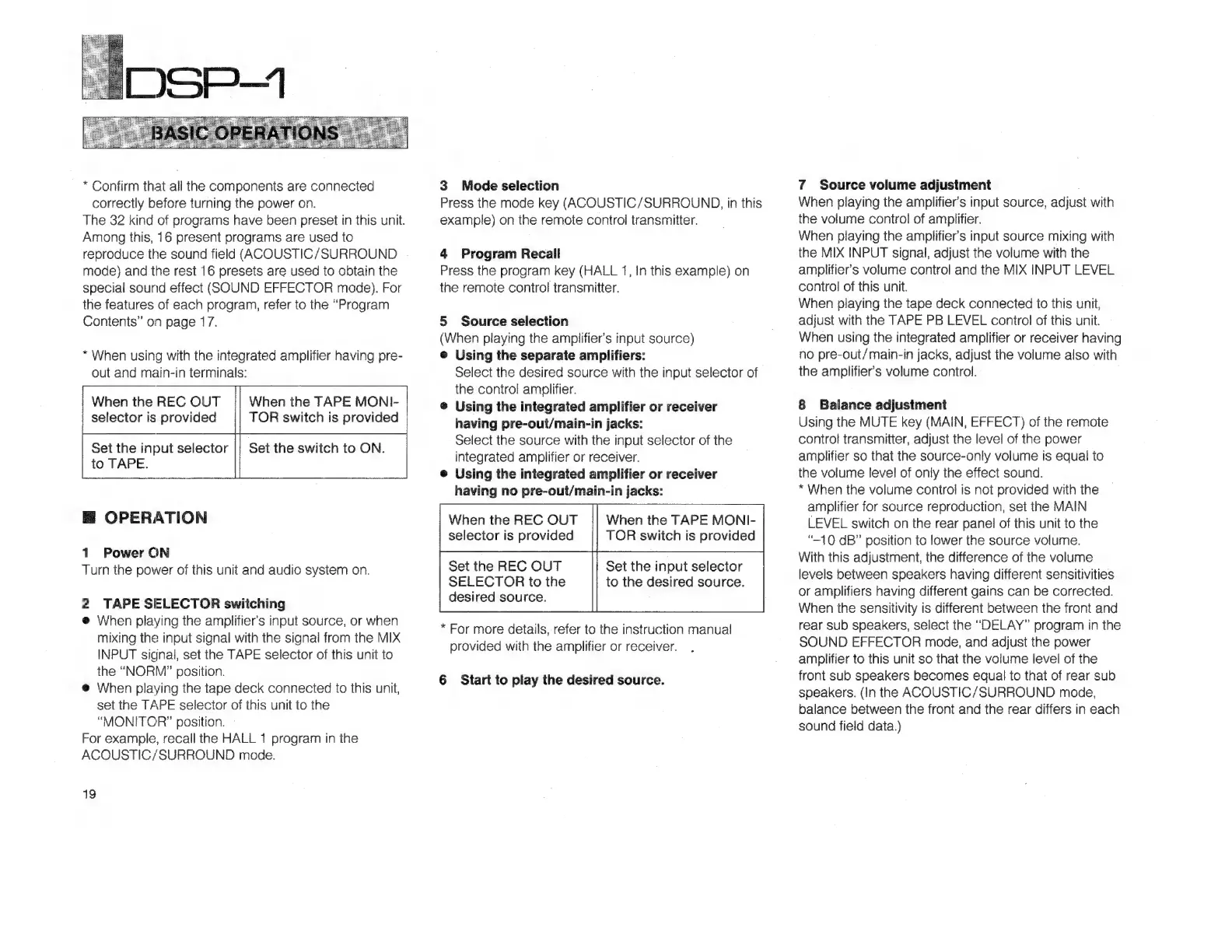

Confirm
that
all
the
components
are
connected
correctly
before
turning
the
power
on.
The
32
kind
of
programs
have
been
preset
in
this
unit.
Among
this,
16
present
programs
are
used
to
reproduce
the
sound
field
(ACOUSTIC/SURROUND
-
mode)
and
the
rest
16
presets
are
used
to
obtain
the
special
sound
effect
(SOUND
EFFECTOR
mode).
For
the
features
of
each
program,
refer
to
the
“Program
Contents”
on
page
17.
*
When
using
with
the
integrated
amplifier
having
pre-
out
and
main-in
terminals:
When
the
REC
OUT
selector
is
provided
When
the
TAPE
MONI-
TOR
switch
is
provided
Set
the
input
selector
Set
the
switch
to
ON.
to
TAPE.
E
OPERATION
1
Power
ON
Turn
the
power
of
this
unit
and
audio
system
on.
2
TAPE
SELECTOR
switching
®
When
playing
the
amplifier’s
input
source,
or
when
mixing
the
input
signal
with
the
signal
from
the
MIX
INPUT
signal,
set
the
TAPE
selector
of
this unit
to
the
“NORM”
position.
®
When
playing
the
tape
deck
connected
to
this
unit,
set
the
TAPE
selector
of
this
unit
to
the
“MONITOR?”
position.
-
For
example,
recall
the
HALL
1
program
in
the
ACOUSTIC/SURROUND
mode.
19
3
Mode
selection
Press
the
mode
key
(ACOUSTIC/SURROUND,
in
this
example)
on
the
remote
control
transmitter.
4
Program
Recall
Press
the
program
key
(HALL
1,
In
this
example)
on
the
remote
control
transmitter.
5
Source
selection
(When
playing
the
amplifier’s
input
source)
è
Using
the
separate
amplifiers:
Select
the
desired
source
with
the
input
selector
of
the
control
amplifier.
@
Using
the
integrated
amplifier
or
receiver
having
pre-out/main-in
jacks:
-
Select
the
source
with
the
input
selector
of
the
integrated
amplifier
or
receiver.
®
Using
the
integrated
amplifier
or
receiver
having
no
pre-out/main-in
jacks:
When
the
REC
OUT
selector
is
provided
When
the
TAPE
MONI-
TOR
switch
is
provided
Set
the
input
selector
to
the
desired
source.
Set
the
REC
OUT
SELECTOR
to
the
desired
source.
*
For
more
details,
refer
to
the
instruction
manual
provided
with
the
amplifier
or
receiver.
6
Start
to
play
the
desired
source.
7
Source
volume
adjustment
l
When
playing
the
amplifiers
input
source,
adjust
with
the
volume
control
of
amplifier.
When
playing
the
amplifiers
input
source
mixing
with
the
MIX
INPUT
signal,
adjust
the
volume
with
the
amplifiers
volume
control
and
the
MIX
INPUT
LEVEL
control
of
this
unit.
When
playing
the
tape
deck
connected
to
this
unit,
adjust
with
the
TAPE
PB
LEVEL
control
of
this
unit.
When
using
the
integrated
amplifier
or
receiver
having
no
pre-out/main-in
jacks,
adjust
the
volume
also
with
the
amplifiers
volume
control.
a
&
Balance
adjustment
Using
the
MUTE
key
(MAIN,
EFFECT)
of
the
remote
control
transmitter,
adjust
the
level
of
the
power
amplifier
so
that
the
source-only
volume
is
equal
to
the
volume
level
of
only
the
effect
sound.
*
When
the
volume
control
is
not
provided
with
the
amplifier
for
Source
reproduction,
set
the
MAIN
LEVEL
switch
on
the
rear
panel
of
this unit
to
the
“—10
dB”
position
to
lower
the
source
volume.
With
this
adjustment,
the
difference
of
the
volume
levels
between
speakers
having
different
sensitivities
or
amplifiers
having
different
gains
can
be
corrected.
When
the
sensitivity
is
different
between
the
front
and
rear
sub
speakers,
select
the
“DELAY”
program
in
the
SOUND
EFFECTOR
mode,
and
adjust
the
power
amplifier
to
this
unit
so
that
the
volume
level
of
the
front
sub
speakers
becomes
equal
to
that
of
rear
sub
speakers.
(In
the
ACOUSTIC/SURROUND
mode,
balance
between
the
front
and
the
rear
differs
in
each
sound
field
data.)
