Getting
Started

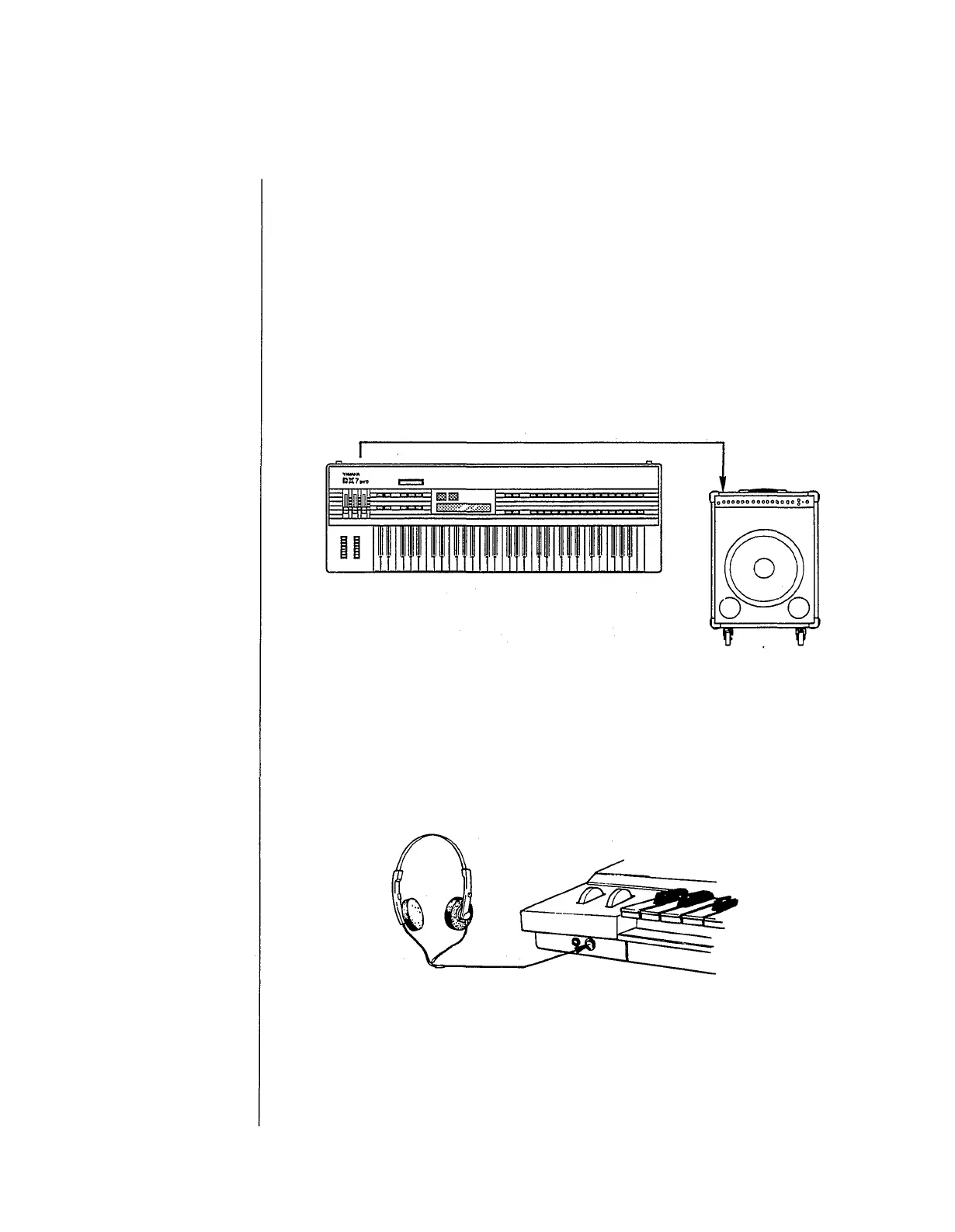

Connecting the DX
to a single input
amplifier.
Using stereo headphones
with the DX.
You can begin to enjoy your new DX immediately, without poring through a lot of
complicated electronic theory. All you have to do is take the instrument out of it's box and
proceed as follows:
Making Audio Connections
There are three different ways to connect the DX to sound reinforcement equipment. The
one you choose will depend on your situation:
1. If you have a monophonic (single input) amplifier such as a guitar amp, connect the
DX's A/Mix output to the amp's input (using a standard 1/4" cable).
2. If you are using a multi-channel mixer, connect the DX's two back-panel audio outputs
(A/Mix and B) to two of your mixer's inputs (using two 1/4" cables).
3. If you are using a set of standard stereo headphones, plug them into the DX's Phones
output.
-3-
