1-33
OUTBOARD MOTOR DIMENSIONS

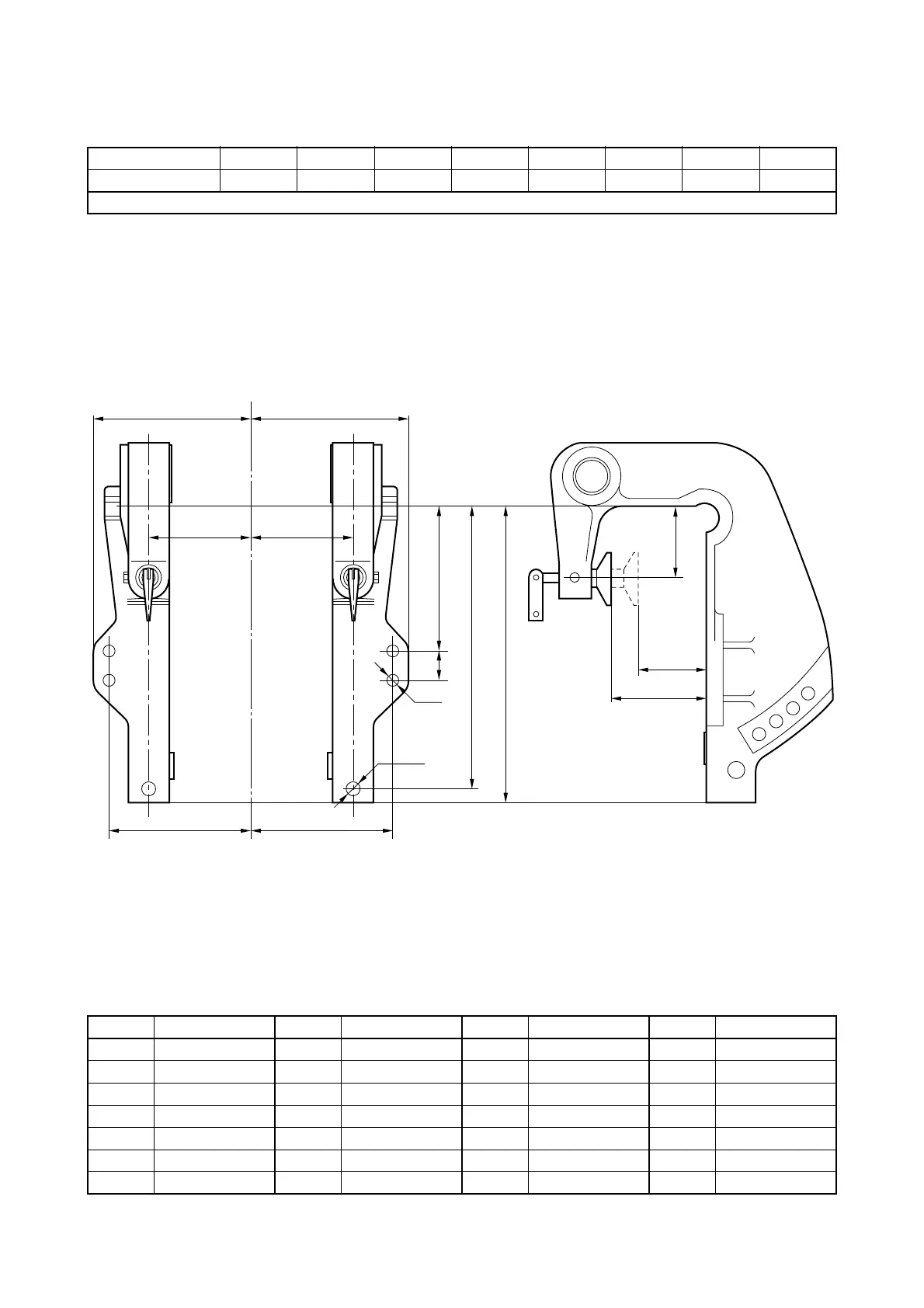

CLAMP BRACKET DIMENSIONS
Global model F8C FT8D
US/CA model F8A
Manual tilt
Symbol mm (in.) Symbol mm (in.) Symbol mm (in.) Symbol mm (in.)
B1 70.5 (2.8) B8 — C1 32 (1.3) D1 8.3 (0.3)
B2 180.5 (7.1) B9 18 (0.7) C2 65 (2.6) D2 8.3 (0.3)
B3 95.3 (3.8) B10 — C3 — D3 —
B4 94.5 (3.7) B11 — D4 —
B5 105.3 (4.2) B12 48 (1.9)
B6 189.5 (7.4)
B7 —
B6
B2
B9
B4
B1 B1
B5
C/L
B5
D2
D1
B3
B3
C1
B12
C2
