Yamaha F40 Rigging Guide

10B-18
Outboard Rigging Guide - 2001

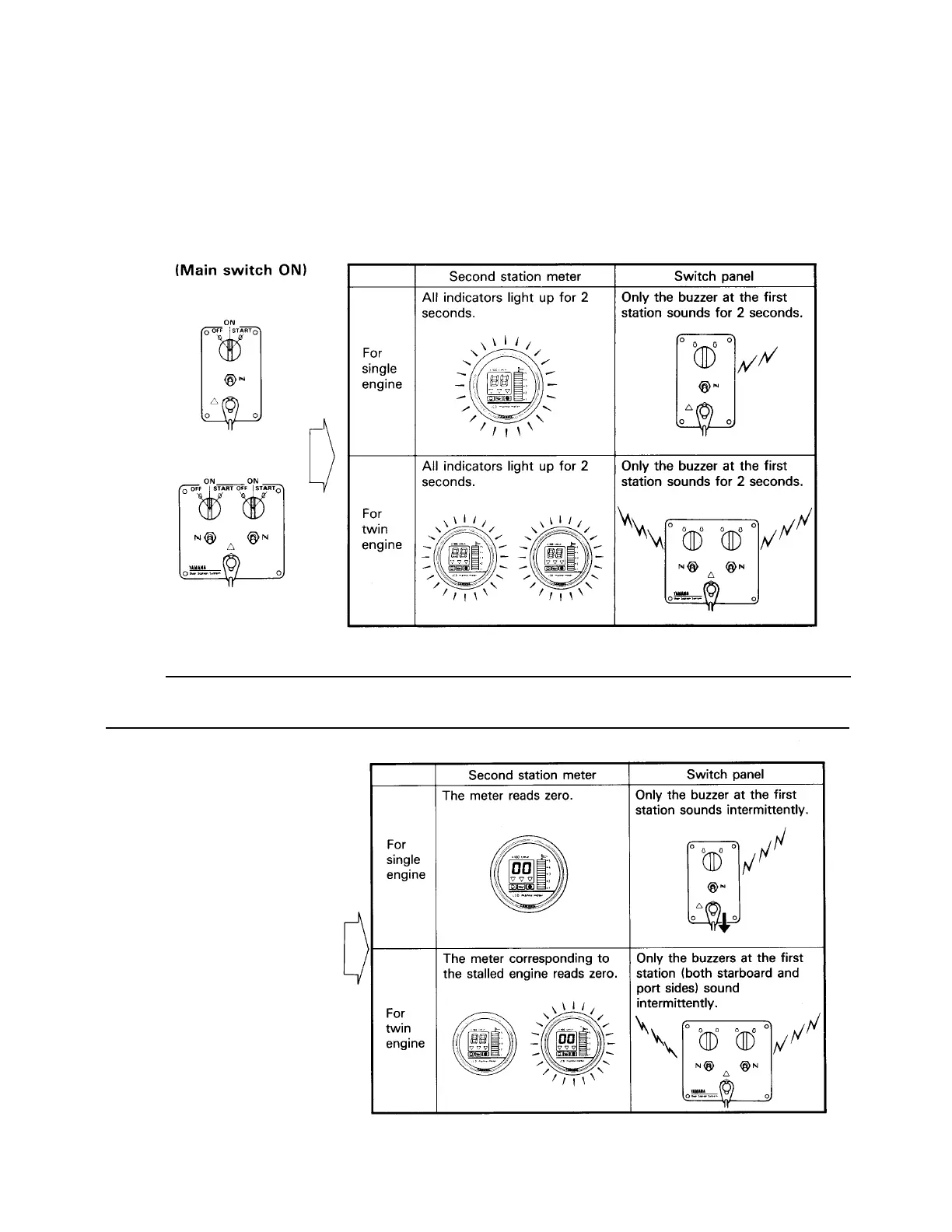

WARNING SYSTEM
A warning buzzer is provided for the second station. With the addition of the second station mode,
the warning system functions as follows.
1. Monitoring of starting period
(Main switch ON)
NOTE:
If there is a problem, the indicator corresponding to the problem does not light up and the buzzer
does not sound.
2. Stalled engine warning
This warning is issued if an
engine stalls or fails to start.
• The warning ends once
the engine is restarted.

Yamaha F40 Specifications

General

Full Throttle RPM Range	5000 - 6000 rpm
Fuel Induction System	EFI (Electronic Fuel Injection)
Alternator Output	16 Amp
Starting System	Electric
Steering	Remote
Displacement	747 cc
Prop Shaft Horsepower	40 hp
Ignition System	TCI
Recommended Fuel	Regular unleaded gasoline (min 87 octane)
Recommended Engine Oil	Yamalube 4M
Gear Shift	F-N-R
Shaft Length	20 in.
Trim Method	Power Trim & Tilt
Exhaust	Through Propeller
