Yamaha F40BED - Procedure for Tilting down

Operation
36

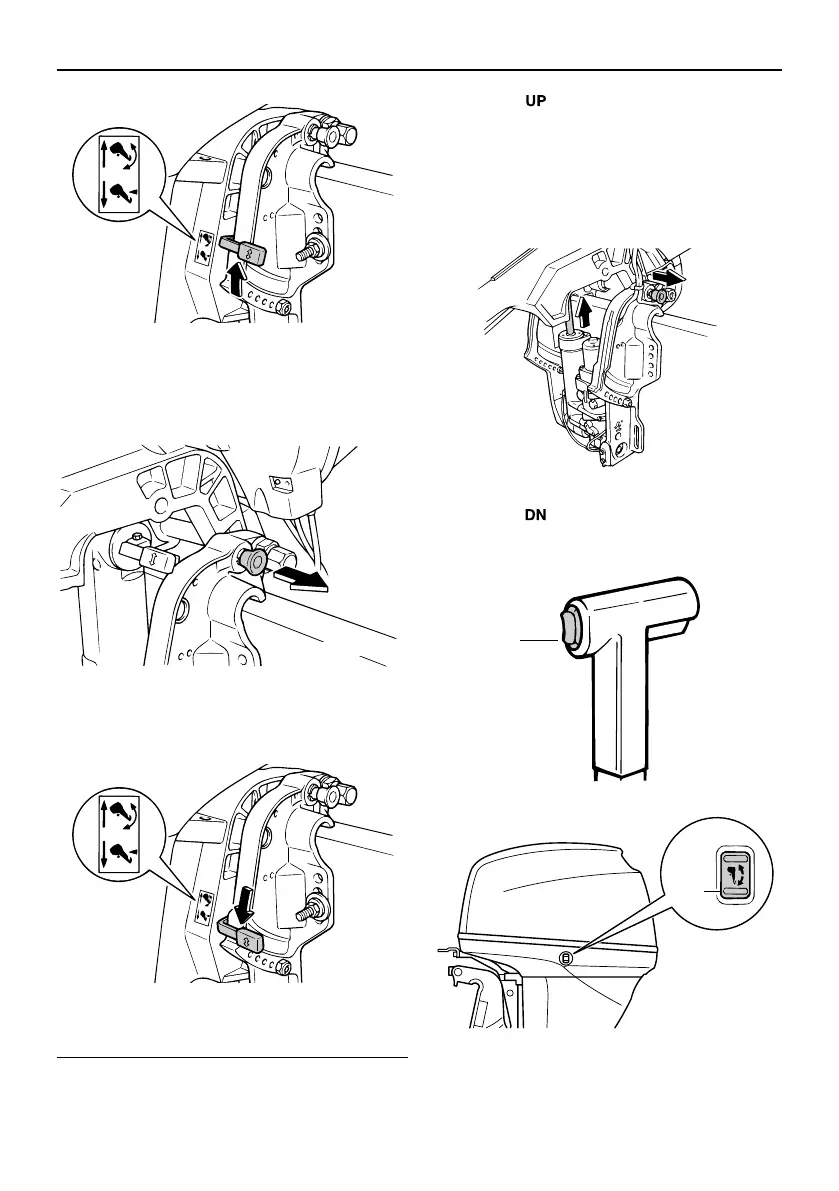

2. Hold the rear of the top cowling with one
hand, tilt the outboard motor up slightly
and pull out the tilt support knob or re-
turn the tilt support lever.
3. Slowly tilt the outboard motor down.
4. Place the tilt lock lever in the lock posi-
tion.
EMU28052
Procedure for tilting down
Power trim and tilt models / power tilt models
1. Push the power tilt / power trim and tilt
switch “” (up) until the outboard motor
is supported by the tilt rod and the tilt
support lever / tilt support knob becomes
free.
2. Release the tilt support lever or pull out
the tilt support knob.
3. Push the power tilt / power trim and tilt
switch “” (down) to lower the outboard
motor to the desired position.
ZMU04069
ZMU04070
ZMU04071
ZMU04072
DN
ZMU01936
UP
DN
DN
ZMU04073
