FUEL MANAGEMENT GAUGE

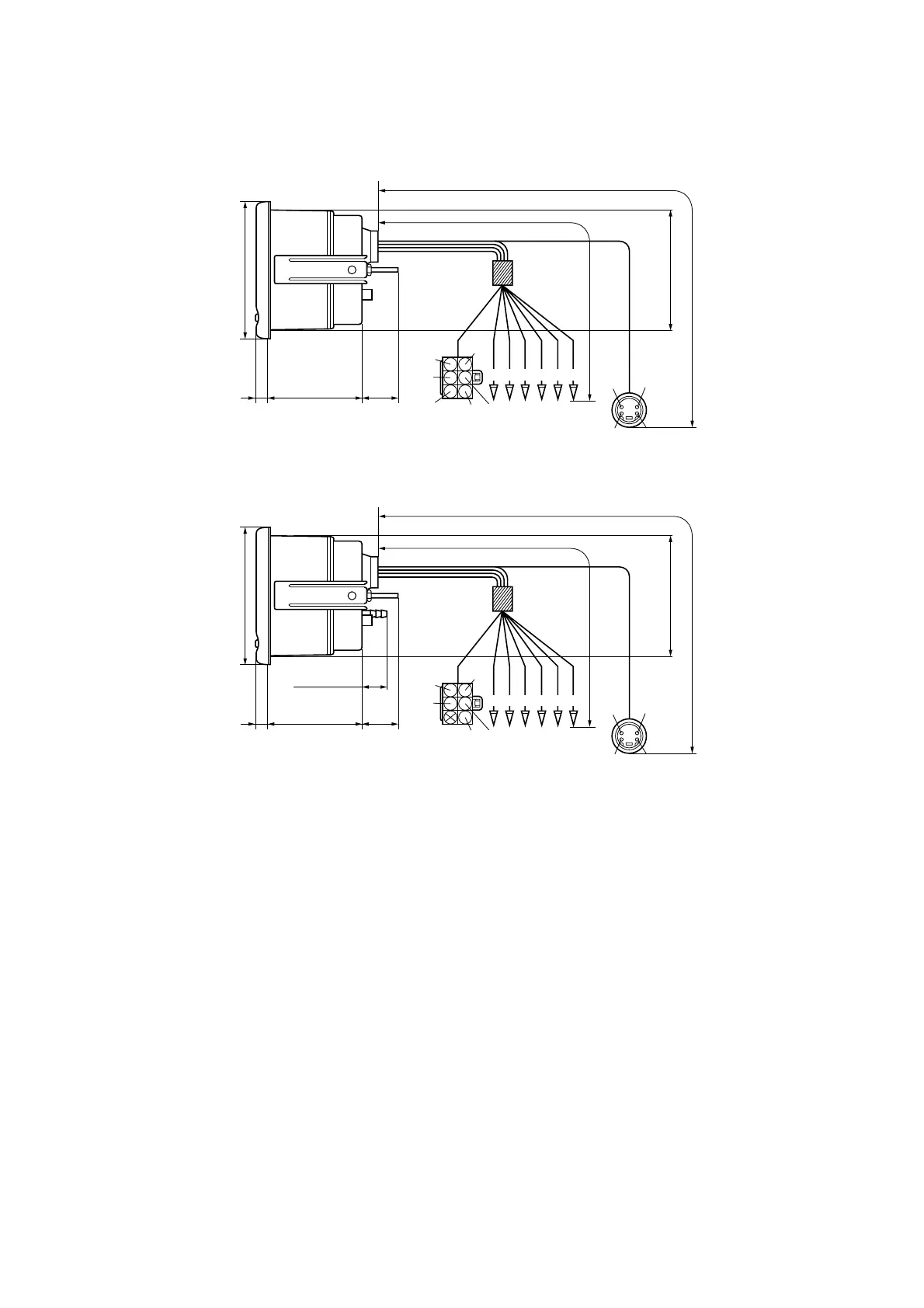

FUEL MANAGEMENT GAUGE DIMENSIONS
Fuel management gauge (Ref. No. 1)
Fuel mgt gauge with speedometer (Ref. No. 2)
97 (3.82)
8.5 (0.33) 25 (0.98)
65.5 (2.58)
84.5 (3.33)
310 (12.2)
210 (8.27)
Pu
Or
Or
Pu/W
W/R
B
R Y B L G G/W
X
R
W B
mm (in.)
97 (3.82)
8.5 (0.33) 25 (0.98)
65.5 (2.58)
16.9 (0.66)
84.5 (3.33)
310 (12.2)
210 (8.27)
Pu
Or
Or
Pu/WB
R Y B L W
X
X
W
X
B
mm (in.)

Yamaha F40BWHT Specifications

General

Horsepower	40 hp
Displacement	747 cc
Fuel Induction System	EFI (Electronic Fuel Injection)
Starting System	Electric
Full Throttle RPM Range	5000-6000 RPM
Gear Shift	F-N-R
Shaft Length	20 in
Steering	Remote
Trim Method	Power Trim & Tilt
Exhaust	Through propeller
Engine Type	4-Stroke
Alternator Output	16 Amp
Recommended Fuel	Unleaded gasoline
Recommended Engine Oil	Yamalube 4M
Ignition System	TCI
Warranty	3 years
Fuel Tank Capacity	N/A (External)
