Yamaha F40BWHT User Manual

5-42
Fuse
Trim meter
6Y7-83670-40 (BLK)
-50 (WHT)
Lamp switch
SpeedometerCharge
warning unit
Water pressure
meterVoltage meterDigital hour meter
Mechanical
hour meterFuel meter
Thermo sender Fuel sender
Engine is
running
Main switch is
“ON”
Water temperature
meter
Charge lamp
Tachometer
6Y7-83540-80 (BLK)
-90 (WHT)
Y
A
MA
H
A
6Y5-83553-00 (2.5 m)
6Y5-83653-00 (5 m)
-10 (6 m) -20 (7 m) -30 (8 m)
-40 (9 m) -50 (10.5 m)
6Y5-82521-00 6Y5-82149-00 6Y5-82117-00
688-82520-00

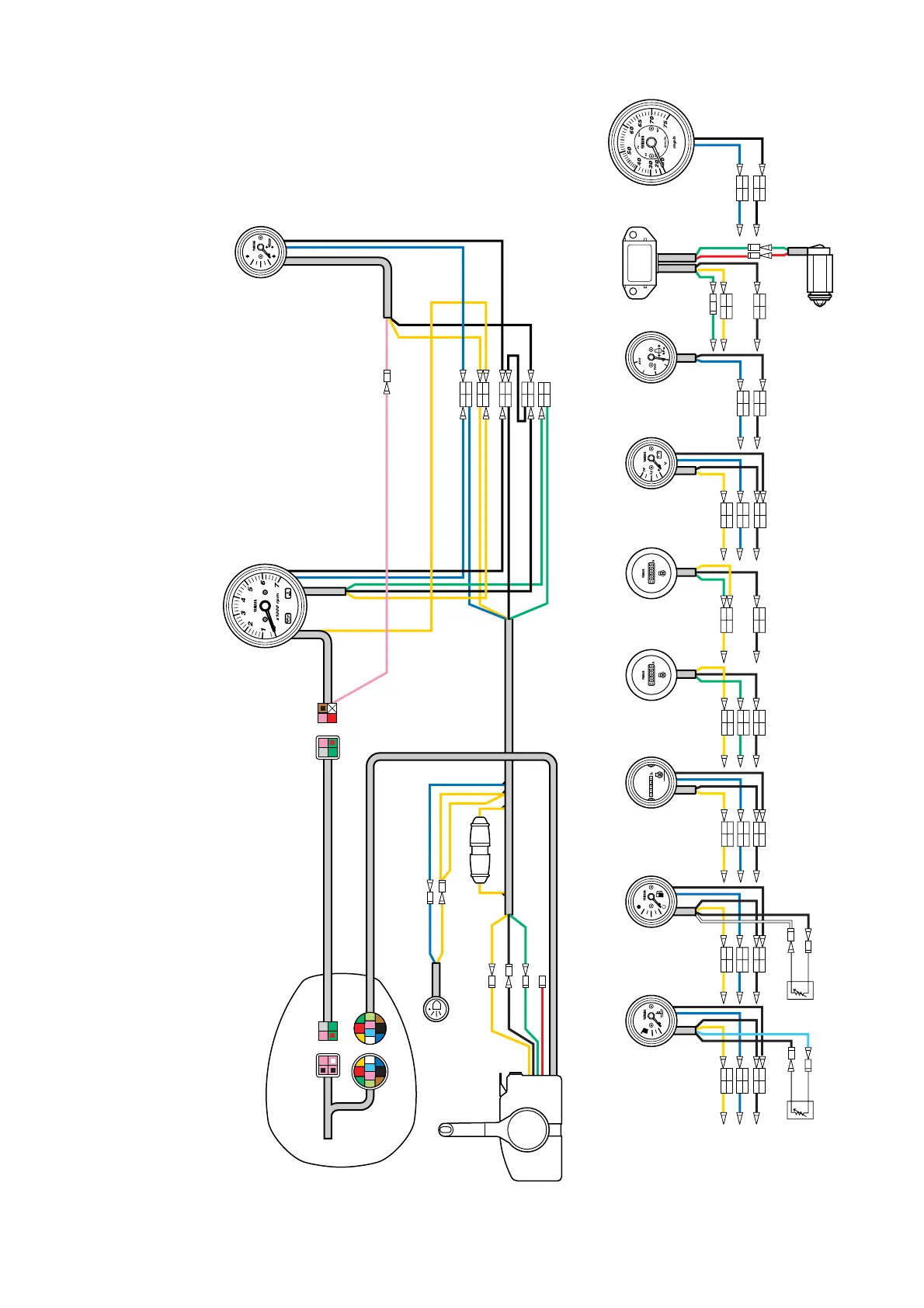

WIRING DIAGRAMS
ANALOG METER (6Y7)
2- AND 4-STROKE ENGINES
40 [3-cyl.]-300 w/ oil injection (except L/250G),
F30-F250

Yamaha F40BWHT Specifications

General

Brand	Yamaha
Model	F40BWHT
Category	Outboard Motor
Language	English
