Yamaha F40C - Tilt Support Lever; Trim Angle Adjusting Rod; Top Cowling Lock Lever

2-7
GB
***-31*

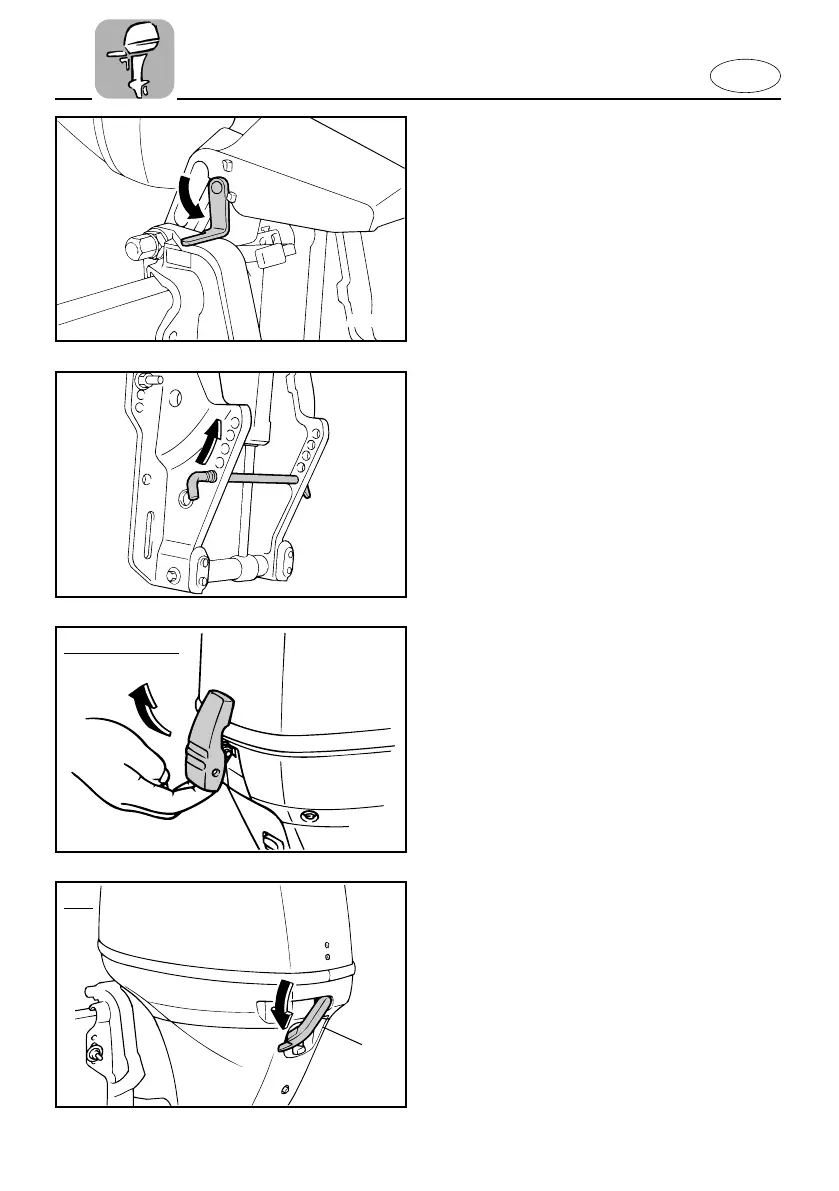

TOP COWLING LOCK LEVER
To remove the engine top cowling, pull
up the lock lever. Then lift off the cowling.
When replacing the cowling, check to be
sure it fits properly in the rubber seal.
Then lock the cowling again by moving
the lever downward.
EMU01297
TRIM ANGLE ADJUSTING ROD
The position of the trim angle adjusting
rod determines the minimum trim angle
of the outboard motor in relation to the
transom.
000970
000969
301011
EMU00162
TOP COWLING LOCK LEVER
To remove the engine top cowling, turn
the lock lever. Then lift off the cowling.
When replacing the cowling, check to be
sure it fits properly in the rubber seal.
Then lock the cowling again by moving
the lever upward.
1 Top cowling lock lever
001240
q
EMD43000*
TILT SUPPORT LEVER
To keep the outboard motor in the tilted-
up position, lock the tilt support lever to
the clamp bracket.
F40/F50/FT50
F60
