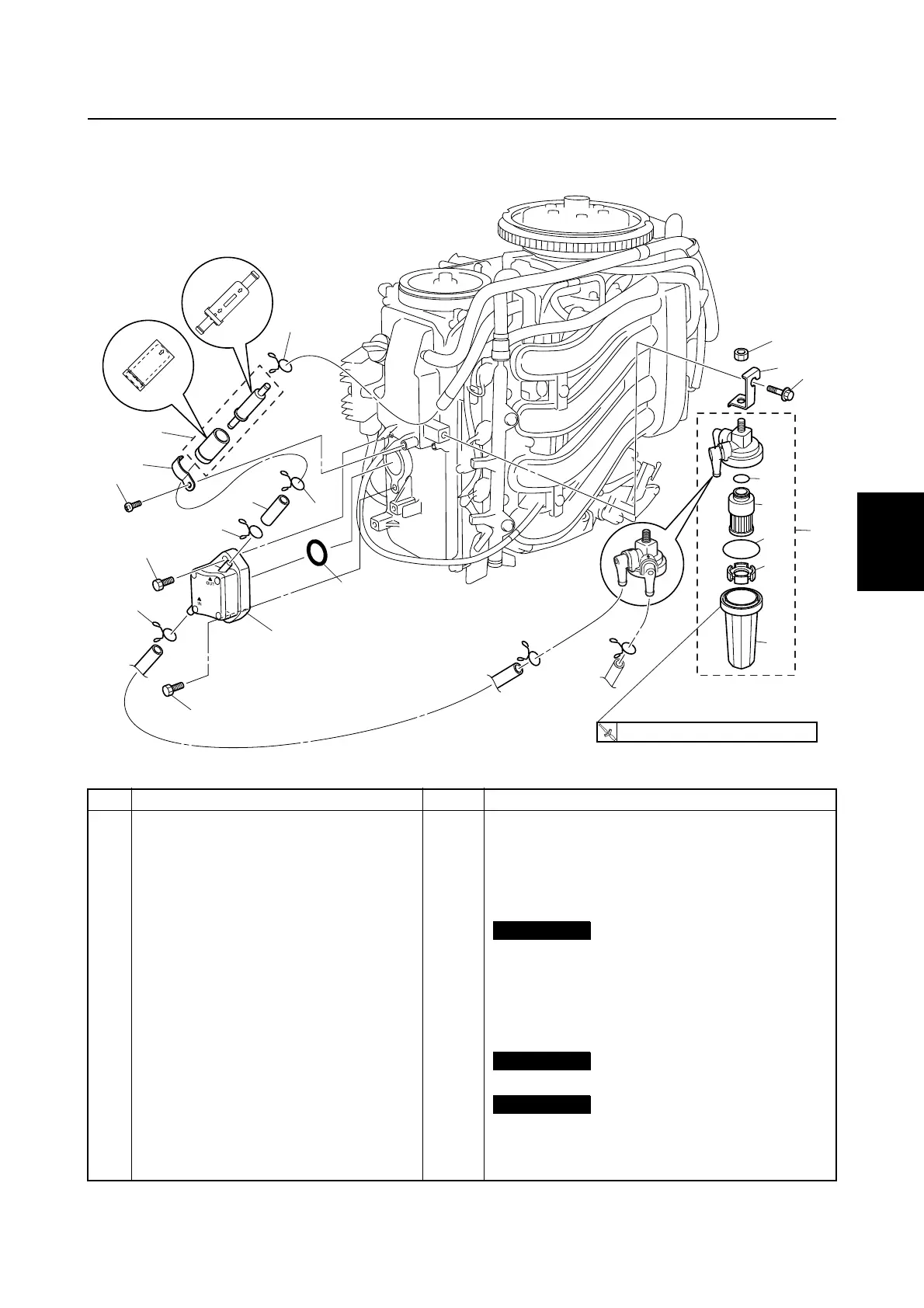

Fuel filter and fuel pump
4
No. Part name Q’ty Remarks
1 Fuel pump assembly 1
2Bolt 2 M6
×
30 mm
3 Fuel hose 1
4 Holder 1
5Strainer 1
6O-ring 1
Not reusable
7Screw 1 ø6
×
14 mm
8Bolt 1 M8
×
16 mm
9Nut 1
10 Bracket 1
11 Fuel filter assembly 1
12 O-ring 1
Not reusable
13 Fuel filter element 1
14 O-ring 1
Not reusable
15 Float 1
16 Cup 1
17 Clamp 4
S6C14320
9
10
8
11
1
6
3
2
4
5
T
R
.
3 N
·
m (0.3 kgf
·
m, 2.2 ft
·
Ib)
12
13
14
15
16
7
2
17
17
17
17
Hose routing / Fuel filter and fuel pump
