1-30
OUTBOARD MOTOR DIMENSIONS

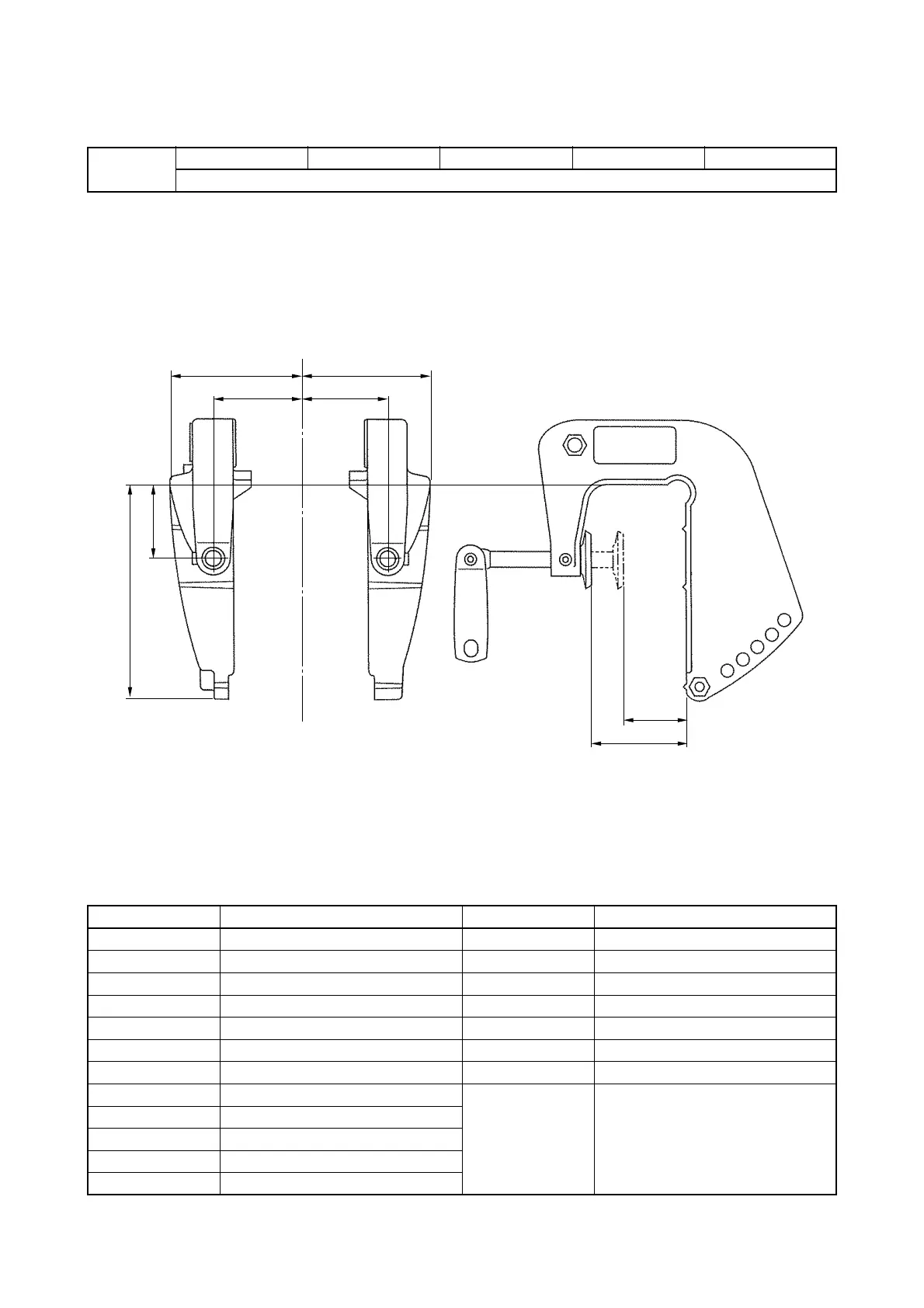

CLAMP BRACKET DIMENSIONS
Model
4AC5C5CSF4A (F4)
Manual tilt
Symbol mm (in.) Symbol mm (in.)
B1 — C1 22 (0.9)
B2 — C2 60 (2.4)
B3 — C3 —
B4 — D1 —
B5 83 (3.3) D2 —
B6 136 (5.4) D3 —
B7 — D4 —
B8 —
B9 —
B10 —
B11 55 (2.2)
B12 48 (1.9)
B12
B6
B5
C/L
B5
B11
B11
C1
C2
