1-31
OUTBOARD MOTOR DIMENSIONS

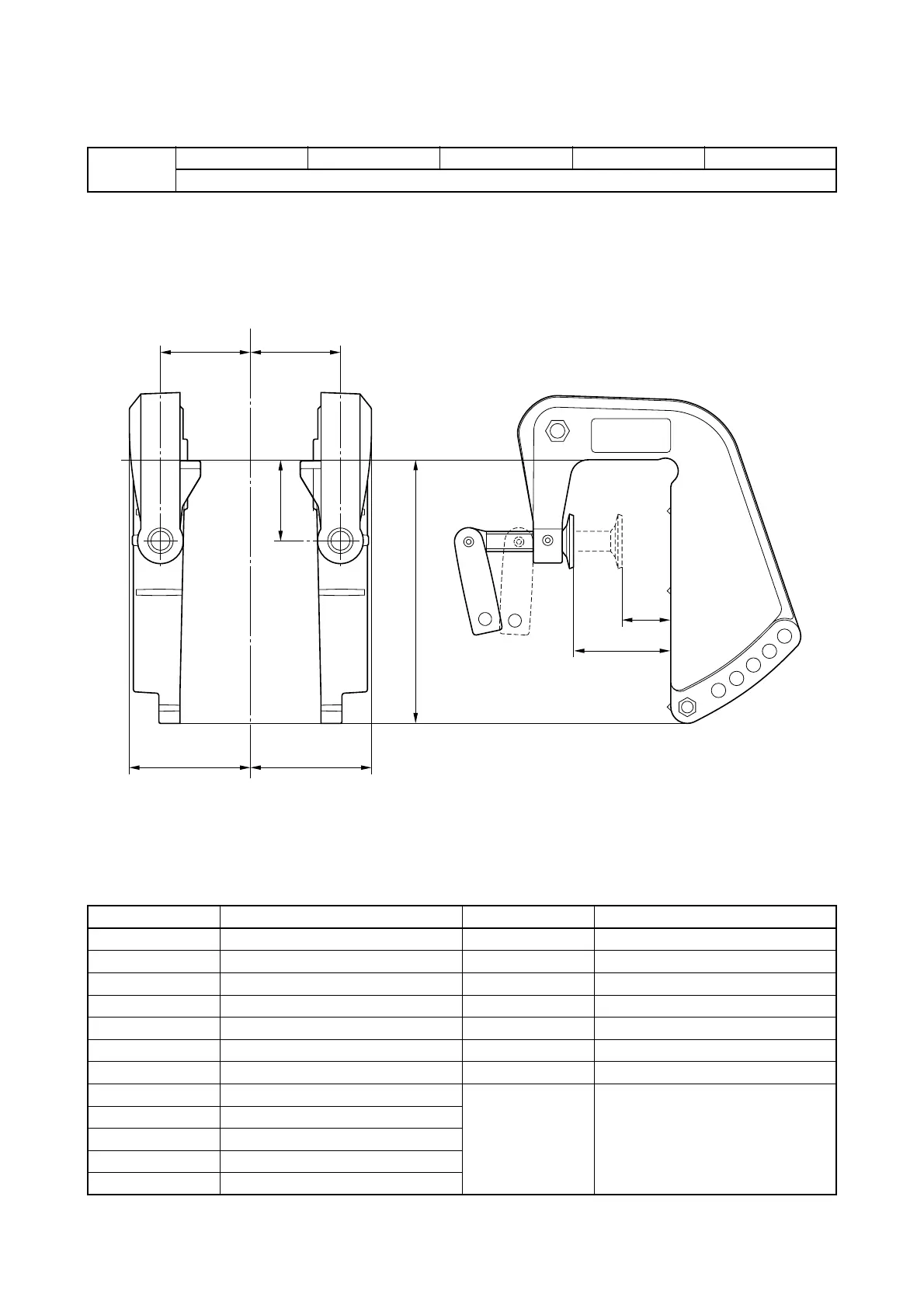

CLAMP BRACKET DIMENSIONS
Model
6C (6) 8C (8)
Manual tilt
Symbol mm (in.) Symbol mm (in.)
B1 — C1 22 (0.9)
B2 — C2 55 (2.2)
B3 — C3 —
B4 — D1 —
B5 75 (3.0) D2 —
B6 164.3 (6.5) D3 —
B7 — D4 —
B8 —
B9 —
B10 —
B11 56 (2.2)
B12 50 (2.0)
C/L
B11
B11
B5 B5
B12
B6
C1
C2
