1-32
OUTBOARD MOTOR DIMENSIONS

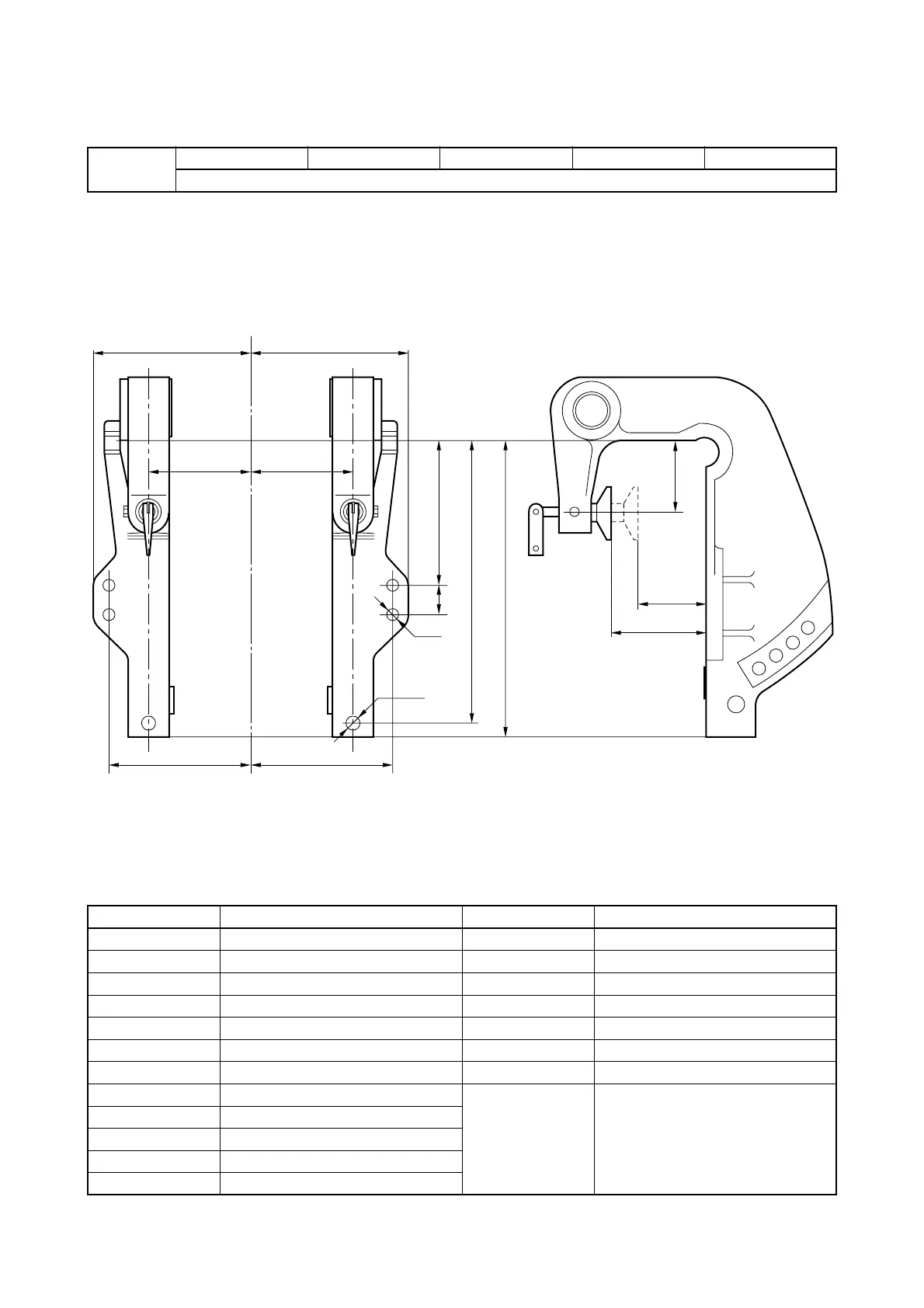

CLAMP BRACKET DIMENSIONS
Model
F6A (F6[A]) F8C (F8[C]) FT8D (T8[D])
Manual tilt
Symbol mm (in.) Symbol mm (in.)
B1 70.5 (2.8) C1 32 (1.3)
B2 180.5 (7.1) C2 65 (2.6)
B3 95.3 (3.8) C3 —
B4 94.5 (3.7) D1 8.3 (0.3)
B5 105.3 (4.2) D2 8.3 (0.3)
B6 189.5 (7.4) D3 —
B7 — D4 —
B8 —
B9 18 (0.7)
B10 —
B11 —
B12 48 (1.9)
B6
B2
B9
B4
B1 B1
B5
C/L
B5
D2
D1
B3
B3
C1
B12
C2
