OUTBOARD MOTOR DIMENSIONS

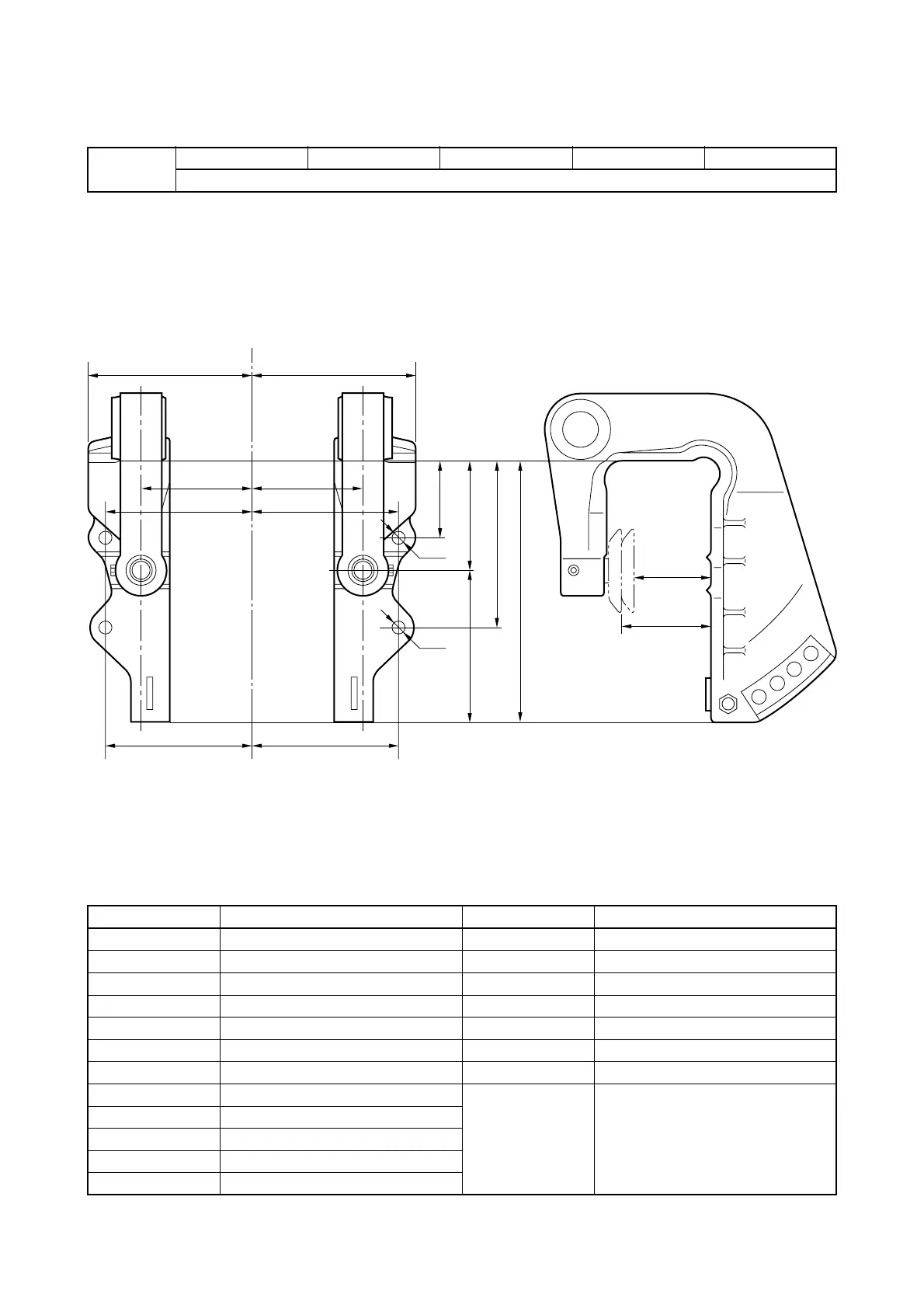

CLAMP BRACKET DIMENSIONS
Model
9.9F (9.9) 15F (15)
Manual tilt
Symbol mm (in.) Symbol mm (in.)
B1 92.5 (3.6) C1 30 (1.2)
B2 103.5 (4.1) C2 56 (2.2)
B3 92.5 (3.6) C3 —
B4 49 (1.9) D1 8.3 (0.3)
B5 102.5 (4.0) D2 8.3 (0.3)
B6 176 (6.9) D3 —
B7 — D4 —
B8 —
B9 54.5 (2.1)
B10 —
B11 70.5 (2.8)
B12 69 (2.7)
B6
B2
B9
B12
B1
B1
1
B3
B5
B1
B1
1
B3
B5
B4
C1
C2
D2
D1
C/L
