1-34
OUTBOARD MOTOR DIMENSIONS

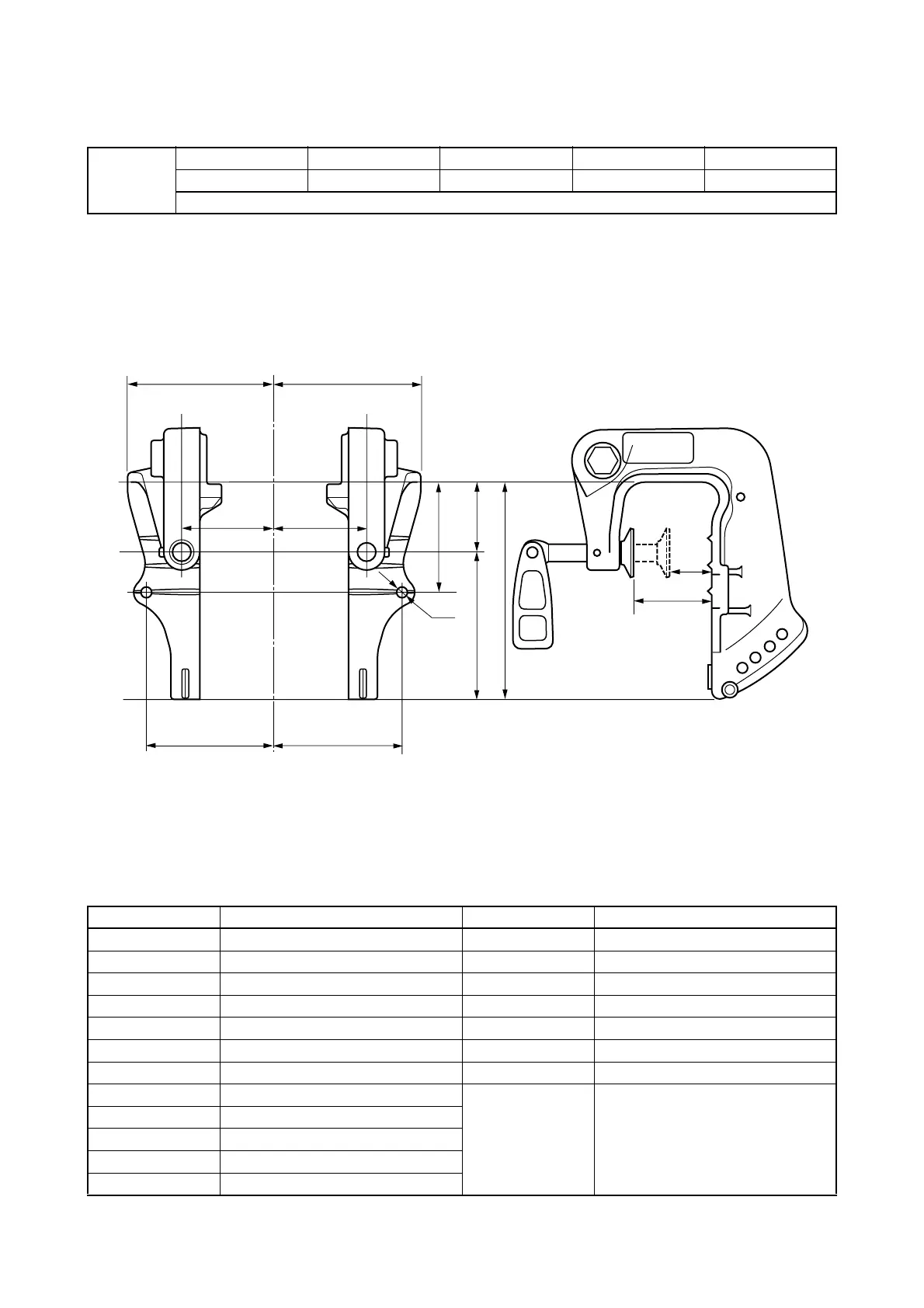

CLAMP BRACKET DIMENSIONS
Model
E9.9D E15D EK9.9D EK15D EK9.9J
EK15P
Manual tilt
Symbol mm (in.) Symbol mm (in.)
B1 92.6 (3.6) C1 30 (1.2)
B2 79 (3.1) C2 60 (2.4)
B3 — C3 —
B4 — D1 8.3 (0.32)
B5 106.3 (4.2) D2 —
B6 157 (6.2) D3 —
B7 — D4 —
B8 —
B9 107 (4.2)
B10 —
B11 67.3 (2.6)
B12 50 (2.0)
B5
C/L
B2
B11
B11
B12
B9
B1
B1
B5
D1
C3
C1
C2
B6
