1-35
OUTBOARD MOTOR DIMENSIONS

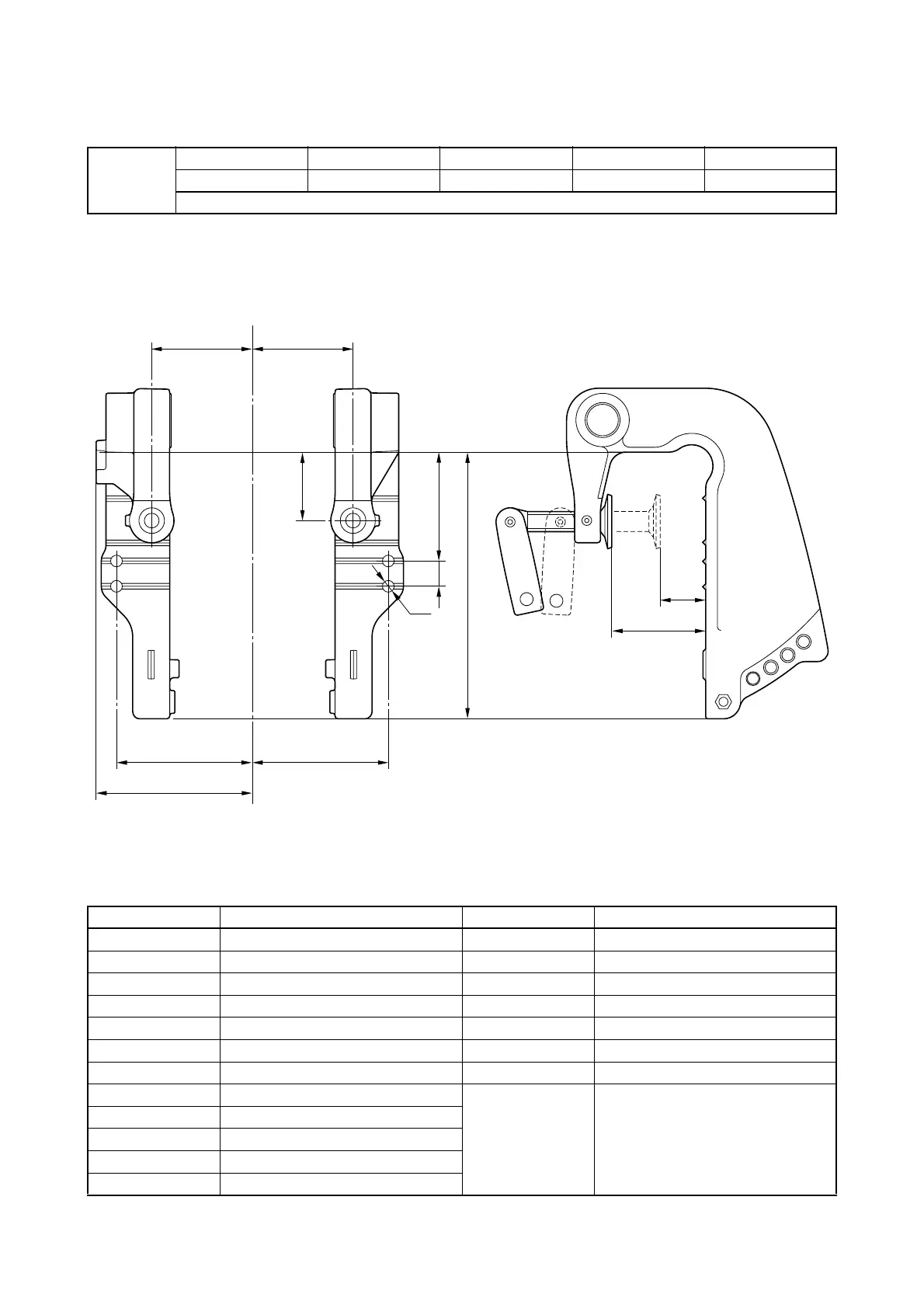

CLAMP BRACKET DIMENSIONS
Model
F9.9H F15C (F15[C]) F20B (F20) F20C F9.9F (F9.9[F])
FT9.9G (T9.9[G])
Manual tilt
Symbol mm (in.) Symbol mm (in.)
B1 — C1 32 (1.3)
B2 — C2 67 (2.6)
B3 95.3 (3.8) C3 —
B4 76.5 (3.0) D1 8.3 (0.33)
B5 110 (4.3) D2 —
B6 187.5 (7.4) D3 —
B7 — D4 —
B8 —
B9 18 (0.71)
B10 —
B11 70.5 (2.8)
B12 48 (1.9)
C/L
B3
B11
B6
B4
B12
B5
B3
B11
B9
C1
C2
D1
