Yamaha F60F - 6 Y8 Multifunction Display Details

Instruments and indicators
36
6Y8 Multifunction speed & fuel meter
TIP:
The information displayed on the multifunc-
tion display can be changed. For information
on other settings or changing the displayed
information, see the operation manual in-
cluded with the 6Y8 Multifunction meter.
This manual mainly covers the alert display
of the 6Y8 Multifunction tachometer. See the
following sections for information about the
alert indicators.
Indicators
Yamaha Security System indicator (op-
tional)
This indicator appears, when the Yamaha
Security System is in lock mode.

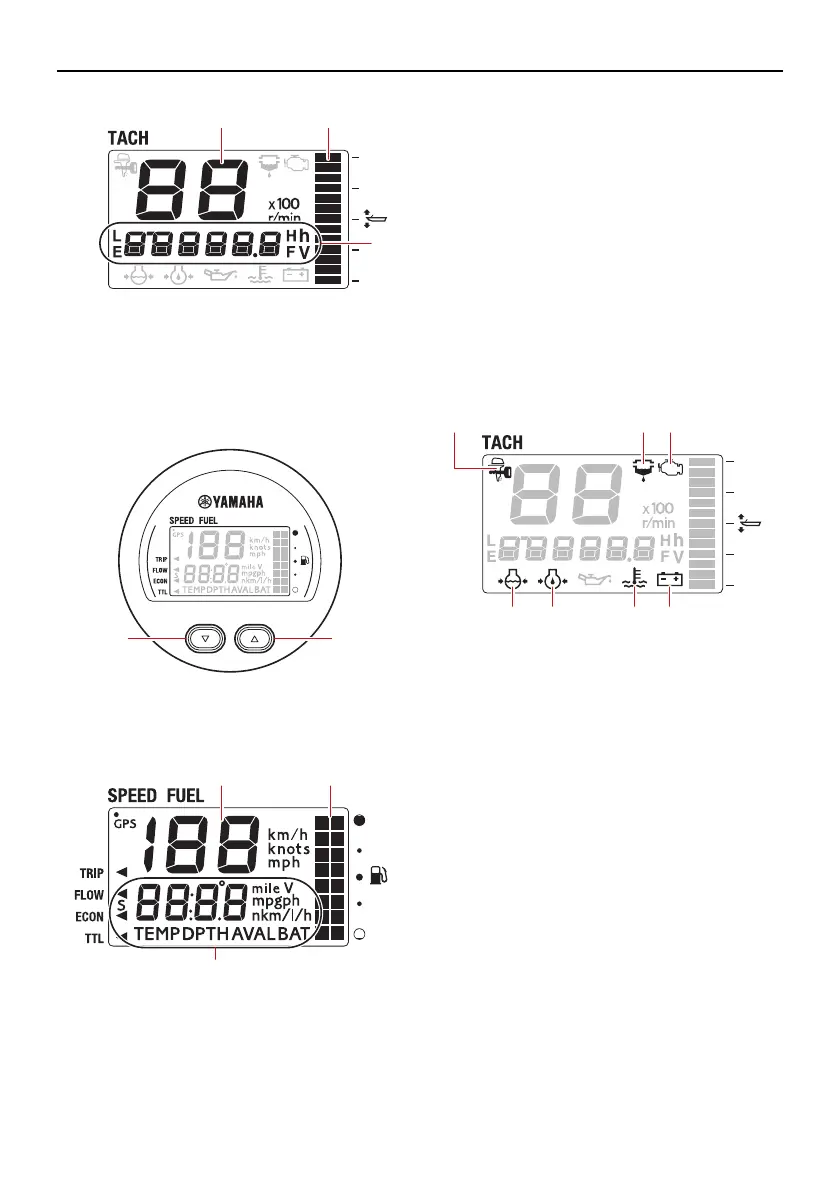

1. Tachometer
2. Trim meter
3. Multifunction display
1. Set button
2. Mode button
1. Speedometer
2. Fuel meter
3. Multifunction display
1 2
3
ZMU08408
SET MODE
21
ZMU08409
1
3
2
ZMU08410
1. Yamaha Security System indicator (optional)
2. Water separator-alert indicator
3. Engine trouble-alert indicator
4. Battery voltage indicator
5. Overheat-alert indicator
6. Low oil pressure-alert indicator
7. Cooling water pressure indicator (optional)
1
7 6 5 4
2 3
ZMU08411
