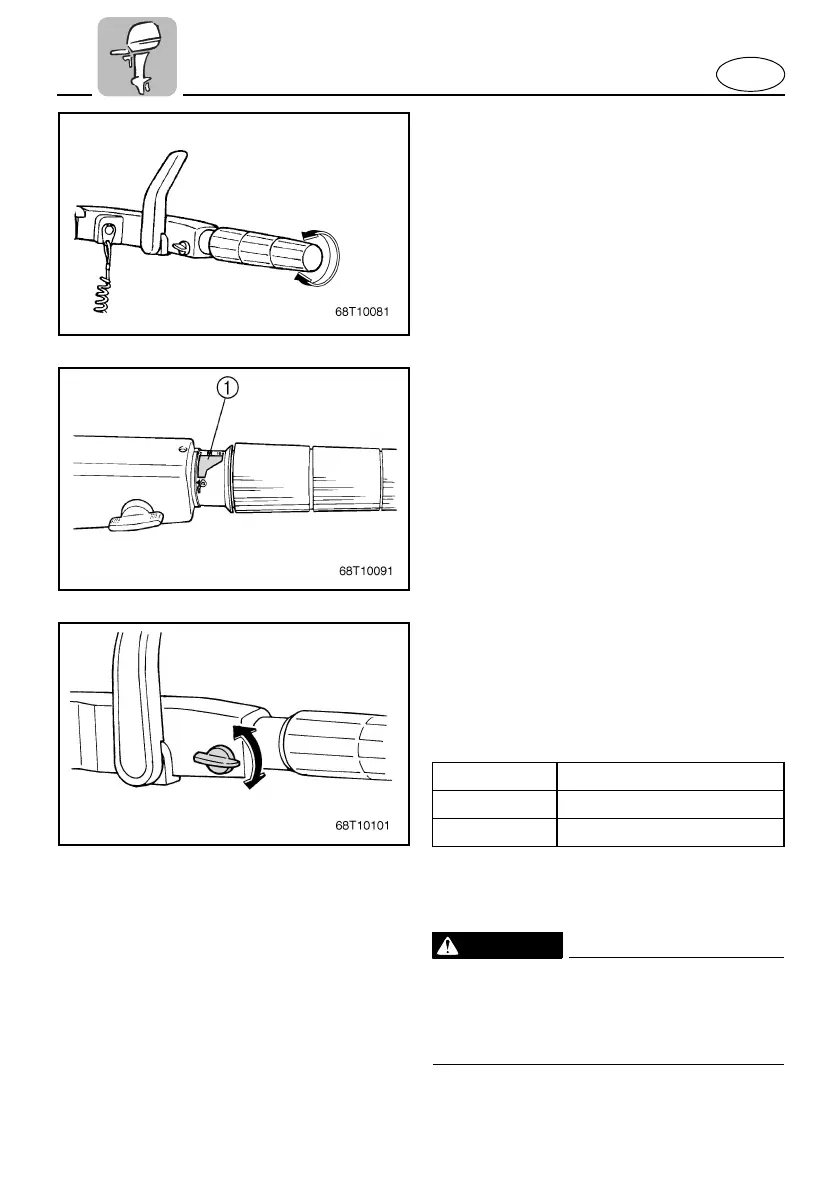

Throttle control grip
The throttle control grip is on the tiller han-
dle. Turn the grip counterclockwise to
increase speed and clockwise to decrease
speed.
EMU00082
Throttle Indicator
The fuel consumption curve on the throttle
indicator shows the relative amount of fuel
consumed for each throttle position. Choose
the setting that offers the best performance
and fuel economy for the desired operation.
1
Throttle indicator
EMU01157
Throttle Friction Adjusting Knob
A friction device in the tiller handle provides
adjustable resistance to movement of the
throttle grip, and can be set according to
operator preference.
When constant speed is desired, tighten the
adjusting knob to maintain the desired throt-
tle setting.
WARNING
@
Do not overtighten the friction adjusting
knob. If there is too much resistance, it
may be difficult to move the throttle grip,
which could result in an accident.
@
Resistance Knob
Increase Turn clockwise
Decrease Turn counterclockwise
