Yamaha F6AMH Rigging Guide

6-5
OPTIONAL EQUIPMENTS

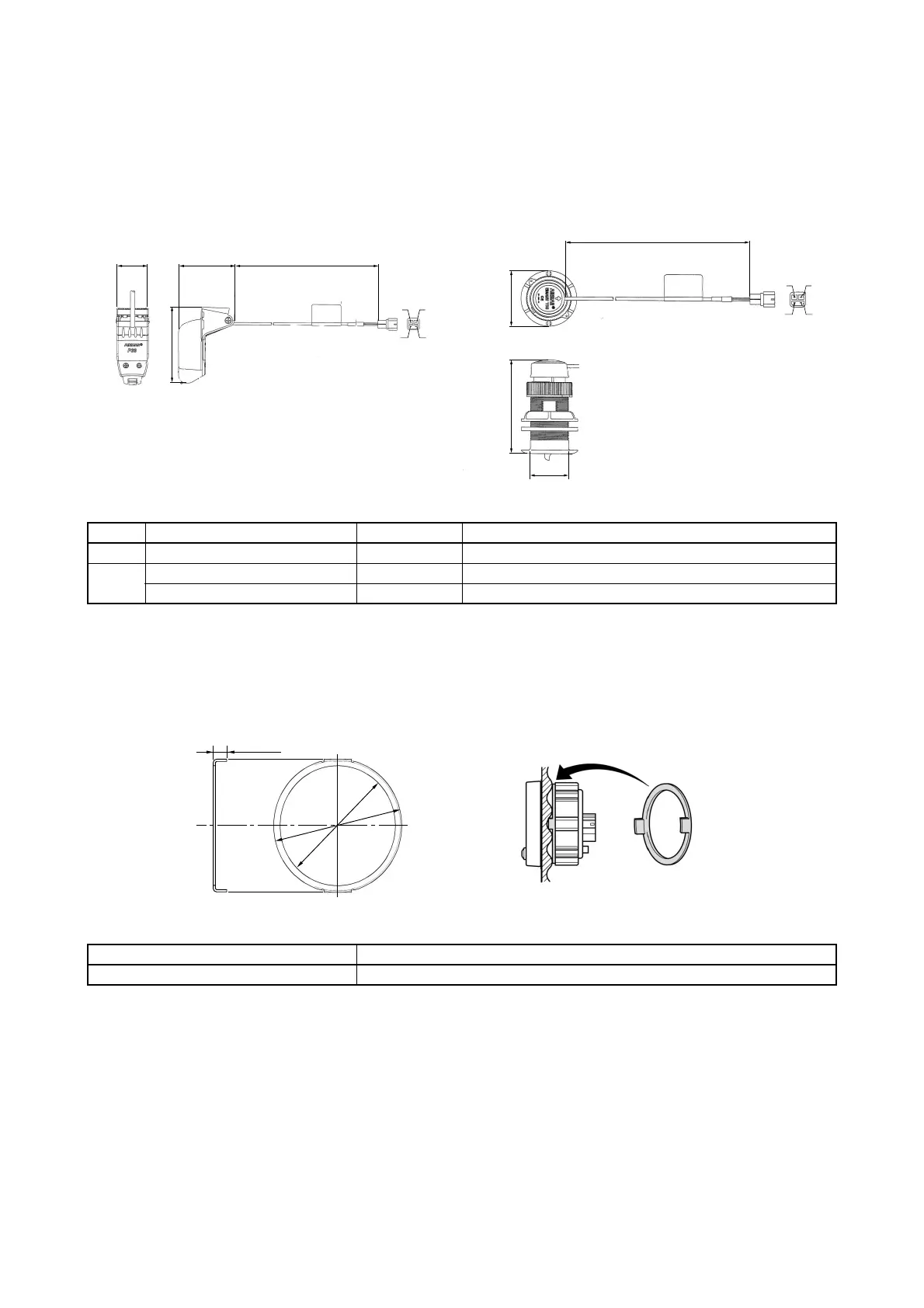

MULTI-SENSOR APPLICATION
Boat speed, water depth and water surface temperature can be obtained.
For installation, see the instruction which is accompanied with the sensor.
FITTING PLATE
If the fitting surface is rough, insert the plate between a board and the ring nut of gauge.
Ref. No. Part name Part No. Remarks
1 Transom multi-sensor 6Y8-83688-01
2
Thru-hull multi-sensor 1 6Y8-83688-11 Plastic body
Thru-hull multi-sensor 2 6Y8-83688-20 Bronze body
Part No. Remarks
6Y8-83514-00
96 (3.78)
130 (5.12)
4900 (16 ft)
52 (2.05)
B
R
L
W
50.8 (2)
125 (4.92)
3050 (10 ft)
B
R
L
W
75 (2.95)
12
mm (in.)mm (in.)
95 (3.74)
t = 1.5 (0.06)
85.5 (3.37)
20 (0.79)
mm (in.)

Yamaha F6AMH Specifications

General

Starting System	Manual
Gear Ratio	2.08:1
Lubrication System	Wet sump
Fuel Induction System	Carburetor
Ignition / Advance System	CDI
Max Output	6 hp
Max. output at prop shaft	6 hp
Full Throttle Operating Range	5, 000 - 6, 000 rpm
Gear Shift	F-N
Engine Type	4-stroke
