INSTRUMENT AND CONTROL FUNCTIONS
3-14
3
EAU32980

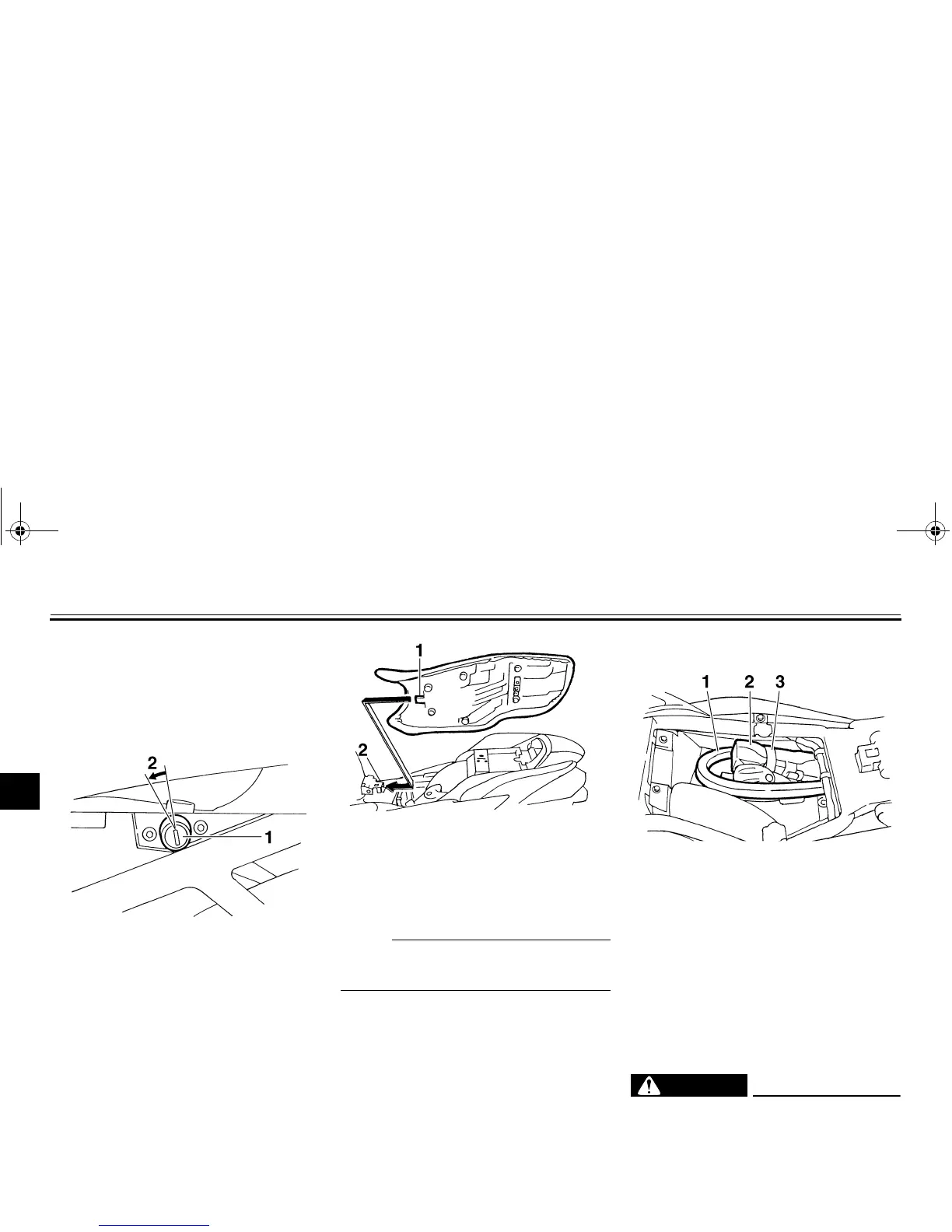

Seat
To remove the seat
1. Insert the key into the seat lock,
and then turn it counterclockwise.
2. While holding the key in that posi-
tion, lift the rear of the seat up, and
then pull the seat off.
To install the seat
1. Insert the projection on the front of
the seat into the seat holder as
shown.
2. Push the rear of the seat down to
lock it in place.
3. Remove the key.
NOTE:
Make sure that the seat is properly se-
cured before riding.
EAU14421
Storage compartment
This storage compartment is designed
to hold a genuine Yamaha U-LOCK.
(Other locks may not fit.) When placing
a U-LOCK in the storage compartment,
securely fasten it with the straps. When
the U-LOCK is not in the storage com-
partment, be sure to secure the straps
to prevent losing them.
WARNING
EWA10961
Do not exceed the load limit of 3
kg (7 lb) for the storage com-
partment.
1. Seat lock
2. Unlock.
1. Projection
2. Seat holder
1. U-LOCK bar (optional)
2. Lock of U-LOCK (optional)
3. Strap
5VXE1.book Page 14 Monday, February 9, 2004 5:39 PM
