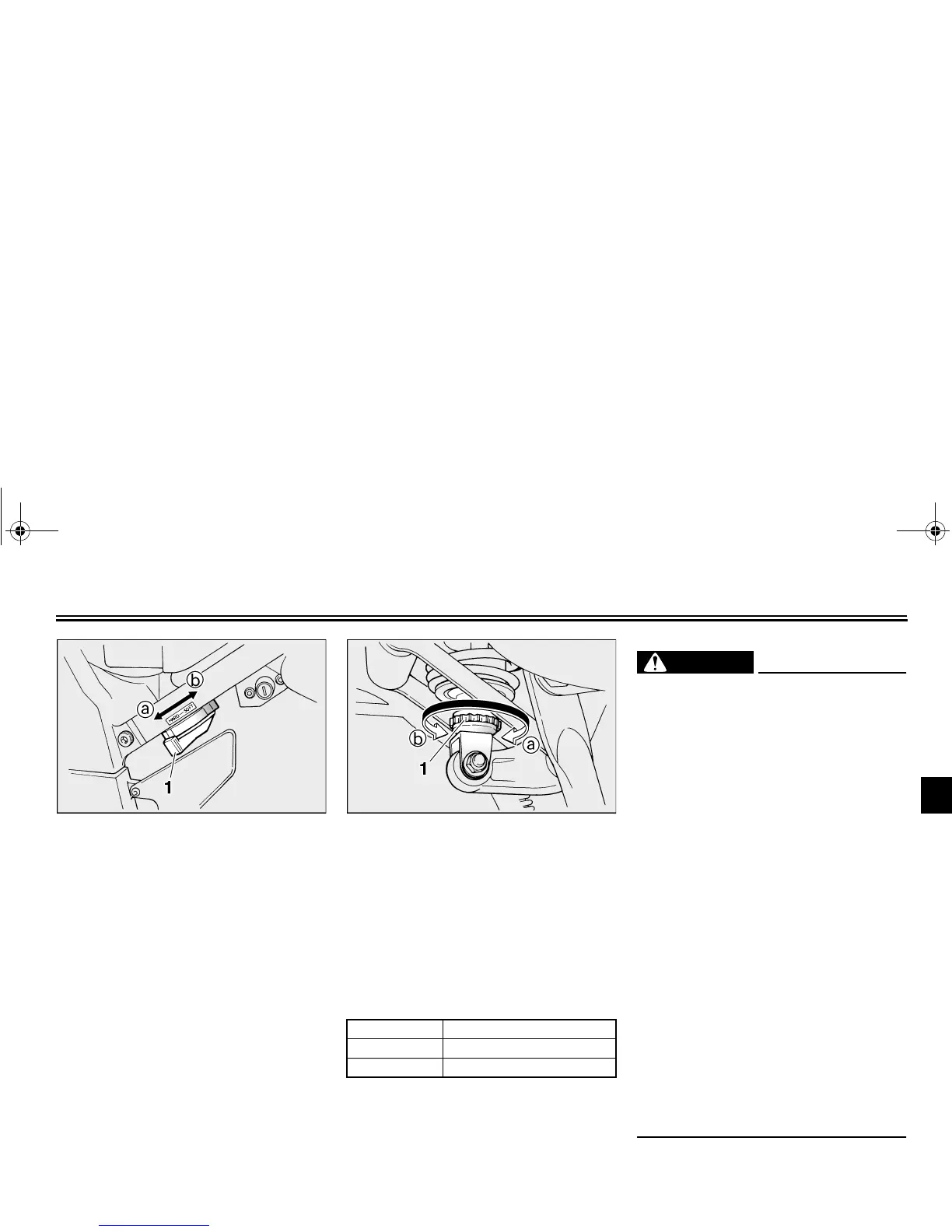

INSTRUMENT AND CONTROL FUNCTIONS
3-22
3
Spring preload
For riding solo, move the spring pre-
load adjusting lever to SOFT. For
riding with a passenger, move the
spring preload adjusting lever to
HARD.
Rebound damping force
To increase the rebound damping
force and thereby harden the rebound
damping, turn the adjusting knob in di-
rection
a
. To decrease the rebound
damping force and thereby soften the
rebound damping, turn the adjusting
knob in direction
b
.
CI-09E
EAU00315
WARNING
_
This shock absorber contains high-
ly pressurized nitrogen gas. For
proper handling, read and under-
stand the following information be-
fore handling the shock absorber.
The manufacturer cannot be held re-
sponsible for property damage or
personal injury that may result from
improper handling.
Do not tamper with or attempt to
open the gas cylinder.
Do not subject the shock ab-
sorber to an open flame or other
high heat sources, otherwise it
may explode due to excessive
gas pressure.
Do not deform or damage the
gas cylinder in any way, as this
will result in poor damping per-
formance.
Always have a Yamaha dealer
service the shock absorber.
_
1. Spring preload adjusting lever
a. HARD
b. SOFT
1. Rebound damping force adjusting knob
Minimum (soft) 20 clicks in direction
b
*
Standard 10 clicks in direction
b
*
Maximum (hard) 3 clicks in direction
b
*
* With the adjusting knob fully turned in direction
a
