2-3
E

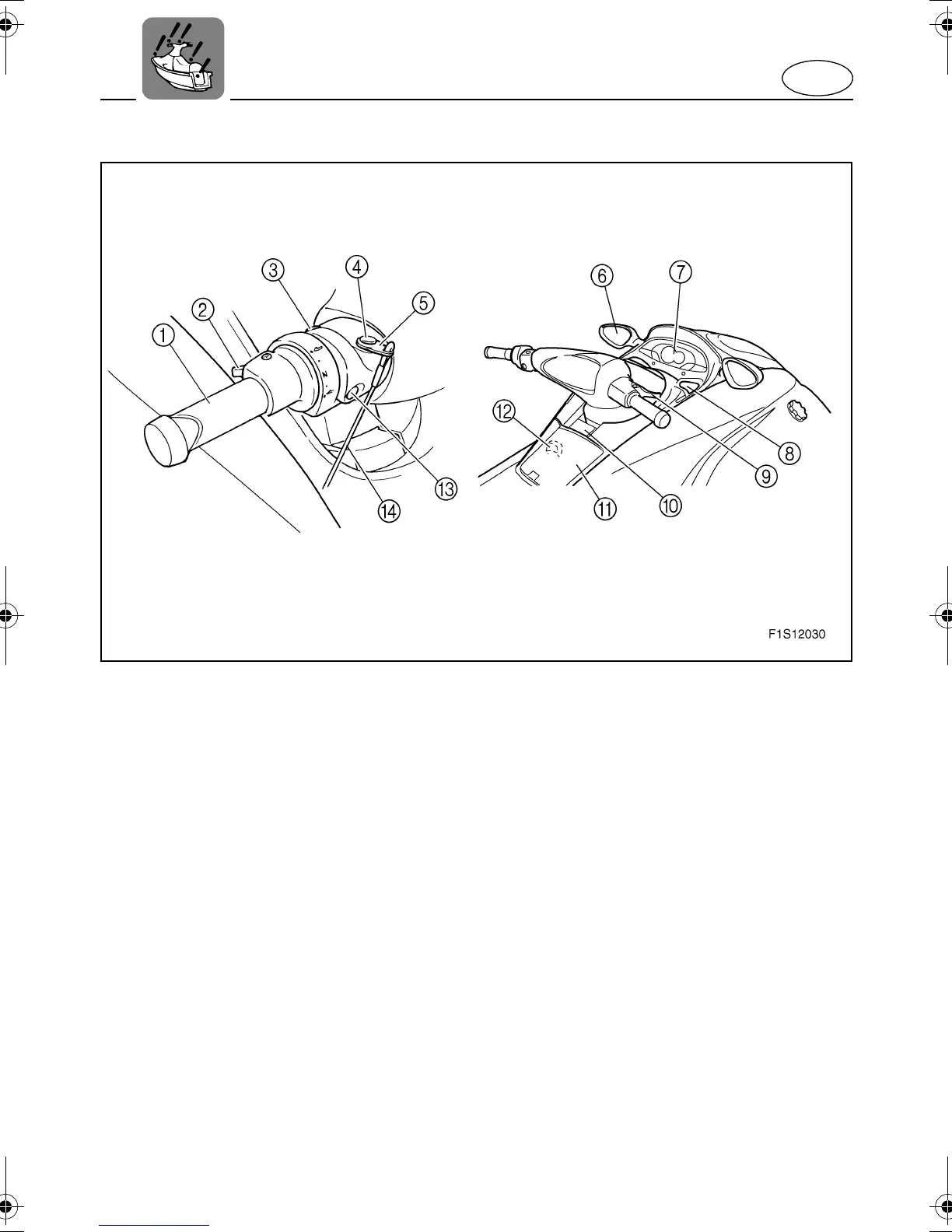

1
Quick Shift Trim System (QSTS) selector
Use to select the trim angle of the watercraft.
2
QSTS shift lock lever
3
Start switch
Push to start the engine.
4
Engine shut-off switch
Remove the clip to stop the engine and dis-
able it from starting.
5
Clip
Insert into the engine shut-off switch to enable
starting of the engine.
Remove to stop the engine or prevent acci-
dental starting of the engine or unauthorized
use of the watercraft.
6
Rearview mirrors
7
Multifunction meter
Use to check watercraft operation.
8
Shift lever
Use to put the watercraft into forward or
reverse.
9
Throttle lever
Use to accelerate and decelerate.
0
Tilt lever
Use to adjust the tilt of the handlebars.
A
Glove compartment
B
Remote controll transmitter
C
Engine stop switch
Push to stop the engine normally.
D
Engine shut-off cord (lanyard)
Attach to wrist so that the engine stops if the
operator falls off the watercraft.
UF1S11.book Page 3 Monday, August 2, 2004 3:06 PM
